REVISION F
2 MAX SWAY
(EITHER DIRECTION)
.005[0.13] MAX BURR
C
L
.025 0.64 SQ
REF (TYP)
IPT1-1XX-XX-XX-D-DH-A-XXX
No OF POS PER ROW
-04 THRU -25
OPTIONS
-POL: POSITION #1 REMOVED
(USE IPT1-XX-DH-P)
-TR: TAPE AND REEL PACKAGING
LEAD STYLE
-01
PLATING SPECIFICATION
-T: TIN (USE T-1S6-08-T-2 & T-1S6-09-T-2)
-S: SELECTIVE GOLD (USE T-1S6-08-S-2 &
T-1S6-09-S-2)
-TM: MATTE TIN TAIL (USE T-1S6-08-T-2 &
T-1S6-09-T-2)
-SM: SELECTIVE GOLD, MATTE TIN TAIL
(USE T-1S6-08-S-2 & T-1S6-09-S-2)
-L: LIGHT SELECTIVE GOLD, MATTE TIN TAIL
(USE T-1S6-08-L-2 & T-1S6-09-L-2)
ALIGNMENT PINS
TAIL OPTION
-DH: DOUBLE HORIZONTAL
ROW SPECIFICATION
-D: DOUBLE (USE IPT1-XX-DH-A)
DO NOT
SCALE FROM
THIS PRINT
.270 6.86
REF
(No OF POS x .100[2.54]) + .020[0.51] REF
(No OF POS -1) x .100[2.54]
.060 1.52
02
.155 3.94
REF
.126 3.21
REF
T-1S6-09-XX-2
T-1S6-08-XX-2
C
L
SEE NOTE 8
"A"
C
.200 5.08
L
REF
.100 2.54
01
C1
0
3
"A"
IPT1-XX-DH-A
(No OF POS -2) x .1000[2.540]
.0575 1.46 REF
.040 1.02 REF
.055 1.40
REF
.006[0.15]
(SEE FIG. 2, SHEET 2)
.063 1.59 REF
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. NOTE DELETED
3. MINIMUM TERMINALT PUSH OUT FORCE: 2 lbs.
4. MAXIMUM VARIATION BETWEEN PIN ROWS: .005[.13].
5. NOTE DELETED
6. ALL DIMENSIONS TO BE ABOUT CENTERLINE WITHIN +/-.005[.13].
7. NOTE DELETED.
8. PINS TO BE FLUSH TO .010[0.25] BELOW TOP OF SHROUD.
9. SHEAR TAILS TO DIMENSION SHOWN.

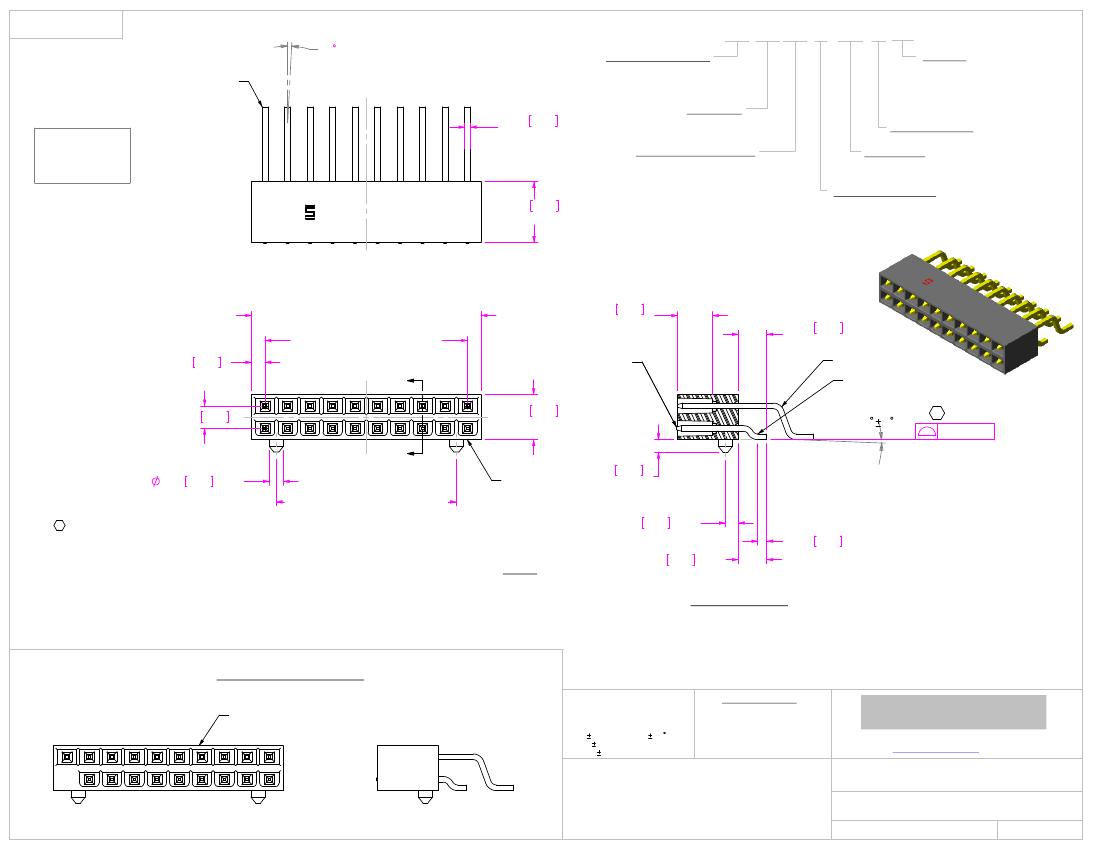

FIG. 1
IPT1-110-01-XX-D-DH-A SHOWN
.126 3.21 REF
SECTION "A"-"A"
-POL: POLARIZED OPTION
IPT1-110-01-X-D-DH-A-POL SHOWN
IPT1-XX-DH-P
02
20
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
ANGLES
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
S A M TE C
52 0 P A R K E A S T B L V D , N EW A L B A N Y , IN 4 71 5 0
P H O N E : 8 1 2 .9 4 4 .6 73 3
F A X : 8 1 2. 94 8 .5 0 4 7
.XX: .01[.3]
.XXX: .005[.13]
.XXXX: .0020[.051]
MATERIAL:
2
e-M ail :
IN F O @ SA M TE C.CO M
CO D E : 553 22
DO NOT SCALE DRAWING
SHEET SCALE: 2.25:1
DESCRIPTION:
01
19
INSULATOR: VECTRA E130i, COLOR: BLACK
TERMINAL: PHOS BRONZE, 510, 3/4 HARD
.100 DOUBLE ROW, HORIZONTAL SHROUDED TERMINAL ASSM
DWG. NO.
IPT1-1XX-XX-XX-D-DH-A-XXX
F:\ DWG\ MISC\ Mktg \ IPT1-1XX-XX-XX-D-DH-A-XXX-MKT.SLDDRW
BY:
BRATCHER 11/15/02
SHEET
1
OF
2
REVISION F
IN-PROCESS 1
T-1S6-08-XX-2
C2
C3
.260 6.60
SQUARE EDGE
FLUSH TO .000
.003[0.08]
.002[.05]
IN-PROCESS 2
T-1S6-08-XX-2
.140
- .010
3.56
- 0.25
(SEE NOTE 9)
+.000
0.00
C4
C5
IN-PROCESS 3
T-1S6-09-XX-2
.460 11.68
.003[.08]
.001[.03]
0
3
SQUARE EDGE
FLUSH TO .000
.006[0.15]
T-1S6-08-XX-2
.040 1.02 REF
.126 3.21
REF

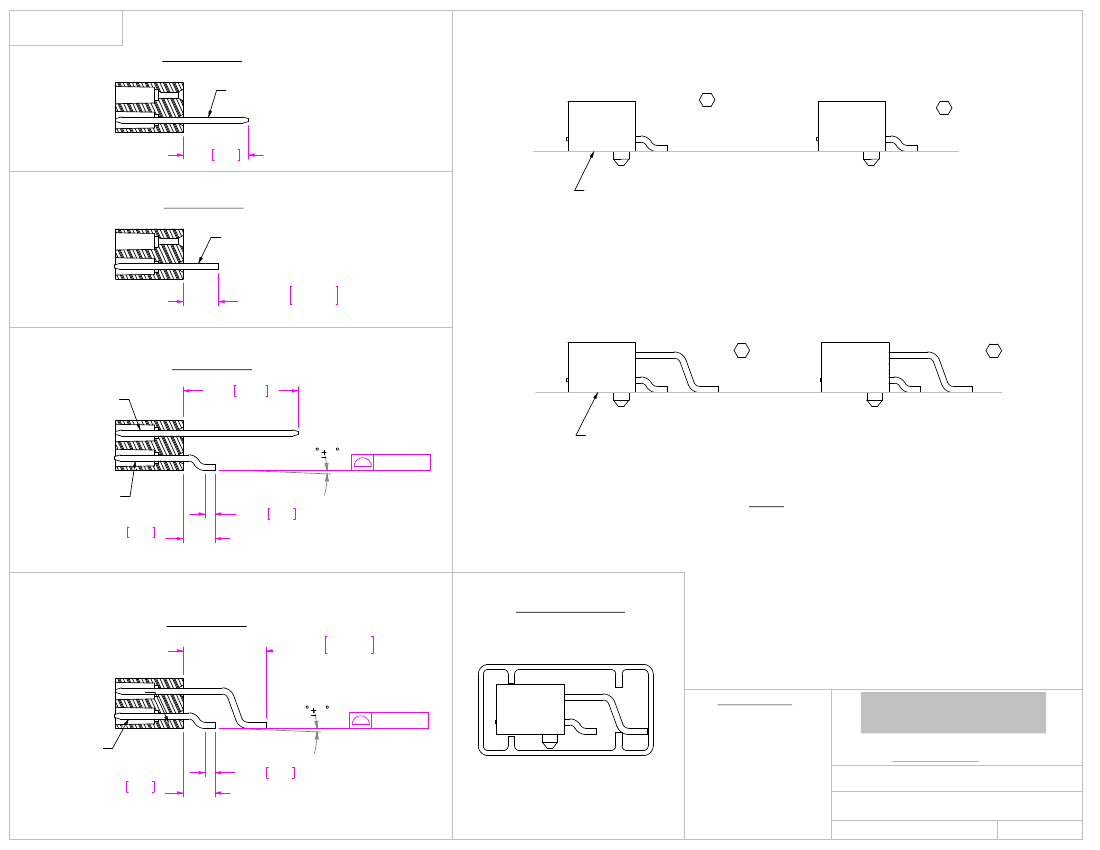

FIG. 2
-DH: SURFACE MOUNT DIAGRAM
PACKAGING VIEW
IN-PROCESS 4
.332
- .010
8.44
- 0.25
(SEE NOTE 9)
F:\ DWG\ MISC\ Mktg \ IPT1-1XX-XX-XX-D-DH-A-XXX-MKT.SLDDRW
+.000
0.00
(PARTS TO HAVE POSITION #1 LOADED IN
SAME DIRECTION AS ARROW ON TUBE)
T-1S6-09-XX-2
PROPRIETARY NOTE
0
T-1S6-08-XX-2
3
.006[0.15]
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
S A MTEC
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812.944.6733
FAX: 812.948.5047
e-Mail:
INFO@SAMTEC.COM
DESCRIPTION:
CODE: 55322
.040 1.02 REF
.126 3.21
REF
TUBE: PT-1-24-15-29
PLUG: TP-07
DO NOT SCALE DRAWING
.100 DOUBLE ROW, HORIZONTAL SHROUDED TERMINAL ASSM
DWG. NO.
SHEET SCALE: 2.5:1
IPT1-1XX-XX-XX-D-DH-A-XXX
BY:
BRATCHER 11/15/02
SHEET
2
OF
2
