BK20104L102-T: DescriptionFerrite Chip, 1 Function(s), EIA STD PACKAGE SIZE 0804, 8 PIN; CategoryAnalog mixed-signal IC filter; File Size533KB，2 Pages; ManufacturerTaiyo Yuden; Environmental Compliance

Download Datasheet Parametric Compare View All

BK20104L102-T Overview

Ferrite Chip, 1 Function(s), EIA STD PACKAGE SIZE 0804, 8 PIN

BK20104L102-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	EIA STD PACKAGE SIZE 0804, 8 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
filter type	FERRITE CHIP
high	0.45 mm
length	2 mm
Manufacturer's serial number	BK
Installation type	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output impedance	1000 OHM Ω
method of packing	TAPE AND REEL
physical size	L2.0XB1.0XH0.45 (mm)/L0.079XB0.039XH0.018 (inch)
width	1 mm
Base Number Matches	1

Preview

Download Datasheet

View All

積層ハイロスインダクタアレイ

MULTILAYER FERRITE CHIP BEAD ARRAY

BK ARRAY SERIES

OPERATING TEMP.

−55∼＋125℃

特長 FEATURES

・周波数特性、インピーダンス値を幅広いバリエーションで用意しているため、

各種ノイズを対策可½

・

1チップで4ラインの対策が可½になり、より高密度、高効率な実装を実現

・

各回路間のクロストークや、チップの発熱を極力抑制

・Available

in a wide range of frequency characteristics and impedance

values providing excellent suppression of various noise.

・4

line action in one chip is available for mounting with higher density and

efﬁciency.

・Heat

generation and crosstalk between adjacent circuits is minimized.

用途 APPLICATIONS

・ノートパ½コン、液晶モジュール等、小½½量の携帯機器に於ける発生源対

策輻射ノイズ対策

・

インター

フェイス、ハーネス接続部での輻射ノイズ対策

・Radiated

noise suppression in note-PC, LCD module and other portable

equipment.

・Radiated

noise suppression in interfaces and harness connecting parts.

½名表記法 ORDERING

CODE

1

½式

BK

積層ハイロスインダクタ

材質記号

4W

4S

4M

4L

材質によりインピー

ダンス特性が異なる

3

4

公称インピーダンス

[Ω]

例

601

102

600

1000

5

包装

−T

リールテーピング

6

½社管理記号

△ 標準品

△＝スペース

2

½状寸法

（L×W）

〔mm〕

2010

（0804）

3216

（1206）

2.0×1.0

3.2×1.6

B K 3 2 1 6 4 S 6 0 1 _

1

T

○

5

6

Internal code

2

3

4

1

Type

BK

Multilayer ferrite chip beads

3

Material

4W

4S

4M

4L

Refer to impedance

curves for material

difference

4

Nominal Impedance [Ω]

example

601

102

600

1000

5

Packaging

−T

Tape&Reel

△

Standard Products

△＝Blank

Space

2

External Dimension

（L×W）

[mm]

2010

（0804）

3216

（1206）

2.0×1.0

3.2×1.6

232

8

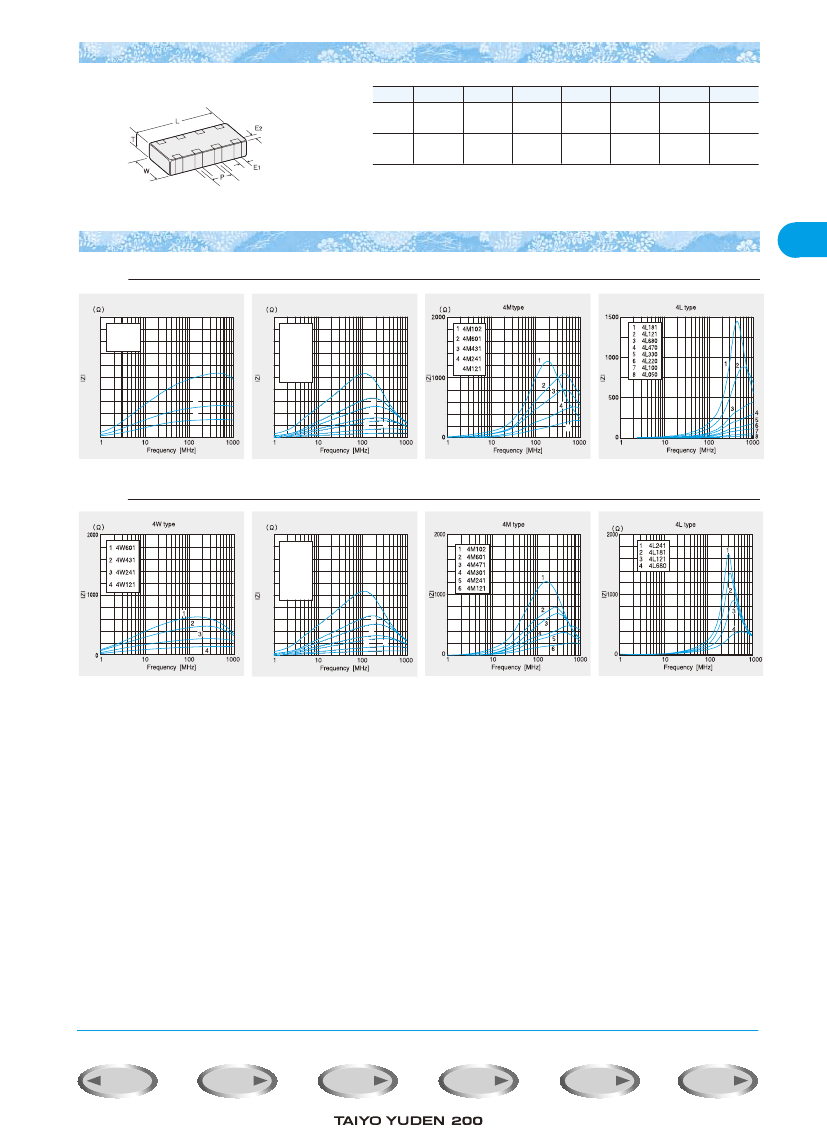

BK20104L102-T Related Products

	BK20104L102-T	BK32164W102-T	BK20104L601-T	BK20104S102-T	BK20104W102-T	BK20104W601-T	BK32164L601-T
Description	Ferrite Chip, 1 Function(s), EIA STD PACKAGE SIZE 0804, 8 PIN	Ferrite Chip, 1 Function(s), EIA STD PACKAGE SIZE 1206, 8 PIN	Ferrite Chip, 1 Function(s), EIA STD PACKAGE SIZE 0804, 8 PIN	Ferrite Chip, 1 Function(s), EIA STD PACKAGE SIZE 0804, 8 PIN	Ferrite Chip, 1 Function(s), EIA STD PACKAGE SIZE 0804, 8 PIN	Ferrite Chip, 1 Function(s), EIA STD PACKAGE SIZE 0804, 8 PIN	Ferrite Chip, 1 Function(s), EIA STD PACKAGE SIZE 1206, 8 PIN
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	EIA STD PACKAGE SIZE 0804, 8 PIN	EIA STD PACKAGE SIZE 1206, 8 PIN	EIA STD PACKAGE SIZE 0804, 8 PIN	EIA STD PACKAGE SIZE 0804, 8 PIN	EIA STD PACKAGE SIZE 0804, 8 PIN	EIA STD PACKAGE SIZE 0804, 8 PIN	EIA STD PACKAGE SIZE 1206, 8 PIN
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
filter type	FERRITE CHIP	FERRITE CHIP	FERRITE CHIP	FERRITE CHIP	FERRITE CHIP	FERRITE CHIP	FERRITE CHIP
Manufacturer's serial number	BK	BK	BK	BK	BK	BK	BK
Installation type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	1	1	1	1
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output impedance	1000 OHM Ω	1000 OHM Ω	600 OHM Ω	1000 OHM Ω	1000 OHM Ω	600 OHM Ω	600 OHM Ω
method of packing	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
high	0.45 mm	0.8 mm	0.45 mm	0.45 mm	0.45 mm	0.45 mm	-
length	2 mm	3.2 mm	2 mm	2 mm	2 mm	2 mm	-
physical size	L2.0XB1.0XH0.45 (mm)/L0.079XB0.039XH0.018 (inch)	L3.2XB1.6XH0.8 (mm)/L0.126XB0.063XH0.031 (inch)	L2.0XB1.0XH0.45 (mm)/L0.079XB0.039XH0.018 (inch)	L2.0XB1.0XH0.45 (mm)/L0.079XB0.039XH0.018 (inch)	L2.0XB1.0XH0.45 (mm)/L0.079XB0.039XH0.018 (inch)	L2.0XB1.0XH0.45 (mm)/L0.079XB0.039XH0.018 (inch)	-
width	1 mm	1.6 mm	1 mm	1 mm	1 mm	1 mm	-
Base Number Matches	1	1	1	1	1	1	-
