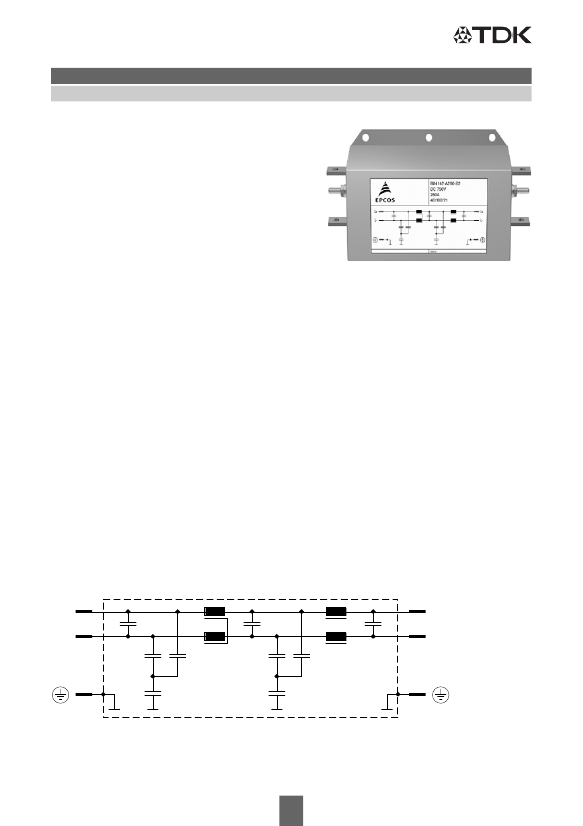

2-line filters
for converters in traction systems
Power line filters for DC systems
Rated voltage 750 to 2000 V DC
Rated current 250 to 1000 A
Construction
■
2-line filters
■
Metal case
B84142A*S002 … S018
Features
■
Easy to install
■
Space-saving design
■
Optimized for long motor cables
and operation under full load
■
Design based on
EN 133 200, UL 1283, CSA C22.2 No.8
Applications
■
Trams, light rails
■
Subways
Terminals
■
Busbars, tin-plated
Marking
Marking on component:
Manufacturer’s logo, ordering code,
rated voltage, rated current, rated temperature,
climatic category, date code
Minimum marking on packaging:
Manufacturer’s logo, ordering code
Typical circuit diagram
L+
L
_
LINE
L+’
L
_
’
LOAD
Traction side
Converter
SSB1309-8-E
Please read
Cautions and warnings
and
Important notes
at the end of this document.
2
01/06
2-line filters
for converters in traction systems
Technical data and measuring conditions
Rated voltage V
R
Type S002: 750 V DC
Type S003: 1000 V DC
Type S018: 2000 V DC
B84142A*S002 … S018
Rated current I
R
Test voltage V
test
Referred to 60
°C
ambient temperature
Type S002: 2000 V DC, 60 s (L+/L–)
4900 V DC, 60 s (L+ || L–/case)
6000 V DC, 2 s (L+ || L–/case)
Type S003: 2500 V DC, 60 s (L+/L–)
4900 V DC, 60 s (L+ || L–/case)
6000 V DC, 2 s (L+ || L–/case)
Type S018: 4000 V DC, 60 s (L+/L–)
4900 V DC, 60 s (L+ || L–/case)
6000 V DC, 2 s (L+ || L–/case)
Overload capability (thermal)
Climatic category (IEC 60068-1)
1.6 · I
R
for 20 s
per hour or
2.0 · I
R
for 10 s
per hour
40/100/21 (–40
°C/+100 °C/21
days damp heat test)
Characteristics and ordering codes
V
R
DC
V
750
I
R
A
250
500
1000
1000
250
500
1000
2000
250
500
1000
R
typ
µΩ
63
57
33
63
57
33
63
57
33
Approx.
weight
kg
12
13
26
12
13
26
12
13
26
Ordering code
B84142A0250S002
B84142A0500S002
B84142A1000S002
B84142A0250S003
B84142A0500S003
B84142A1000S003
B84142A0250S018
B84142A0500S018
B84142A1000S018
Please read
Cautions and warnings
and
Important notes
at the end of this document.
3
01/06
2-line filters
for converters in traction systems
Dimensional drawings
B84142A0250S0** (250 A)
B84142A*S002 … S018
140
110±0.5
PE
M10 × 30
ø11
PE
M10 × 30
30
2 x M6 x 6
25
36
5
40±1
15
360±2
5
40±1
15
80
300
60
120±0.5
120±0.5
60
+
+
5
_
ø12
LINE
LOAD
_
190
Marking
165±1
SSB1587-R
Please read
Cautions and warnings
and
Important notes
at the end of this document.
4
01/06
2
91
116
