SAW Components
SAW RF low loss filter
Satellite BTS
Series/type:
Ordering code:
Date:
Version:
B1617
B39122B1617U810
July 01, 2008
2.2
©
EPCOS AG 2008. Reproduction, publication and dissemination of this data sheet, enclosures
hereto and the information contained therein without EPCOS’ prior express consent is prohibited.
SAW Components
SAW RF low loss filter
Data Sheet
Application
s
s
s
s
s
s
s
B1617
1178.12 MHz
Low loss RF filter for satellite BTS
Usable passband 40.0 MHz
Low insertion attenuation
Low amplitude ripple
Low group delay ripple
Balanced to balanced operation
No matching network required for operation at 150
Ω
Features
s
s
s
s
s
s
s
s
1.1
Package size 3.0 x 3.0 x 1.1 mm
3
Maximum height of 1.225mm
Package code QCC8D
RoHS compatible
Approximate weight 0.037 g
Package for
Surface Mount Technology
(SMT)
Ni, gold-plated terminals
Electrostatic Sensitive Device
(ESD)
0.6
1
3
1.5
1.5
7
5
bottom view
1.8
side view
3.0
top view
3.0
Pin configuration
s
s
s
s
s
s
1
2
5
6
3,7
4,8
Input
Input
Output
Output
To be grounded
Case ground, to be grounded
Please read
cautions and warnings and
important notes
at the end of this document.
2
July 01, 2008
SAW Components
SAW RF low loss filter
Data Sheet
Characteristics
Operating temperature range:
Terminating source impedance:
Terminating load impedance:
T = –40 ˚C to +85 ˚C
Z
S
= 150
Ω
Z
L
= 150
Ω
B1617
1178.12 MHz
min.
Nominal frequency
f
N
—
typ.
@ 25 ˚C
1178.12
max.
—
MHz
Maximum insertion attenuation
α
max
1158.12 ... 1198.12 MHz
Pass bandwidth
α
rel
< 1.5 dB
—
3.5
4.5
dB
B
1.5 dB
—
57.6
—
MHz
Amplitude ripple (p-p)
∆α
1158.12 ... 1198.12 MHz
Group delay ripple (p-p)
∆τ
1158.12 ... 1198.12 MHz
Differential to common mode ratio
(|S
dd21
/S
cd21
|)
1158.12 ... 1198.12 MHz
Deviation from linear phase (rms)
in any 30 MHz band
1158.12 ... 1198.12 MHz
Relative attenuation
(relative to
α
max
)
α
50.00 ... 1096.06 MHz
1260.18 ... 2000.00 MHz
2000.00 ... 6000.00 MHz
—
—
1.8
17.0
2.3
25.0
dB
ns
11
13
—
dB
—
4.0
5.5
˚
46.0
44.0
15.0
50.0
49.0
—
—
—
—
dB
dB
dB
Maximum ratings
Operable temperature range
Storage temperature range
DC voltage
Source power
T
Tstg
V
DC
P
S
–40/+85
–40/+85
0
0
˚C
˚C
V
dBm
source impedance 150
Ω
Please read
cautions and warnings and
important notes
at the end of this document.
3
July 01, 2008
SAW Components
SAW RF low loss filter
Data Sheet

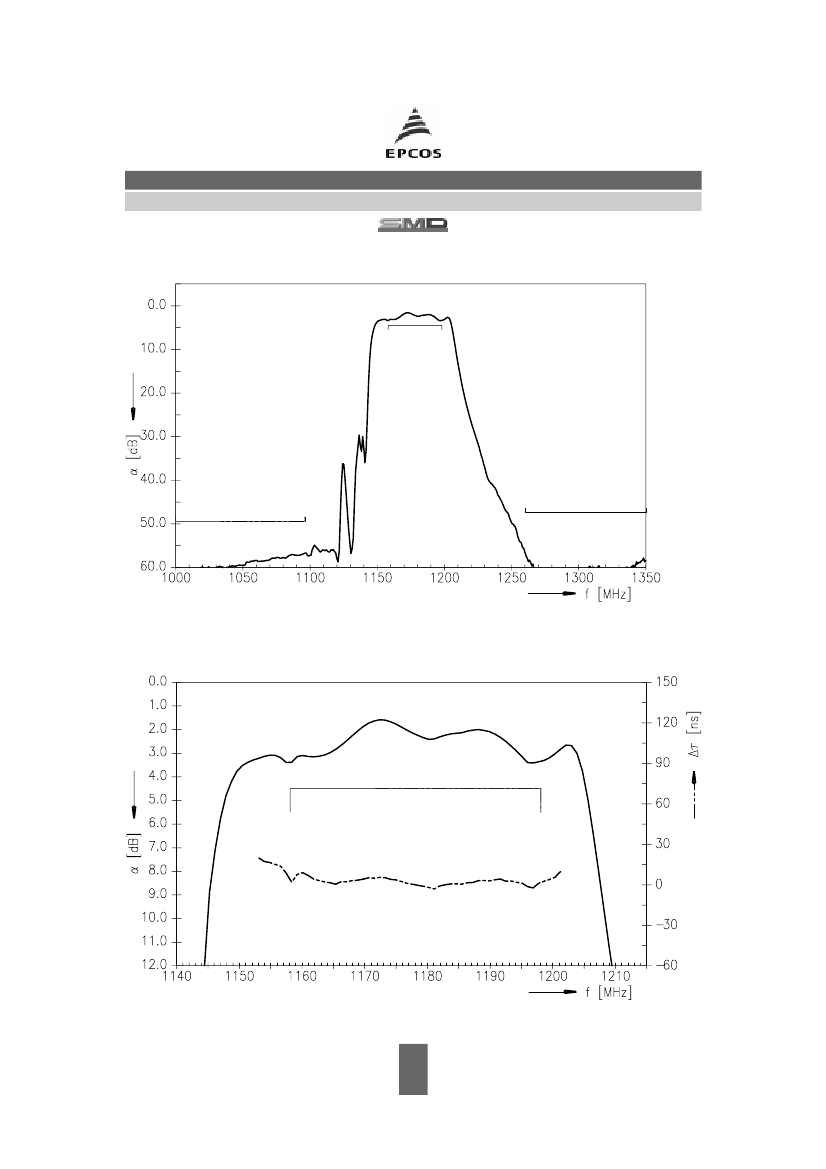

Transfer function
B1617
1178.12 MHz
Transfer function (passband)
Please read
cautions and warnings and
important notes
at the end of this document.
4
July 01, 2008
SAW Components
SAW RF low loss filter
Data Sheet
B1617
1178.12 MHz
References
Type
Ordering code
Marking and package
Packaging
Date codes
S-parameters
Soldering profile
RoHS compatible
B1617
B39122B1617U810
C61157-A7-A72
F61074-V8168-Z000
L_1126
B1617_NB.s4p
S_6001
defined as compatible with the following documents:
"DIRECTIVE 2002/95/EC OF THE EUROPEAN PARLIAMENT
AND OF THE COUNCIL of 27 January 2003 on the restriction
of the use of certain hazardous substances in electrical and
electronic equipment. 2005/618/EC from April 18th, 2005,
amending Directive 2002/95/EC of the European Parliament
and of the Council for the purposes of establishing the maxi-
mum concentration values for certain hazardous substances in
electrical and electronic equipment."
For further information please contact your local EPCOS sales office or visit our webpage at
www.epcos.com .
Published by EPCOS AG
Surface Acoustic Wave Components Division
P.O. Box 80 17 09, 81617 Munich, GERMANY
©
EPCOS AG 2008. This brochure replaces the previous edition.
For questions on technology, prices and delivery please contact the Sales Offices of EPCOS AG or
the international Representatives.
Due to technical requirements components may contain dangerous substances. For information on
the type in question please also contact one of our Sales Offices.
Please read
cautions and warnings and
important notes
at the end of this document.
5
