B84143G0120R112

Description
Three Phase EMI Filter, 300V, 50/60HzHz, METAL PACKAGE
CategoryAnalog mixed-signal IC    filter
File Size60KB，1 Pages
ManufacturerEPCOS (TDK)
Download Datasheet Parametric Compare View All

B84143G0120R112 Overview

Three Phase EMI Filter, 300V, 50/60HzHz, METAL PACKAGE

B84143G0120R112 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
CertificationIEC; EN; VDE
filter typeTHREE PHASE EMI FILTER
high200 mm
high potential2700 V
Maximum leakage current16 mA
length350 mm
Manufacturer's serial numberB84143-G120-R112
Installation typePANEL MOUNT
working frequency50/60Hz Hz
physical sizeL350XB90XH200 (mm)
Rated current120 A
Rated voltage300 V
Base Number Matches1

Preview

Download Datasheet

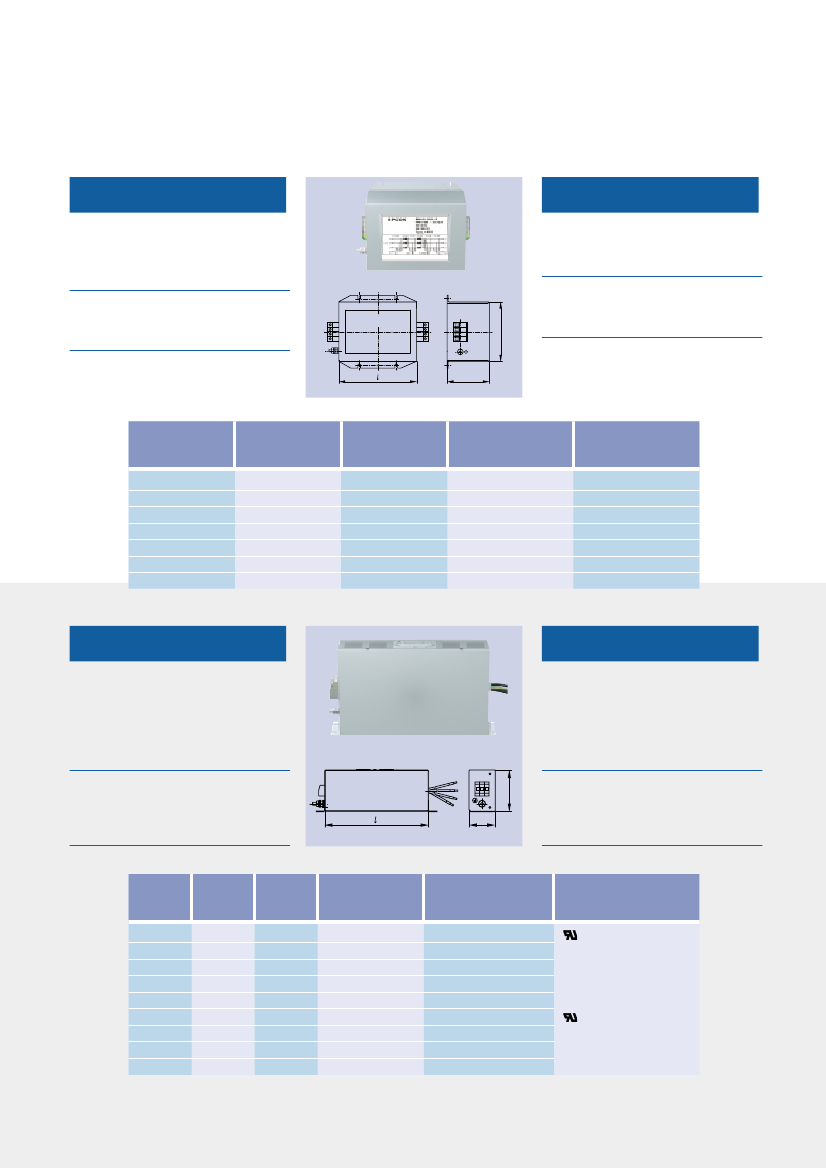

3-Leiter-Filter
3-Line Filters
Umrichter/Leistungselektronik
B84143-B*-R
s
Für 3-Phasen-Systeme
s
Metallgehäuse
s
Berührungssichere
Reihenklemmen
Bemessungs-
spannung U
R
:
Klimakategorie:
440/250 V~,
50/60 Hz
25/100/21
LINE
Converters/power electronics
B84143-B*-R
s
For 3-phase systems
s
Metal case
s
Safe-to-touch terminal blocks
Rated voltage V
R
: 440/250 V~,
50/60 Hz
Climatic category: 25/100/21
LOAD
Marking
h
SSB1888-I
I
R
A
8
12
16
25
36
50
80
I
Abl
I
leak
mA
< 3,5
< 3,5
< 3,5
< 3,5
< 3,5
<6
<6
R
typ
mΩ
80
40
25
10
5,0
3,5
2,0
Maße
Dimensions
l
x
b
x
h (mm)
171
x
126
x
81
171
x
126
x
81
171
x
126
x
81
231
x
126
x
91
231
x
126
x
91
231
x
126
x
91
331
x
141
x
141
b
Bestellnummer
Ordering code
B84143-B8-R
B84143-B12-R
B84143-B16-R
B84143-B25-R
B84143-B36-R
B84143-B50-R
B84143-B80-R
Für höhere Ströme siehe B84143-B**-R110, Seite 35.
/
For higher currents refer to B84143-B**-R110, page 35.
Buchfilter
B84143-G*-R110/-R112
s
Für 3-Phasen-Systeme
s
Für Umrichter und
Leistungselektronik
s
Metallgehäuse
s
Berührungssichere
Reihenklemmen/Litzen
Bemessungs-
spannung U
R
:
Klimakategorie:
480/275 V~ und
520/300 V~,
50/60 Hz
25/100/21
h
Book-size filters
B84143-G*-R110/-R112
s
For 3-phase systems
s
For converters and power
electronics
s
Metal case
s
Safe-to-touch terminal blocks/
litz wires
Rated voltage V
R
: 480/275 V~ and
520/300 V~,
50/60 Hz
Climatic category: 25/100/21
b
SSB1896-9
I
R
A
8
20
36
50
66
90
120
150
220
1)
I
Abl
I
leak
mA
< 6
< 6
< 16
< 16
< 16
< 16
< 16
< 16
< 16
R
typ
mΩ
40
10
5,2
2,4
1,8
1,2
1,0
0,7
0,4
Maße
Dimensions
l
x
b
x
h (mm)
200
x
50
x
80
200
x
50
x
80
250
x
60
x
150
300
x
60
x
150
300
x
80
x
150
300
x
80
x
150
350
x
90
x
200
350
x
90
x
200
400
x
110
x
220
Bestellnummer
1)
Ordering code
1)
B84143-G8-R11*
B84143-G20-R11*
B84143-G36-R11*
B84143-G50-R11*
B84143-G66-R11*
B84143-G90-R11*
B84143-G120-R11*
B84143-G150-R11*
B84143-G220-R11*
Approbationen
Approvals
Typ -R110 approbiert
nach UL 1283;
für Typ -R112 UL-
und CSA-Approbation
in Vorbereitung
UL 1283 approval
for type -R110;
for -R112 UL and CSA
approval pending
* 0 = 480/275 V; 2 = 520/300 V
34
EPCOS AG

B84143G0120R112 Related Products

B84143G0120R112 B84143G0150R112 B84143G0050R112 B84143G0090R112 B84143G0036R112 B84143G0008R112 B84143G0066R112 B84143G0220R112 B84143G0020R112
Description Three Phase EMI Filter, 300V, 50/60HzHz, METAL PACKAGE Three Phase EMI Filter, 300V, 50/60HzHz, METAL PACKAGE Three Phase EMI Filter, 300V, 50/60HzHz, METAL PACKAGE Three Phase EMI Filter, 300V, 50/60HzHz, METAL PACKAGE Three Phase EMI Filter, 300V, 50/60HzHz, METAL PACKAGE Three Phase EMI Filter, 300V, 50/60HzHz, METAL PACKAGE Three Phase EMI Filter, 300V, 50/60HzHz, METAL PACKAGE Three Phase EMI Filter, 300V, 50/60HzHz, METAL PACKAGE Three Phase EMI Filter, 300V, 50/60HzHz, METAL PACKAGE
Reach Compliance Code unknown unknown unknown unknown unknown unknown unknown unknown unknown
Certification IEC; EN; VDE IEC; EN; VDE IEC; EN; VDE IEC; EN; VDE IEC; EN; VDE IEC; EN; VDE IEC; EN; VDE IEC; EN; VDE IEC; EN; VDE
filter type THREE PHASE EMI FILTER THREE PHASE EMI FILTER THREE PHASE EMI FILTER THREE PHASE EMI FILTER THREE PHASE EMI FILTER THREE PHASE EMI FILTER THREE PHASE EMI FILTER THREE PHASE EMI FILTER THREE PHASE EMI FILTER
high 200 mm 200 mm 150 mm 150 mm 150 mm 80 mm 150 mm 220 mm 80 mm
high potential 2700 V 2700 V 2700 V 2700 V 2700 V 2700 V 2700 V 2700 V 2700 V
Maximum leakage current 16 mA 16 mA 16 mA 16 mA 16 mA 6 mA 16 mA 16 mA 6 mA
length 350 mm 350 mm 300 mm 300 mm 250 mm 200 mm 300 mm 400 mm 200 mm
Manufacturer's serial number B84143-G120-R112 B84143-G150-R112 B84143-G50-R112 B84143-G90-R112 B84143-G36-R112 B84143-G8-R112 B84143-G66-R112 B84143-G220-R112 B84143-G20-R112
Installation type PANEL MOUNT PANEL MOUNT PANEL MOUNT PANEL MOUNT PANEL MOUNT PANEL MOUNT PANEL MOUNT PANEL MOUNT PANEL MOUNT
working frequency 50/60Hz Hz 50/60Hz Hz 50/60Hz Hz 50/60Hz Hz 50/60Hz Hz 50/60Hz Hz 50/60Hz Hz 50/60Hz Hz 50/60Hz Hz
physical size L350XB90XH200 (mm) L350XB90XH200 (mm) L300XB60XH150 (mm) L300XB80XH150 (mm) L250XB60XH150 (mm) L200XB50XH80 (mm) L300XB80XH150 (mm) L400XB110XH220 (mm) L200XB50XH80 (mm)
Rated current 120 A 150 A 50 A 90 A 36 A 8 A 66 A 220 A 20 A
Rated voltage 300 V 300 V 300 V 300 V 300 V 300 V 300 V 300 V 300 V
Base Number Matches 1 1 1 1 1 1 - - -
