SMD-Type Chip Filters
Chip suppressors
Super Low-Loss N-ZL Series
• Tape and Reel Dimensions (see page 144)
•Reliability Test (see page 147)
•Precautions (see page 146)
Model
Impedance ( )
at 100 MHz
DC resistance
(m ) max.
Rated current
(mA) max.
N1608ZL500
N1608ZL800
N1608ZL121
N1608ZL221
N1608ZL471
N2012ZL500
N2012ZL800
N2012ZL121
N2012ZL221
N2012ZL471
• Operating temperature range: –55 to +125˚C
50±30%
80±30%
120±30%
220±30%
470±30%
50±30%
80±30%
120±30%
220±30%
470±30%
250
300
400
550
900
200
300
300
300
400
200
200
200
200
150
300
300
300
200
200
4
SMD-Type Chip Filters
•Storage temperature range (taping): –5 to +40˚C (bulk ): –55 to +125˚C
Shape and Dimensions
Circuit Diagram
T
C
L
W
Type
N1608ZL
N2012ZL
L
1.6±0.15
2.0±0.2
W
0.8±0.15
1.25±0.2
T
0.8±0.15
0.9±0.2
C min.
0.1
0.3
[mm]
Numbering System
N 2012 ZL 300 T
Product type N : Normal Mode Chip
Suppressors
Dimensions 1608 : 1.6 0.8 0.8mm
2012 : 2.0 1.25 0.9mm
Material
Impedance 300 : 30 , 121 : 120 ,
102 : 1000
Packaging T : Taping, 1608 : 3000pcs./reel,
2012 : 3000pcs./reel
NEC TOKIN control number

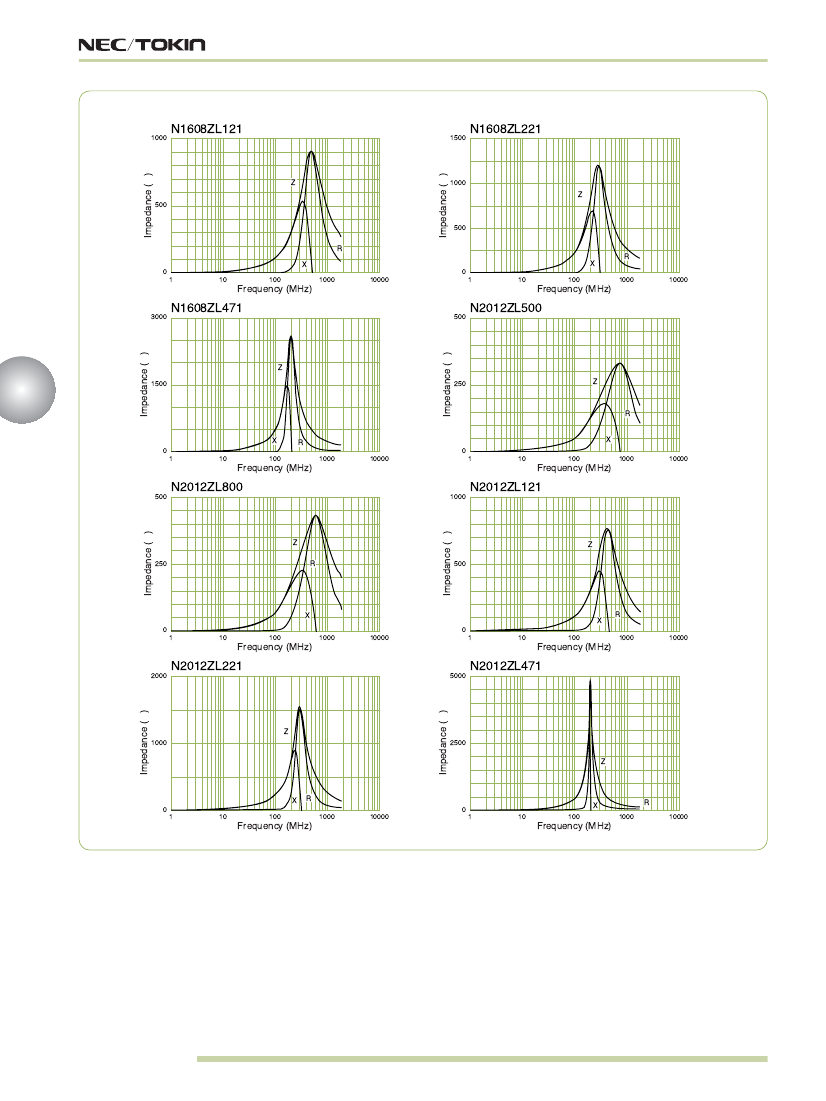

Impedance vs. Frequency
500
N1608ZL500
1000
N1608ZL800
Impedance ( )
250
Impedance ( )
Z
500
R
Z
R
X
0
1
10
Frequency (MHz)
100
1000
10000
0
X
1
10
Frequency (MHz)
100
1000
10000
