BA6487FP-Y datasheet, PDF - EEWORLD Datasheet

BA6487FP-Y: DescriptionDisk Drive Motor Controller, 1A, PDSO25, HSOP-25; CategoryOther integrated circuit (IC) The signal circuit; File Size232KB，9 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/

Download Datasheet Parametric Compare View All

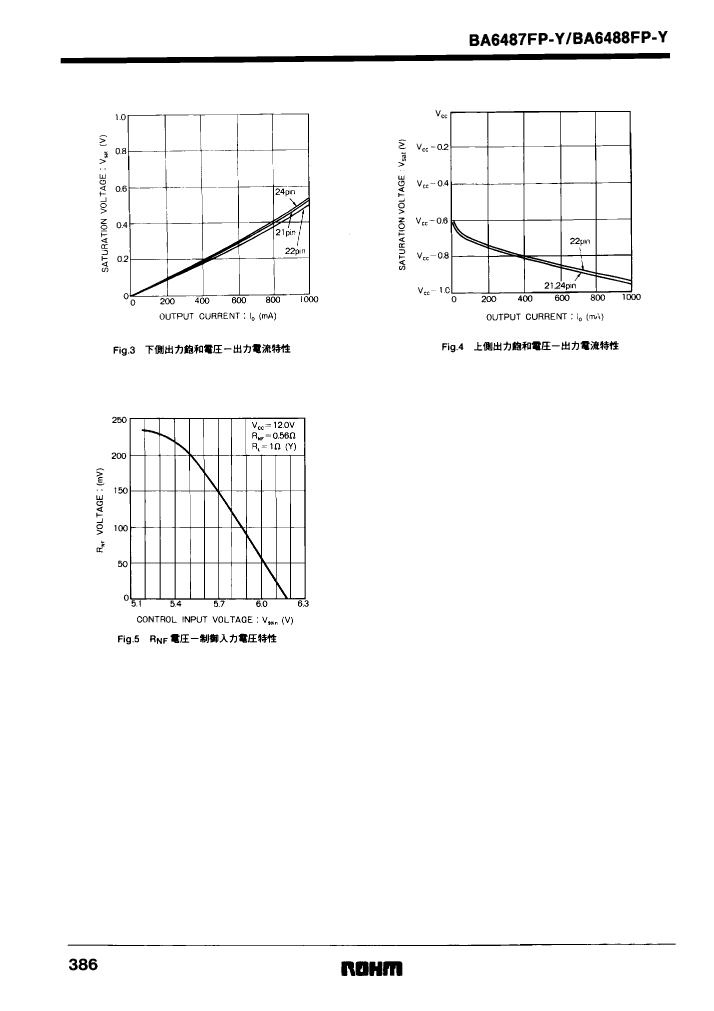

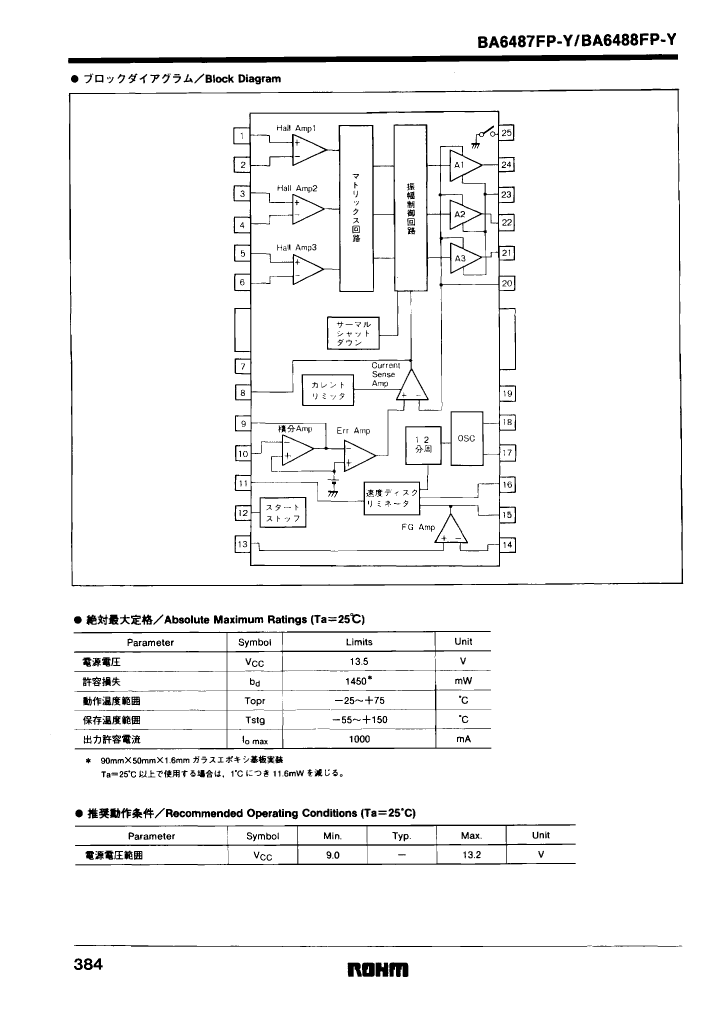

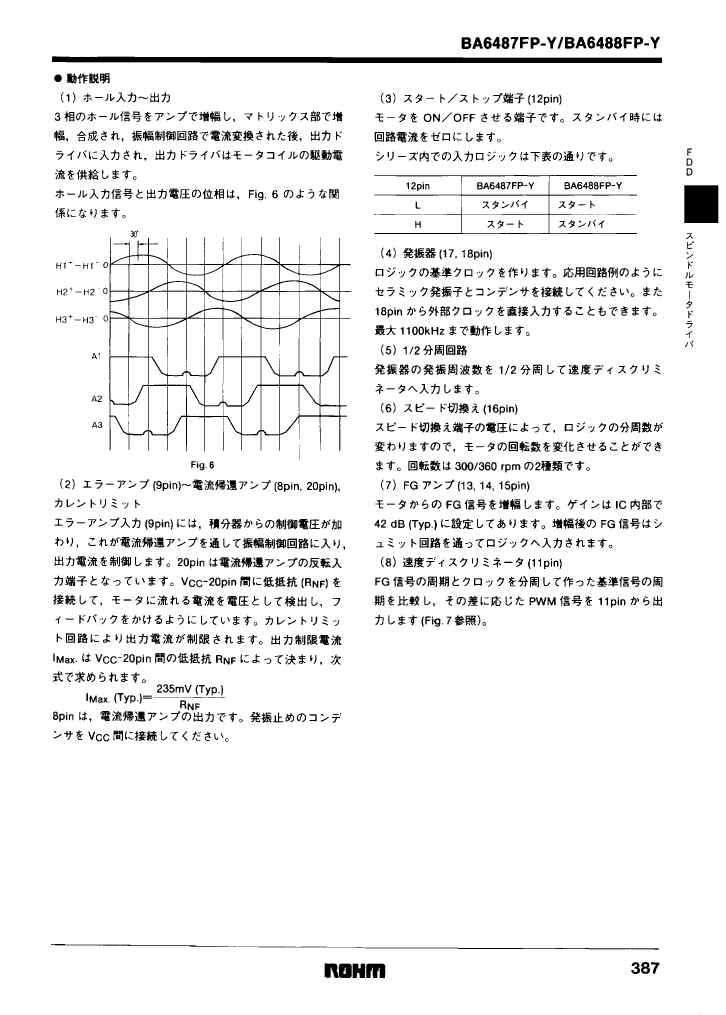

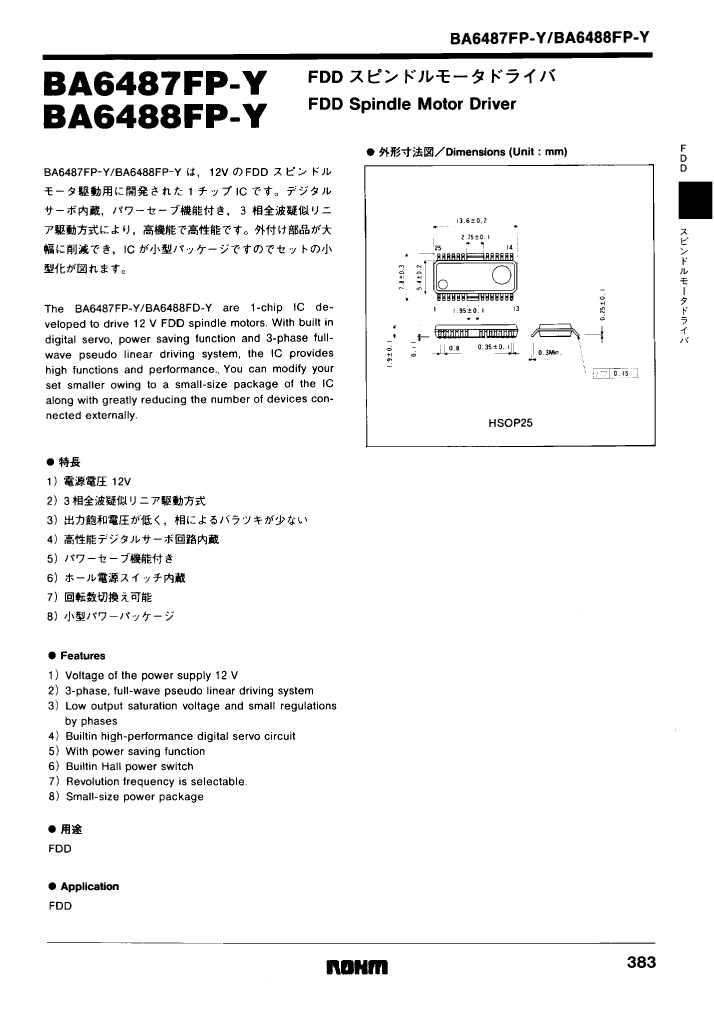

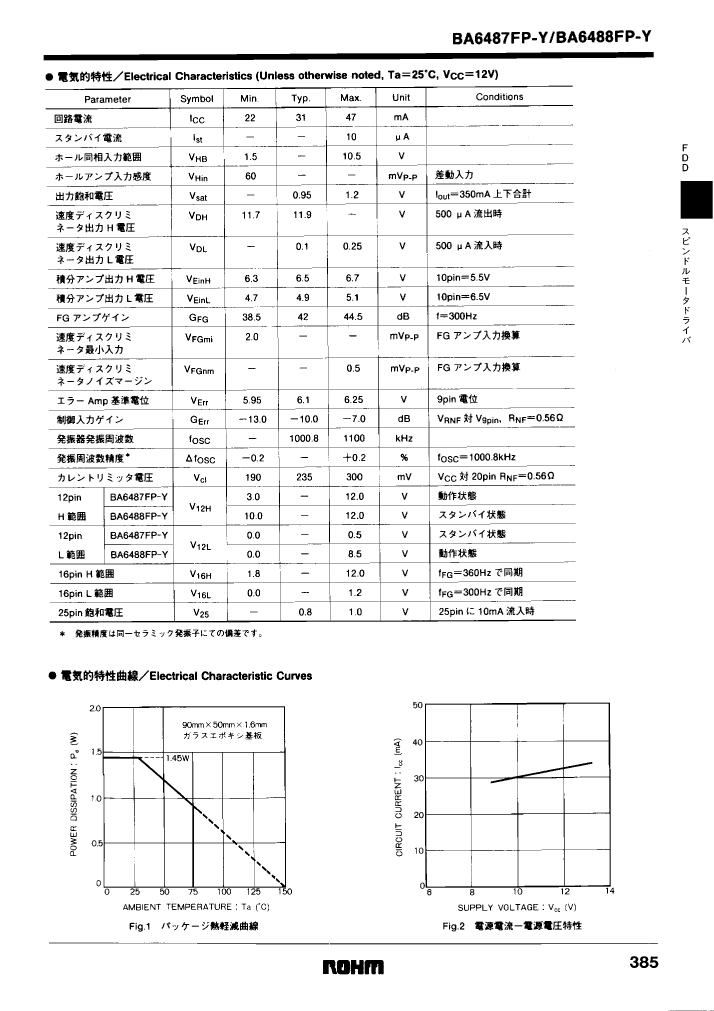

BA6487FP-Y Overview

Disk Drive Motor Controller, 1A, PDSO25, HSOP-25

Parameter Name	Attribute value
Parts packaging code	SOIC
package instruction	HSSOP,
Contacts	25
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DISK DRIVE MOTOR CONTROLLER
JESD-30 code	R-PDSO-G25
length	13.6 mm
Number of functions	1
Number of terminals	25
Maximum operating temperature	75 °C
Minimum operating temperature	-25 °C
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
encapsulated code	HSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH
Certification status	Not Qualified
Maximum seat height	2.11 mm
Maximum supply voltage (Vsup)	13.2 V
Minimum supply voltage (Vsup)	9 V
Nominal supply voltage (Vsup)	12 V
surface mount	YES
Temperature level	COMMERCIAL EXTENDED
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
width	5.4 mm
Base Number Matches	1

	BA6487FP-Y	BA6488FP-Y
Description	Disk Drive Motor Controller, 1A, PDSO25, HSOP-25	Disk Drive Motor Controller, 1A, PDSO25, HSOP-25
Parts packaging code	SOIC	SOIC
package instruction	HSSOP,	HSSOP,
Contacts	25	25
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Analog Integrated Circuits - Other Types	DISK DRIVE MOTOR CONTROLLER	DISK DRIVE MOTOR CONTROLLER
JESD-30 code	R-PDSO-G25	R-PDSO-G25
length	13.6 mm	13.6 mm
Number of functions	1	1
Number of terminals	25	25
Maximum operating temperature	75 °C	75 °C
Minimum operating temperature	-25 °C	-25 °C
Maximum output current	1 A	1 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	HSSOP	HSSOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH
Certification status	Not Qualified	Not Qualified
Maximum seat height	2.11 mm	2.11 mm
Maximum supply voltage (Vsup)	13.2 V	13.2 V
Minimum supply voltage (Vsup)	9 V	9 V
Nominal supply voltage (Vsup)	12 V	12 V
surface mount	YES	YES
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	GULL WING	GULL WING
Terminal pitch	0.8 mm	0.8 mm
Terminal location	DUAL	DUAL
width	5.4 mm	5.4 mm
Base Number Matches	1	1
