B-13/15-1250-TPM3-SST-60 datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Optical fiber> B-13/15-1250-TPM3-SST-60

B-13/15-1250-TPM3-SST-60: DescriptionTransceiver, 1260nm Min, 1360nm Max, 1250Mbps(Tx), 1250Mbps(Rx), ST Connector, Through Hole Mount; CategoryWireless rf/communication Optical fiber; File Size2MB，6 Pages; ManufacturerSource Photonics

Download Datasheet Parametric Compare View All

B-13/15-1250-TPM3-SST-60 Overview

Transceiver, 1260nm Min, 1360nm Max, 1250Mbps(Tx), 1250Mbps(Rx), ST Connector, Through Hole Mount

B-13/15-1250-TPM3-SST-60 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	IT ALSO OPERATE FROM WAVELENGTH 1500NM TO 1600NM

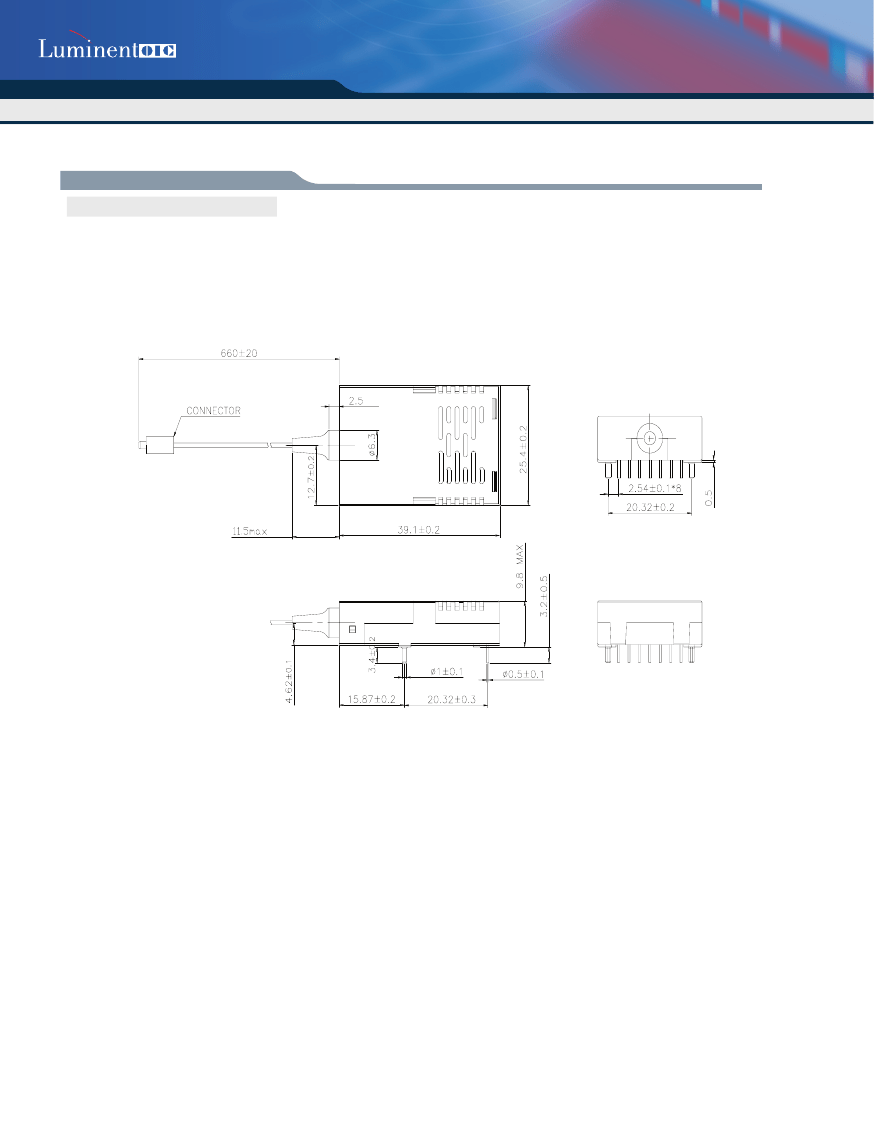

body width	25.4 mm
body height	9.8 mm
Body length or diameter	39.1 mm
Communication standards	GBE, GR-468
Connection Type	ST CONNECTOR
Data rate (receive)	1250 Mbps
Data rate (send)	1250 Mbps
Fiber optic equipment types	TRANSCEIVER
Fiber type	SMF
Installation features	THROUGH HOLE MOUNT
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum operating wavelength	1360 nm
Minimum operating wavelength	1260 nm
Nominal operating wavelength	1310 nm
Nominal optical power output	0.199 mW
minimum return loss	14 dB
Sensitivity	-22 dBm
Maximum supply voltage	3.5 V
Minimum supply voltage	3.1 V
Nominal supply voltage	3.3 V
surface mount	NO
Base Number Matches	1

Preview

Download Datasheet

View All

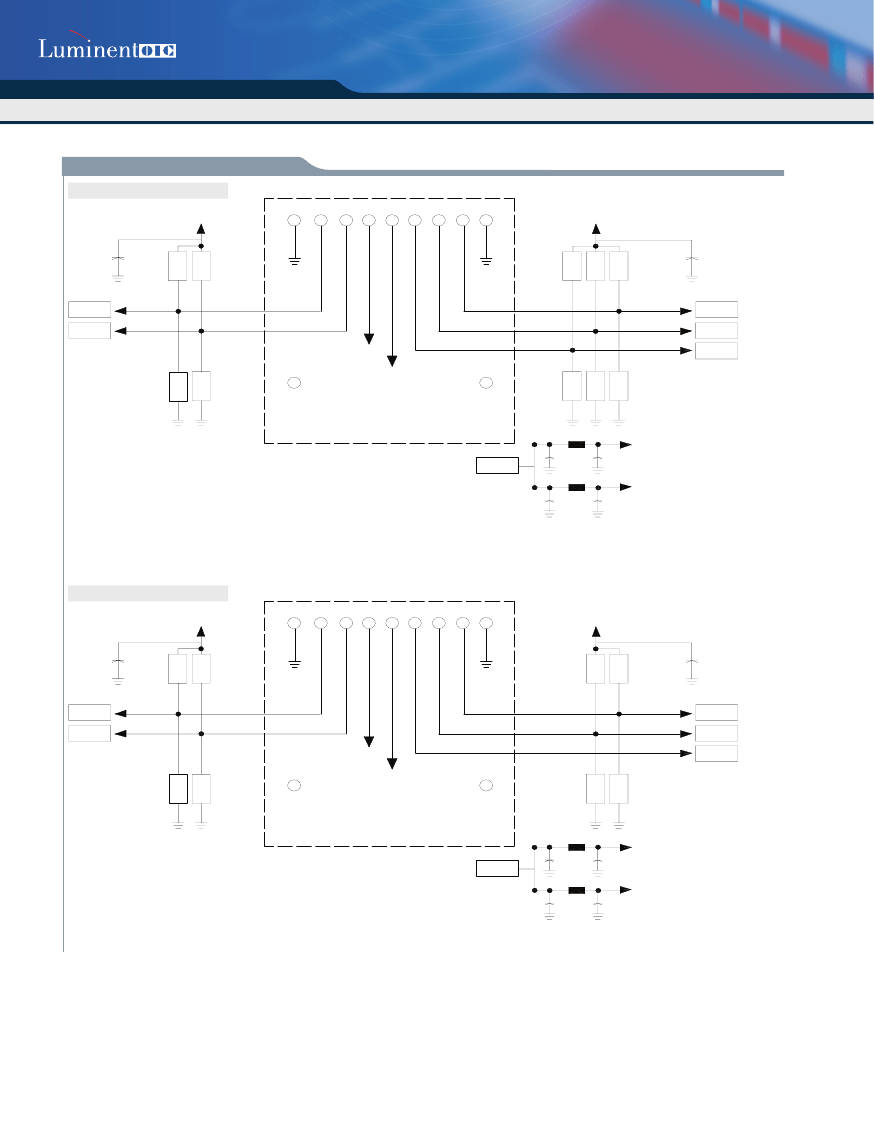

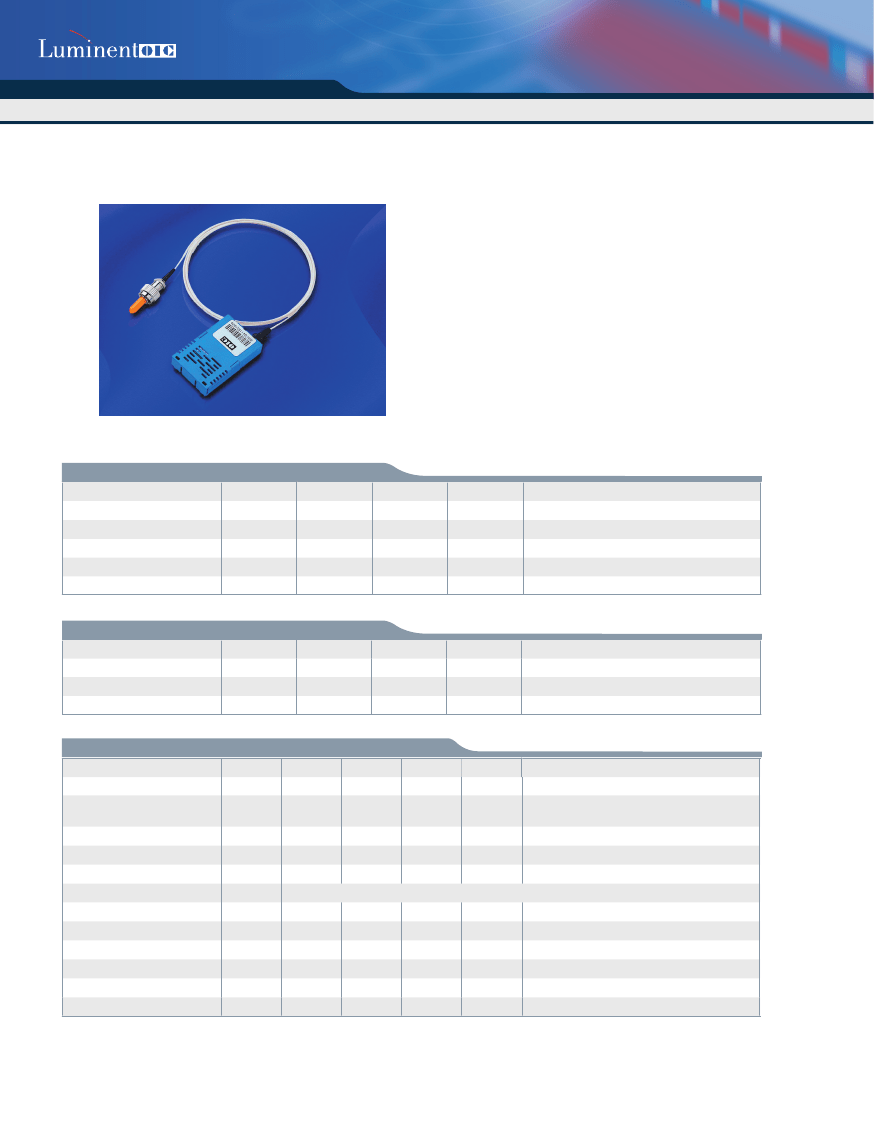

1.25 Gbps Bi-directional Single Fiber Transceiver

B-13/15-1250(C)-TPM3-SXX-60

Features

• Coaxial single mode single fiber package with optional

SC/FC/ST/MU connector

• Wavelength Tx 1310 nm/ Rx 1550nm

• Compliant with IEEE 802.3z Gigabit Ethernet

• Single +3.3V Power Supply

• LVPECL Differential Inputs and Outputs

• LVPECL SD Output (B-13/15-1250-TPM3-SXX-60)

• LVTTL SD Output (B-13/15-1250C-TPM3-SXX-60)

• Wave Solderable and Aqueous washable

• Class 1 Laser Int. Safety Standad IEC 825 Compliant

• Uncooled laser diode with MQW structure

• Complies with Telcordia (Bellcore) GR-468-CORE

• Temperature Range: 0 to 70ºC

• Optical Isolation >30 dB

• Cross Talk < -33 dB

• Optical Return Loss > 14dB

Absolute Maximum Rating

Parameter

Power Supply Voltage

Output Current

Soldering Temperature

Operating Temperature

Storage Temperature

Symbol

out

Min.

-40

Max.

3.6

260

Unit

ºC

Note

10 seconds on leads only

opr

stg

Recommended Operating Condition

Parameter

Power Supply Voltage

Operating Temperature (Case)

Data Rate

Symbol

opr

Min.

3.1

Typ.

3.3

1250

Max.

3.5

Unit

ºC

Mbps

Transmitter Specifications

Parameter

Optical

Optical Transmit Power

Output center Wavelength

Output Spectrum Width

Extinction Ratio

Output Eye

Optical Rise Time

Optical Fall Time

Optical Isolation

Optical Return Loss

Relative Intensity Noise

Total Jitter

Symbol

∆λ

Min

-10

1260

Typical

1310

Max

-4

1360

0.26

-120

0.27

Unit

dBm

dB/Hz

20% to 80% Values

RMS (σ)

Notes

Output power is coupled into a 9/125 µm single

mode fiber

Compliant with IEEE 802.3z

Tx:1310 nm/ Rx:1550 nm

RIN

Measured with 2

-1 PRBS

LUMINENTOIC.COM

20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486

9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213

LUMNDS589-AUG1804

rev. A.0

B-13/15-1250-TPM3-SST-60 Related Products

	B-13/15-1250-TPM3-SST-60	B-13/15-1250C-TPM3-SST-60	B-13/15-1250C-TPM3-SMU-60	B-13/15-1250-TPM3-SMU-60	B-13/15-1250-TPM3-SSC-60	B-13/15-1250-TPM3-SFC-60	B-13/15-1250C-TPM3-SSC-60
Description	Transceiver, 1260nm Min, 1360nm Max, 1250Mbps(Tx), 1250Mbps(Rx), ST Connector, Through Hole Mount	Transceiver, 1260nm Min, 1360nm Max, 1250Mbps(Tx), 1250Mbps(Rx), ST Connector, Through Hole Mount	Transceiver, 1260nm Min, 1360nm Max, 1250Mbps(Tx), 1250Mbps(Rx), MU Connector, Through Hole Mount	Transceiver, 1260nm Min, 1360nm Max, 1250Mbps(Tx), 1250Mbps(Rx), MU Connector, Through Hole Mount	Transceiver, 1260nm Min, 1360nm Max, 1250Mbps(Tx), 1250Mbps(Rx), SC Connector, Through Hole Mount	Transceiver, 1260nm Min, 1360nm Max, 1250Mbps(Tx), 1250Mbps(Rx), FC Connector, Through Hole Mount	Transceiver, 1260nm Min, 1360nm Max, 1250Mbps(Tx), 1250Mbps(Rx), SC Connector, Through Hole Mount
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	IT ALSO OPERATE FROM WAVELENGTH 1500NM TO 1600NM	IT ALSO OPERATE FROM WAVELENGTH 1500NM TO 1600NM	IT ALSO OPERATE FROM WAVELENGTH 1500NM TO 1600NM	IT ALSO OPERATE FROM WAVELENGTH 1500NM TO 1600NM	IT ALSO OPERATE FROM WAVELENGTH 1500NM TO 1600NM	IT ALSO OPERATE FROM WAVELENGTH 1500NM TO 1600NM	IT ALSO OPERATE FROM WAVELENGTH 1500NM TO 1600NM
body width	25.4 mm	25.4 mm	25.4 mm	25.4 mm	25.4 mm	25.4 mm	25.4 mm
body height	9.8 mm	9.8 mm	9.8 mm	9.8 mm	9.8 mm	9.8 mm	9.8 mm
Body length or diameter	39.1 mm	39.1 mm	39.1 mm	39.1 mm	39.1 mm	39.1 mm	39.1 mm
Communication standards	GBE, GR-468	GBE, GR-468	GBE, GR-468	GBE, GR-468	GBE, GR-468	GBE, GR-468	GBE, GR-468
Connection Type	ST CONNECTOR	ST CONNECTOR	MU CONNECTOR	MU CONNECTOR	SC CONNECTOR	FC CONNECTOR	SC CONNECTOR
Data rate (receive)	1250 Mbps	1250 Mbps	1250 Mbps	1250 Mbps	1250 Mbps	1250 Mbps	1250 Mbps
Data rate (send)	1250 Mbps	1250 Mbps	1250 Mbps	1250 Mbps	1250 Mbps	1250 Mbps	1250 Mbps
Fiber optic equipment types	TRANSCEIVER	TRANSCEIVER	TRANSCEIVER	TRANSCEIVER	TRANSCEIVER	TRANSCEIVER	TRANSCEIVER
Fiber type	SMF	SMF	SMF	SMF	SMF	SMF	SMF
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Maximum operating wavelength	1360 nm	1360 nm	1360 nm	1360 nm	1360 nm	1360 nm	1360 nm
Minimum operating wavelength	1260 nm	1260 nm	1260 nm	1260 nm	1260 nm	1260 nm	1260 nm
Nominal operating wavelength	1310 nm	1310 nm	1310 nm	1310 nm	1310 nm	1310 nm	1310 nm
Nominal optical power output	0.199 mW	0.199 mW	0.199 mW	0.199 mW	0.199 mW	0.199 mW	0.199 mW
minimum return loss	14 dB	14 dB	14 dB	14 dB	14 dB	14 dB	14 dB
Sensitivity	-22 dBm	-22 dBm	-22 dBm	-22 dBm	-22 dBm	-22 dBm	-22 dBm
Maximum supply voltage	3.5 V	3.5 V	3.5 V	3.5 V	3.5 V	3.5 V	3.5 V
Minimum supply voltage	3.1 V	3.1 V	3.1 V	3.1 V	3.1 V	3.1 V	3.1 V
Nominal supply voltage	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	NO	NO	NO	NO	NO	NO	NO
Base Number Matches	1	1	1	1	1	1	-
Maker	-	Source Photonics	Source Photonics	Source Photonics	-	-	Source Photonics
