BD6050KN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> BD6050KN

BD6050KN: DescriptionSwitching Regulator, Voltage-mode, 0.4A, VQFN-36; CategoryPower/power management The power supply circuit; File Size341KB，2 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric View All

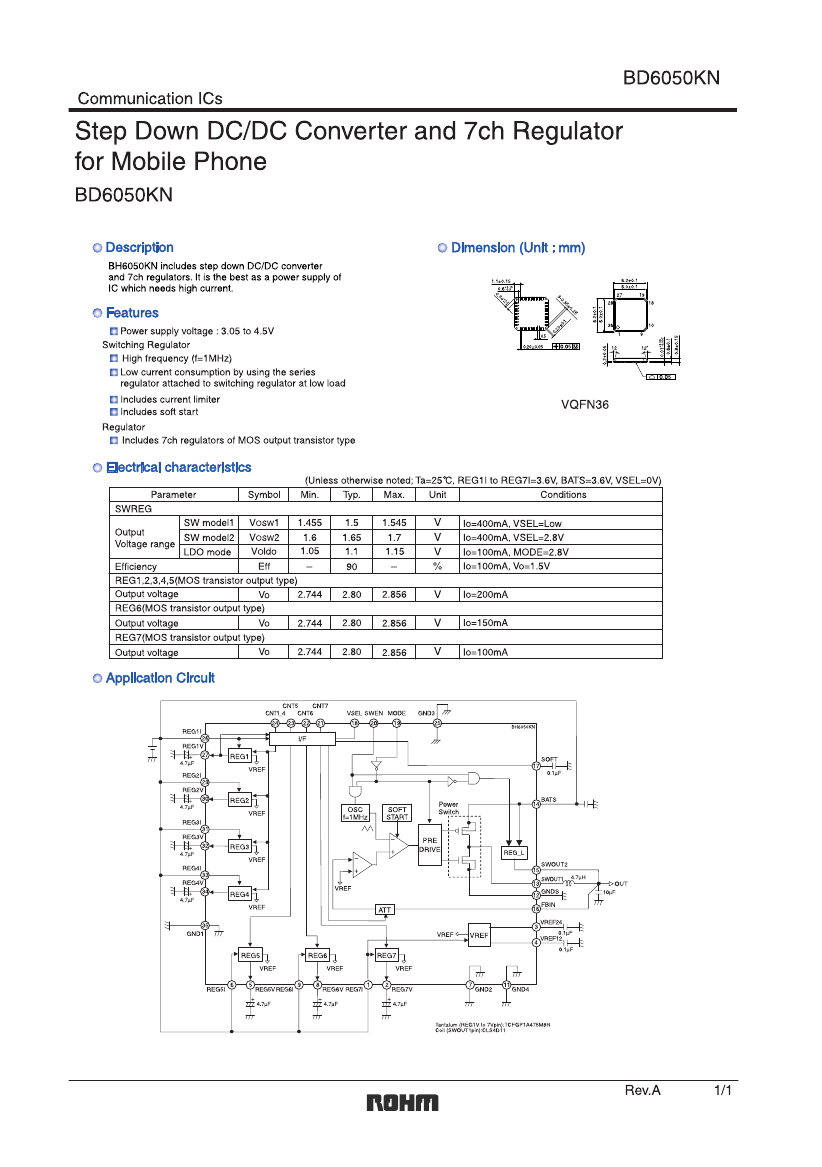

BD6050KN Overview

Switching Regulator, Voltage-mode, 0.4A, VQFN-36

BD6050KN Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	QFN
package instruction	VQCCN, LCC36,.25SQ,20
Contacts	36
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	SWITCHING REGULATOR
control mode	VOLTAGE-MODE
Maximum input voltage	4.5 V
Minimum input voltage	3.05 V
Nominal input voltage	3.6 V
JESD-30 code	S-XQCC-N36
JESD-609 code	e3/e2
length	6.2 mm
Number of functions	1
Number of terminals	36
Maximum output current	0.4 A
Package body material	UNSPECIFIED
encapsulated code	VQCCN
Encapsulate equivalent code	LCC36,.25SQ,20
Package shape	SQUARE
Package form	CHIP CARRIER, VERY THIN PROFILE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	0.95 mm
surface mount	YES
Switch configuration	PUSH-PULL
Terminal surface	TIN/TIN COPPER
Terminal form	NO LEAD
Terminal pitch	0.5 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	10
width	6.2 mm
Base Number Matches	1
