B82730U3102A020 datasheet, PDF

Datasheet> All Categories > Passive components> inductor> B82730U3102A020

B82730U3102A020: Description1 ELEMENT, 1800uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, ROHS COMPLIANT; CategoryPassive components inductor; File Size690KB，7 Pages; ManufacturerEPCOS (TDK); Environmental Compliance

Download Datasheet Parametric Compare View All

B82730U3102A020 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	B82730U3102A020	-	-	View	Buy Now

B82730U3102A020 Overview

1 ELEMENT, 1800uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, ROHS COMPLIANT

B82730U3102A020 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
structure	Rectangular
core material	Ferrite
DC Resistance	0.34 Ω
Nominal inductance(L)	1800 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Lead diameter	0.6 mm
Lead length	3 mm
Number of functions	2
Number of terminals	4
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	16.5 mm
Package length	16.5 mm
Package form	PCB Mount
Package width	11 mm
method of packing	Tray
Maximum rated current	1 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	INDUCTANCE IS MEASURED AT 0.1 mA
surface mount	NO
Terminal location	DUAL IN-LINE
Terminal shape	WIRE
Test frequency	0.01 MHz
Tolerance	50%
Base Number Matches	1

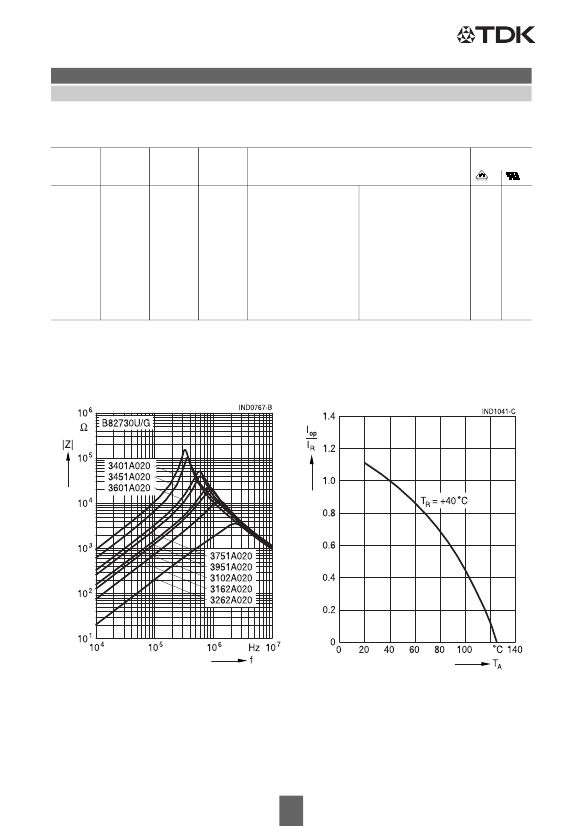

Preview

Download Datasheet

View All

Power line chokes

Current-compensated U core double chokes

300 V AC, 0.4 … 2.6 A, 0.33 … 15 mH, +40° C

Series/Type:

Date:

B82730U/G

July 2012

a~í~=pÜÉÉí

information contained therein without EPCOS' prior express consent is prohibited.

EPCOS AG is a TDK Group Company.

B82730U3102A020 Related Products

	B82730U3102A020	B82730U3451A020	B82730U3401A020	B82730U3951A020	B82730U3262A020	B82730U3601A020
Description	1 ELEMENT, 1800uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, ROHS COMPLIANT	1 ELEMENT, 10000uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, ROHS COMPLIANT	1 ELEMENT, 15000uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, ROHS COMPLIANT	1 ELEMENT, 2200uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, ROHS COMPLIANT	1 ELEMENT, 330uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, ROHS COMPLIANT	1 ELEMENT, 4700uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
structure	Rectangular	Rectangular	Rectangular	Rectangular	Rectangular	Rectangular
core material	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite
DC Resistance	0.34 Ω	1.75 Ω	2.4 Ω	0.41 Ω	0.06 Ω	0.92 Ω
Nominal inductance(L)	1800 µH	10000 µH	15000 µH	2200 µH	330 µH	4700 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Lead diameter	0.6 mm	0.6 mm	0.6 mm	0.6 mm	0.6 mm	0.6 mm
Lead length	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm
Number of functions	2	2	2	2	2	2
Number of terminals	4	4	4	4	4	4
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package height	16.5 mm	16.5 mm	16.5 mm	16.5 mm	16.5 mm	16.5 mm
Package length	16.5 mm	16.5 mm	16.5 mm	16.5 mm	16.5 mm	16.5 mm
Package form	PCB Mount	PCB Mount	PCB Mount	PCB Mount	PCB Mount	PCB Mount
Package width	11 mm	11 mm	11 mm	11 mm	11 mm	11 mm
method of packing	Tray	Tray	Tray	Tray	Tray	Tray
Maximum rated current	1 A	0.45 A	0.4 A	0.95 A	2.6 A	0.6 A
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	NO	NO	NO	NO	NO	NO
special characteristics	INDUCTANCE IS MEASURED AT 0.1 mA	INDUCTANCE IS MEASURED AT 0.1 mA	INDUCTANCE IS MEASURED AT 0.1 mA	INDUCTANCE IS MEASURED AT 0.1 mA	INDUCTANCE IS MEASURED AT 0.1 mA	INDUCTANCE IS MEASURED AT 0.1 mA
surface mount	NO	NO	NO	NO	NO	NO
Terminal location	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE
Terminal shape	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Test frequency	0.01 MHz	0.01 MHz	0.01 MHz	0.01 MHz	0.1 MHz	0.01 MHz
Tolerance	50%	50%	50%	50%	50%	50%
Base Number Matches	1	1	1	1	1	1
