BML0603-270K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> BML0603-270K

BML0603-270K: DescriptionGeneral Purpose Inductor, 27uH, 10%, 1 Element, Ferrite-Core, SMD; CategoryPassive components inductor; File Size145KB，9 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/

Download Datasheet Parametric Compare View All

BML0603-270K Overview

General Purpose Inductor, 27uH, 10%, 1 Element, Ferrite-Core, SMD

BML0603-270K Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
core material	FERRITE
DC Resistance	2.75 Ω
Nominal inductance(L)	27 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Minimum quality factor (at nominal inductance)	15
self resonant frequency	12 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	1 MHz
Tolerance	10%
Base Number Matches	1

Preview

Download Datasheet

View All

MODEL BML SERIES

Surface Mount

Multilayer

Chip Inductors

Size: 0603 to 1206

FEATURES

•

Tight dimensional tolerances and a small package make this chip ideal for high density installation

Monolithic structure for high reliability

Magnetic shielded construction minimizes coupling to other components

Compatible with vapor phase and infrared reﬂow soldering

APPLICATIONS

•

Instrumentation

Mobile communication equipment

Notebook computer

Video and audio equipment

Video games

Medical equipment

ELECTRICAL / ENVIRONMENTAL

0.047µH to 33.0µH

±10%

-25°C to +85°C

-40°C to +85°C

80°C

260°C for 10 sec.

Per MIL-STD-202F

Inductance Range

Standard Tolerance

Operating Temperature Range

Storage Temperature Range

Ambient Temperature, Maximum

Resistance to Solder Heat

Resistance to Solvent

Speciﬁcations subject to change without notice.

6-31

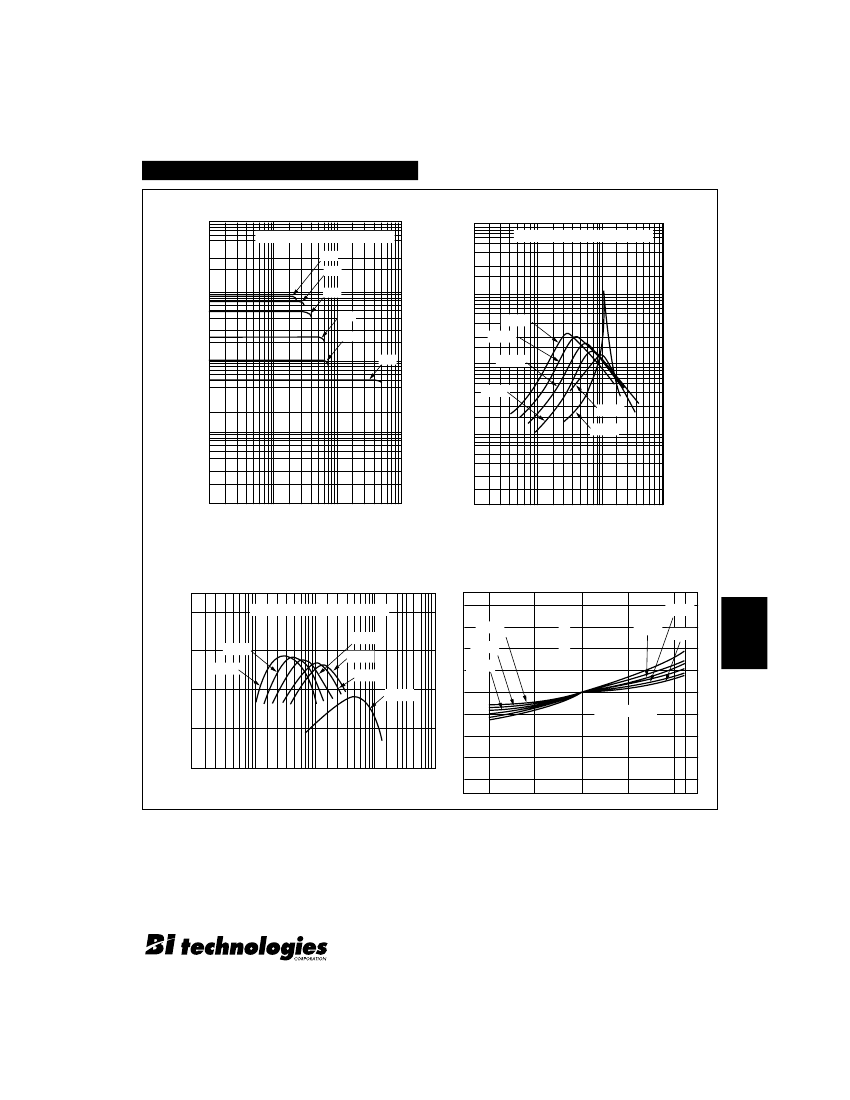

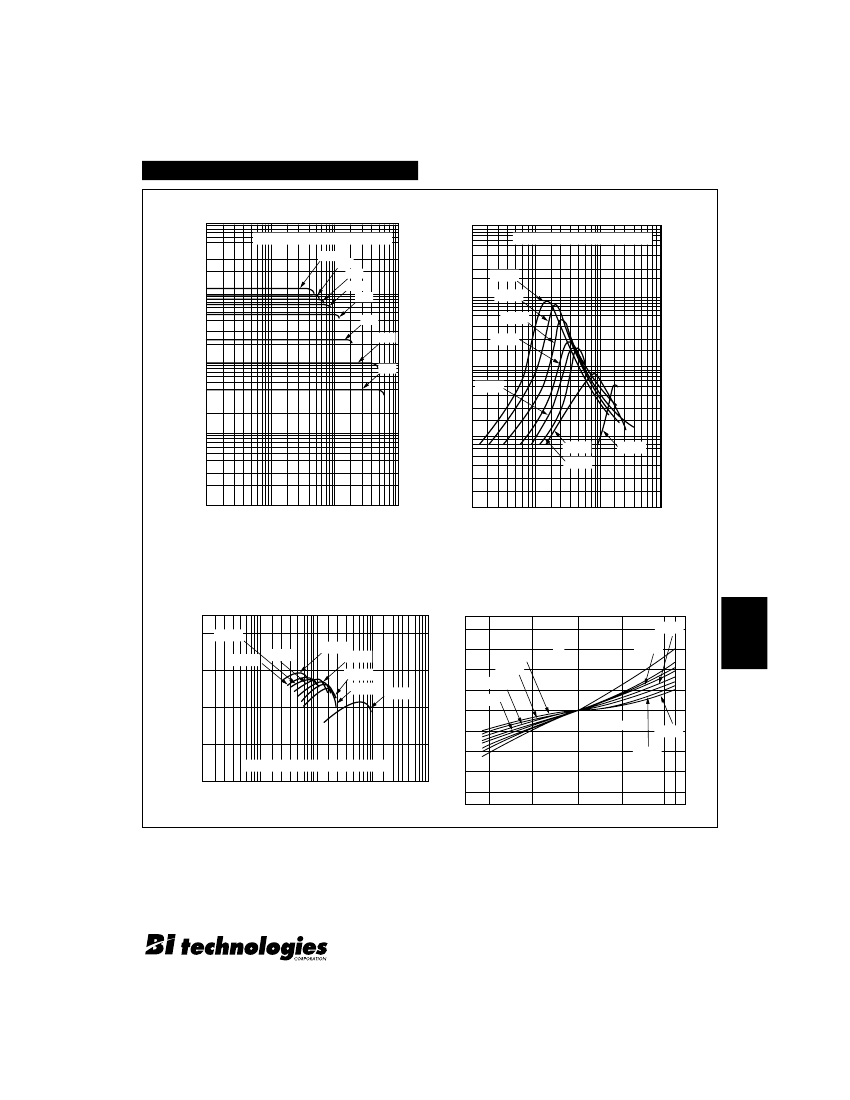

Model BML Series

BML0603-270K Related Products

	BML0603-270K	BML0603-8R2K	BML0603-5R6K	BML0603-150K	BML0603-180K	BML0603-6R8K	BML0603-100K	BML0603-220K	BML0603-120K
Description	General Purpose Inductor, 27uH, 10%, 1 Element, Ferrite-Core, SMD	General Purpose Inductor, 8.2uH, 10%, 1 Element, Ferrite-Core, SMD	General Purpose Inductor, 5.6uH, 10%, 1 Element, Ferrite-Core, SMD	General Purpose Inductor, 15uH, 10%, 1 Element, Ferrite-Core, SMD	General Purpose Inductor, 18uH, 10%, 1 Element, Ferrite-Core, SMD	General Purpose Inductor, 6.8uH, 10%, 1 Element, Ferrite-Core, SMD	General Purpose Inductor, 10uH, 10%, 1 Element, Ferrite-Core, SMD	General Purpose Inductor, 22uH, 10%, 1 Element, Ferrite-Core, SMD	General Purpose Inductor, 12uH, 10%, 1 Element, Ferrite-Core, SMD
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
core material	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE
DC Resistance	2.75 Ω	2.1 Ω	1.55 Ω	1.7 Ω	1.85 Ω	1.7 Ω	1.85 Ω	2.1 Ω	2.1 Ω
Nominal inductance(L)	27 µH	8.2 µH	5.6 µH	15 µH	18 µH	6.8 µH	10 µH	22 µH	12 µH
Inductor Applications	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Minimum quality factor (at nominal inductance)	15	25	25	15	15	25	20	15	20
self resonant frequency	12 MHz	21 MHz	26 MHz	17 MHz	15 MHz	23 MHz	20 MHz	13 MHz	18 MHz
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	YES	YES	YES	YES	YES	YES	YES	YES	YES
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Test frequency	1 MHz	4 MHz	4 MHz	1 MHz	1 MHz	4 MHz	2 MHz	1 MHz	2 MHz
Tolerance	10%	10%	10%	10%	10%	10%	10%	10%	10%
Base Number Matches	1	1	1	1	1	1	1	-	-
