BYP20-100

Description
Rectifier Diode, 1 Phase, 2 Element, 5A, 100V V(RRM), Silicon,
CategoryDiscrete semiconductor    diode
File Size177KB,8 Pages
ManufacturerYAGEO
Websitehttp://www.yageo.com/
Download Datasheet Parametric Compare View All

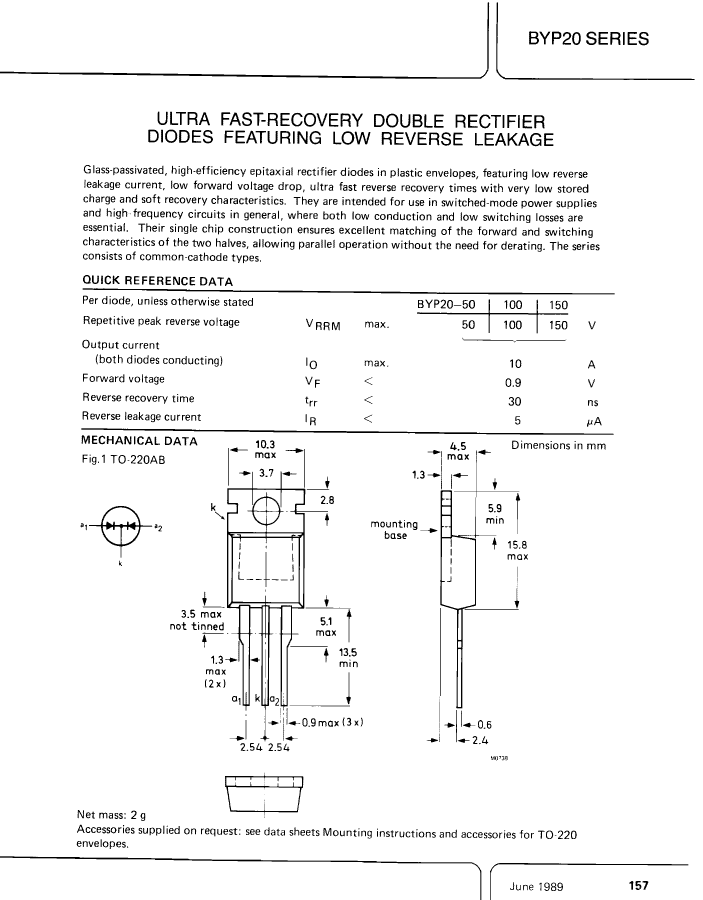

BYP20-100 Overview

Rectifier Diode, 1 Phase, 2 Element, 5A, 100V V(RRM), Silicon,

BYP20-100 Parametric

Parameter NameAttribute value
package instructionR-PSFM-T3
Reach Compliance Codeunknown
ECCN codeEAR99
applicationULTRA FAST SOFT RECOVERY
Shell connectionCATHODE
ConfigurationCOMMON CATHODE, 2 ELEMENTS
Diode component materialsSILICON
Diode typeRECTIFIER DIODE

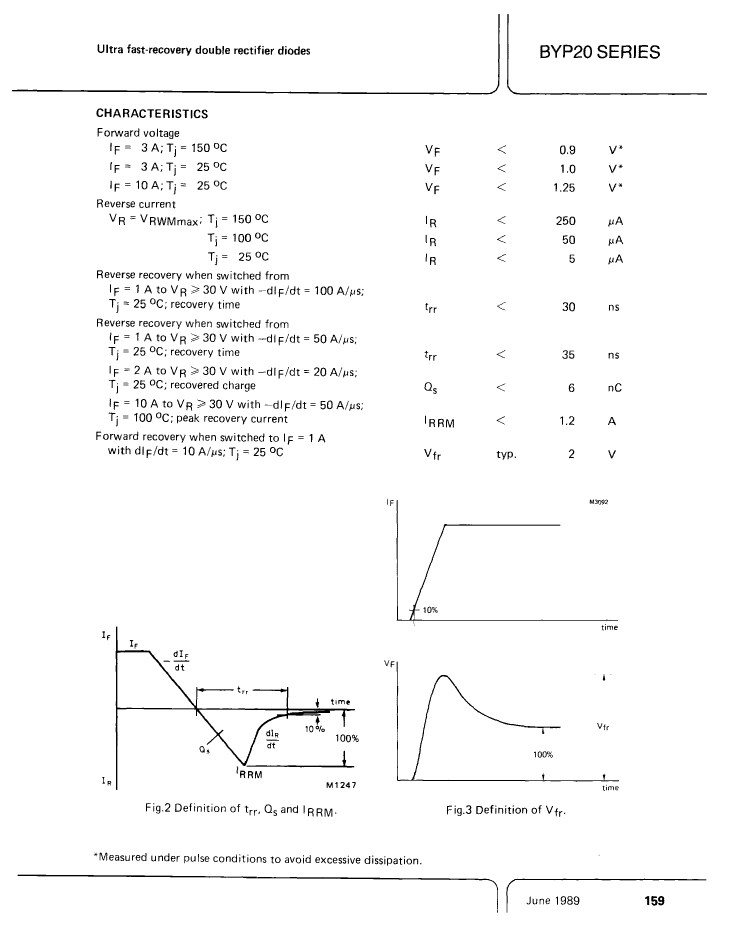

Maximum forward voltage (VF)1.25 V
JESD-30 codeR-PSFM-T3
Maximum non-repetitive peak forward current75 A
Number of components2
Phase1
Number of terminals3
Maximum operating temperature175 °C
Maximum output current5 A
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Certification statusNot Qualified

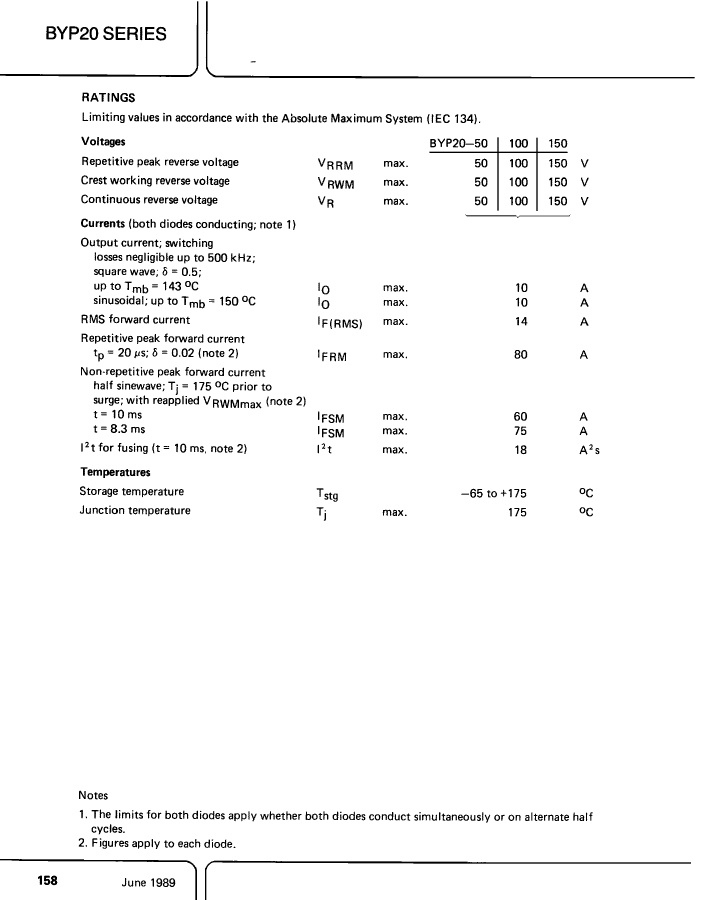

Maximum repetitive peak reverse voltage100 V
Maximum reverse current5 µA
Maximum reverse recovery time0.035 µs
surface mountNO
Terminal formTHROUGH-HOLE
Terminal locationSINGLE
Base Number Matches1

BYP20-100 Related Products

BYP20-100 BYP20-50 BYP20-150
Description Rectifier Diode, 1 Phase, 2 Element, 5A, 100V V(RRM), Silicon, Rectifier Diode, 1 Phase, 2 Element, 5A, 50V V(RRM), Silicon, Rectifier Diode, 1 Phase, 2 Element, 5A, 150V V(RRM), Silicon,
package instruction R-PSFM-T3 R-PSFM-T3 R-PSFM-T3
Reach Compliance Code unknown unknown unknown
ECCN code EAR99 EAR99 EAR99
application ULTRA FAST SOFT RECOVERY ULTRA FAST SOFT RECOVERY ULTRA FAST SOFT RECOVERY
Shell connection CATHODE CATHODE CATHODE
Configuration COMMON CATHODE, 2 ELEMENTS COMMON CATHODE, 2 ELEMENTS COMMON CATHODE, 2 ELEMENTS
Diode component materials SILICON SILICON SILICON
Diode type RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE
Maximum forward voltage (VF) 1.25 V 1.25 V 1.25 V
JESD-30 code R-PSFM-T3 R-PSFM-T3 R-PSFM-T3
Maximum non-repetitive peak forward current 75 A 75 A 75 A
Number of components 2 2 2
Phase 1 1 1
Number of terminals 3 3 3
Maximum operating temperature 175 °C 175 °C 175 °C
Maximum output current 5 A 5 A 5 A
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR RECTANGULAR
Package form FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT
Certification status Not Qualified Not Qualified Not Qualified
Maximum repetitive peak reverse voltage 100 V 50 V 150 V
Maximum reverse current 5 µA 5 µA 5 µA
Maximum reverse recovery time 0.035 µs 0.035 µs 0.035 µs
surface mount NO NO NO
Terminal form THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE
Terminal location SINGLE SINGLE SINGLE
Base Number Matches 1 1 1
