B526-60-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> B526-60-1

B526-60-1: DescriptionBridge Rectifier Diode, 1 Phase, 15A, 600V V(RRM), Silicon; CategoryDiscrete semiconductor diode; File Size70KB，2 Pages; ManufacturerEDAL; Websitehttp://www.edal.com/

Download Datasheet Parametric Compare View All

B526-60-1 Overview

Bridge Rectifier Diode, 1 Phase, 15A, 600V V(RRM), Silicon

B526-60-1 Parametric

Parameter Name	Attribute value
package instruction	R-PUFM-D4
Reach Compliance Code	unknown
Minimum breakdown voltage	600 V
Shell connection	ISOLATED
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
JESD-30 code	R-PUFM-D4
Maximum non-repetitive peak forward current	300 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	175 °C
Maximum output current	15 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	600 V
Maximum reverse current	10 µA
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER
Base Number Matches	1

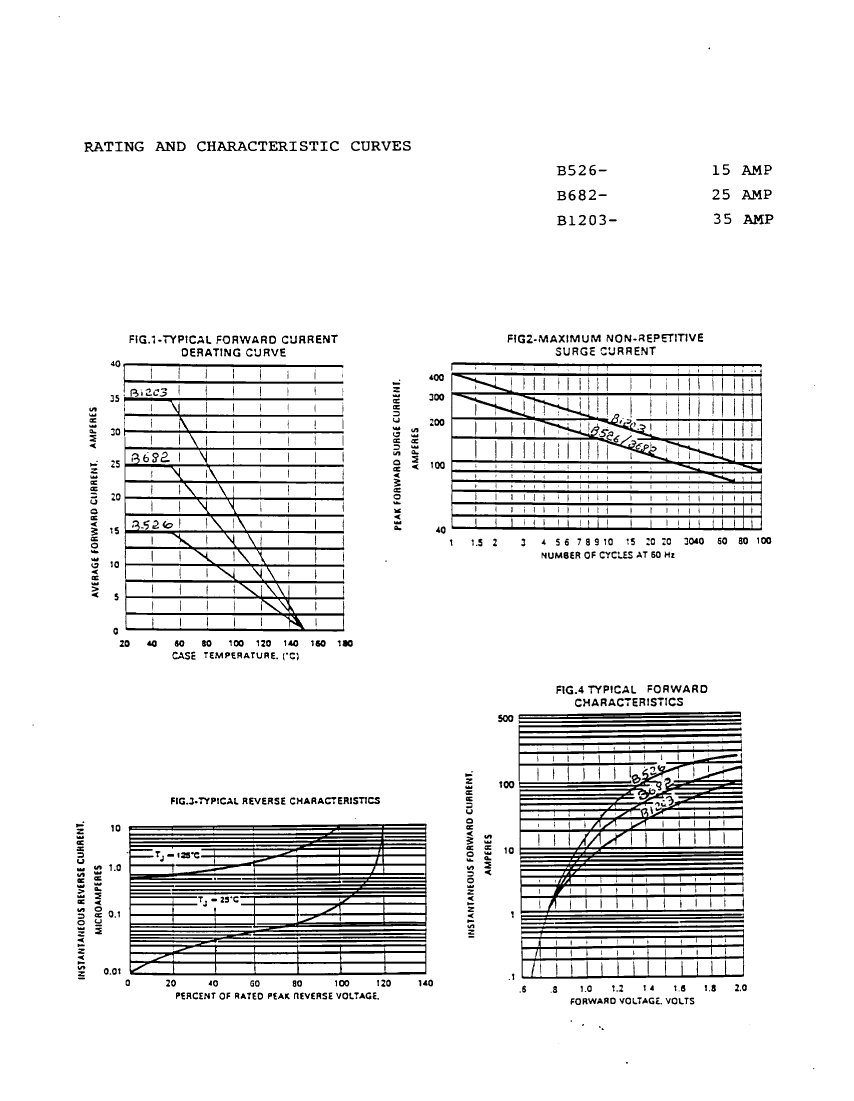

Preview

Download Datasheet

View All

B526-60-1 Related Products

	B526-60-1	B526-100-1	B526-40-1	B526-10-1	B526-70-1	B526-30-1	B526-120-1	B526-50-1	B526-80-1	B526-20-1
Description	Bridge Rectifier Diode, 1 Phase, 15A, 600V V(RRM), Silicon	Bridge Rectifier Diode, 1 Phase, 15A, 1000V V(RRM), Silicon,	Bridge Rectifier Diode, 1 Phase, 15A, 400V V(RRM), Silicon	Bridge Rectifier Diode, 1 Phase, 15A, 100V V(RRM), Silicon	Bridge Rectifier Diode, 1 Phase, 15A, 700V V(RRM), Silicon	Bridge Rectifier Diode, 1 Phase, 15A, 300V V(RRM), Silicon	Bridge Rectifier Diode, 1 Phase, 15A, 1200V V(RRM), Silicon	Bridge Rectifier Diode, 1 Phase, 15A, 500V V(RRM), Silicon	Bridge Rectifier Diode, 1 Phase, 15A, 800V V(RRM), Silicon	Bridge Rectifier Diode, 1 Phase, 15A, 200V V(RRM), Silicon
package instruction	R-PUFM-D4	R-PUFM-D4	R-PUFM-D4	R-PUFM-D4	R-PUFM-D4	R-PUFM-D4	R-PUFM-D4	R-PUFM-D4	R-PUFM-D4	R-PUFM-D4
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Minimum breakdown voltage	600 V	1000 V	400 V	100 V	700 V	300 V	1200 V	500 V	800 V	200 V
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V	1.1 V	1.1 V	1.1 V	1.1 V	1.1 V	1.1 V	1.1 V	1.1 V	1.1 V
JESD-30 code	R-PUFM-D4	R-PUFM-D4	R-PUFM-D4	R-PUFM-D4	R-PUFM-D4	R-PUFM-D4	R-PUFM-D4	R-PUFM-D4	R-PUFM-D4	R-PUFM-D4
Maximum non-repetitive peak forward current	300 A	300 A	300 A	300 A	300 A	300 A	300 A	300 A	300 A	300 A
Number of components	4	4	4	4	4	4	4	4	4	4
Phase	1	1	1	1	1	1	1	1	1	1
Number of terminals	4	4	4	4	4	4	4	4	4	4
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C
Maximum output current	15 A	15 A	15 A	15 A	15 A	15 A	15 A	15 A	15 A	15 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	600 V	1000 V	400 V	100 V	700 V	300 V	1200 V	500 V	800 V	200 V
Maximum reverse current	10 µA	10 µA	10 µA	10 µA	10 µA	10 µA	10 µA	10 µA	10 µA	10 µA
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Maker	-	-	-	-	EDAL	EDAL	EDAL	EDAL	EDAL	EDAL
