B15B-ZESK-D(LF)(SN)

Description
Board Connector, 15 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT
CategoryThe connector    The connector
File Size201KB,4 Pages
ManufacturerJST
Environmental Compliance
Download Datasheet Parametric View All

B15B-ZESK-D(LF)(SN) Overview

Board Connector, 15 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT

B15B-ZESK-D(LF)(SN) Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instructionROHS COMPLIANT
Reach Compliance Codeunknown
Other featuresSHROUDED, TOP ENTRY
Connector typeBOARD CONNECTOR
Contact to complete cooperationTIN OVER COPPER
Contact completed and terminatedTIN OVER COPPER
Contact point genderMALE
Contact materialCOPPER ALLOY
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee3
MIL complianceNO
Manufacturer's serial numberZE
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded1
OptionsGENERAL PURPOSE
Terminal pitch1.5 mm
Termination typeSOLDER
Total number of contacts15
UL Flammability Code94V-0
Base Number Matches1

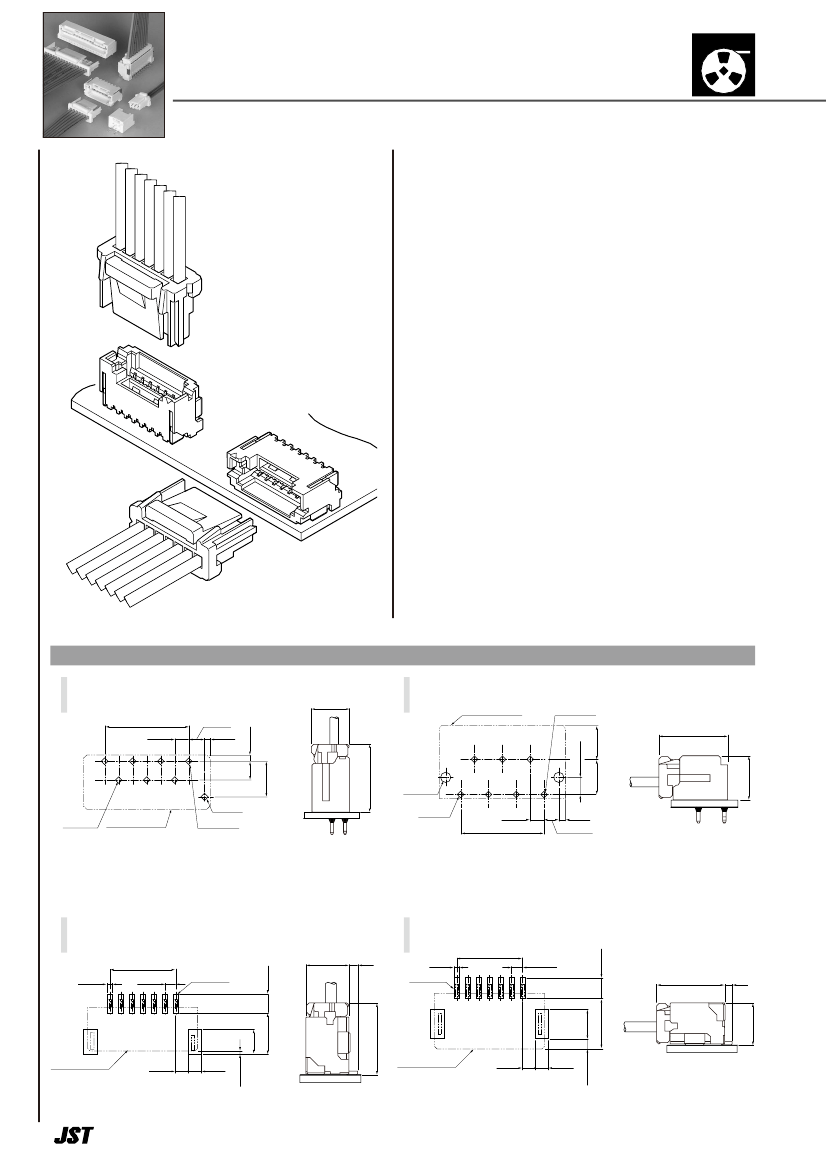

ZE
CONNECTOR
Emboss Tape
1.5mm pitch/Disconnectable Crimp style connectors
1.5mm pitch secure lock type connector.
Fork-shaped header contact provides the
good mating feeling and secure mating
operation.
• Secure locking structure
• Contact locking structure
Specifications –––––––––––––––––––
• Current rating: 2A AC, DC (AWG #24)
• Voltage rating: 100V AC, DC
• Temperature range:
-
25˚C to
+
85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/20m
max.
After environmental testing/40m
max.
• Insulation resistance: 500M
min.
• Withstanding voltage: 500V AC/minute
• Applicable wire: Conductor size/AWG #30 to #24
Insulation O.D./0.8 to 1.2mm
* Compliant with RoHS.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.

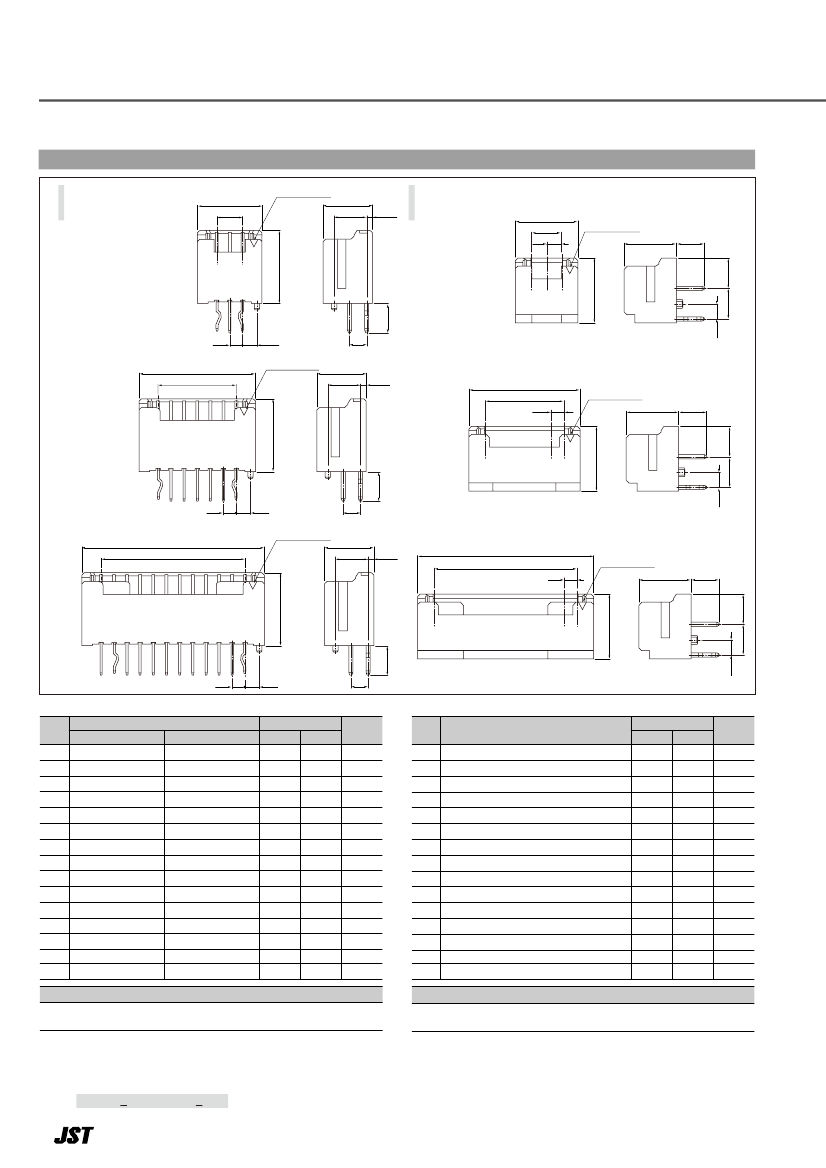

PC board layout (viewed from component side) and Assembly layout
Top entry type
(5.75)
(0.65)
A
±0.05
1.5
±0.05
1.65
±0.05
(0.55)
Side entry type
Connector outline
Circuit No.1
(3.65)
(9.7)
1.85
±0.05
±0.05
±0.05
(10.4)
±0.05
3.8
φ1.1
 0
+0.1
φ0.8
 0
+0.1
φ0.7
 0
+0.1
φ0.7
 0
+0.1
1.5
±0.05
A
±0.05
(0.7)
1.55
±0.05
Connector outline
Circuit No.1
Note: 1. Tolerances are non-cumulative:
±
0.05mm for all centers.
2. Hole dimensions differ according to the kind of PC board and piercing method.
The dimensions above should serve as a guideline. Contact JST for details.

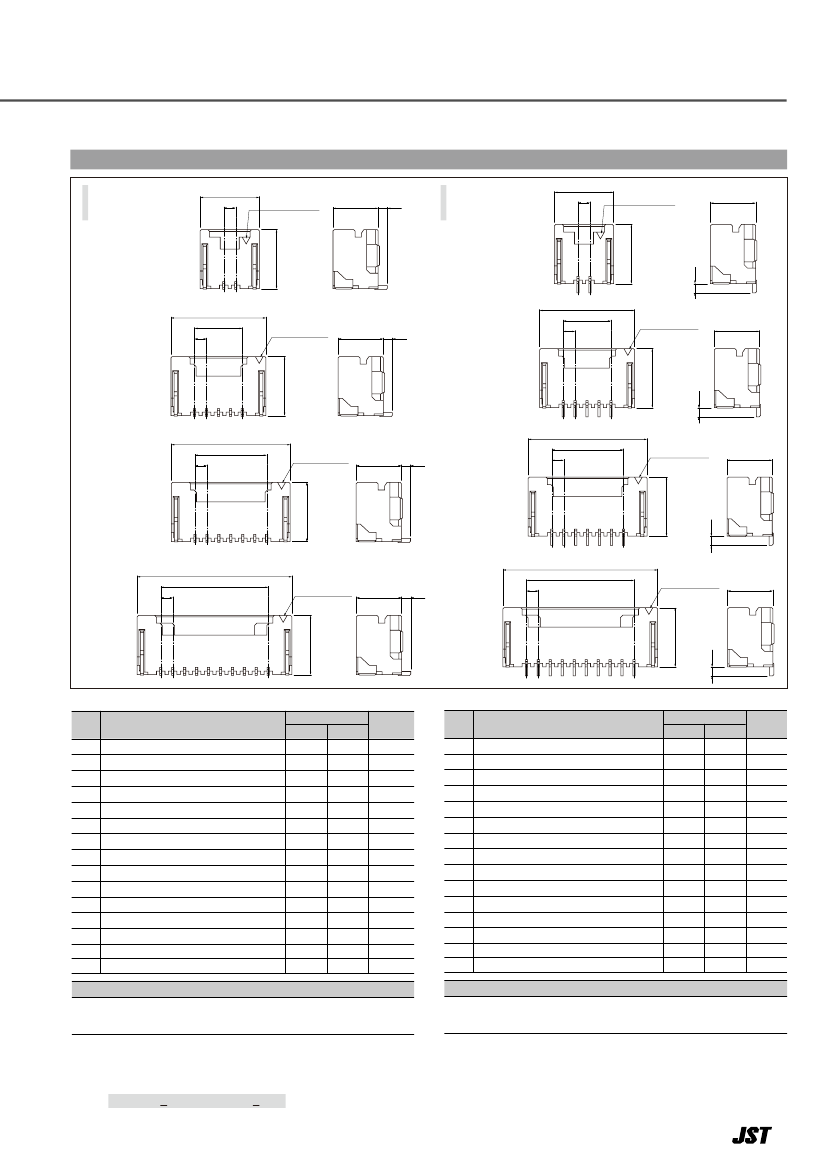

<SMT type>
Top entry type
A
0.8
MIN
±0.1
Side entry type
(5.8)
2.4
MIN
1.2
0.8
MIN
1.5
±0.05
1.5
±0.05
Circuit No.1
Circuit No.1
2.9
MIN
A
±0.1
(9.4)
1.2
6.6
±0.1
±0.1
5.5
±0.1
(9.4)
3.3
±0.1
0.4
±0.1
Connector outline
Note: 1. Tolerances are non-cumulative:
±
0.1mm for all centers.
2. The dimensions above should serve as a guideline. Contact JST for details.
1
1.45
1.7
±0.1
1.8
±0.1
Connector outline
1.7
±0.1
1.8
±0.1
±0.1
3.8
5.8
(6.3)
2
3.7
