B06BA-AIT2-1AK-K datasheet, PDF

Datasheet> All Categories > The connector> The connector> B06BA-AIT2-1AK-K

B06BA-AIT2-1AK-K: DescriptionCombination Line Connector, 6 Contact(s), Male, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size399KB，10 Pages; ManufacturerJST; Environmental Compliance

Download Datasheet Parametric Compare View All

B06BA-AIT2-1AK-K Overview

Combination Line Connector, 6 Contact(s), Male, Solder Terminal, ROHS COMPLIANT

B06BA-AIT2-1AK-K Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Other features	LOW PROFILE, TOP ENTRY
Connector type	COMBINATION LINE CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	AIT-II
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Termination type	SOLDER
Total number of contacts	6
Base Number Matches	1

Preview

Download Datasheet

View All

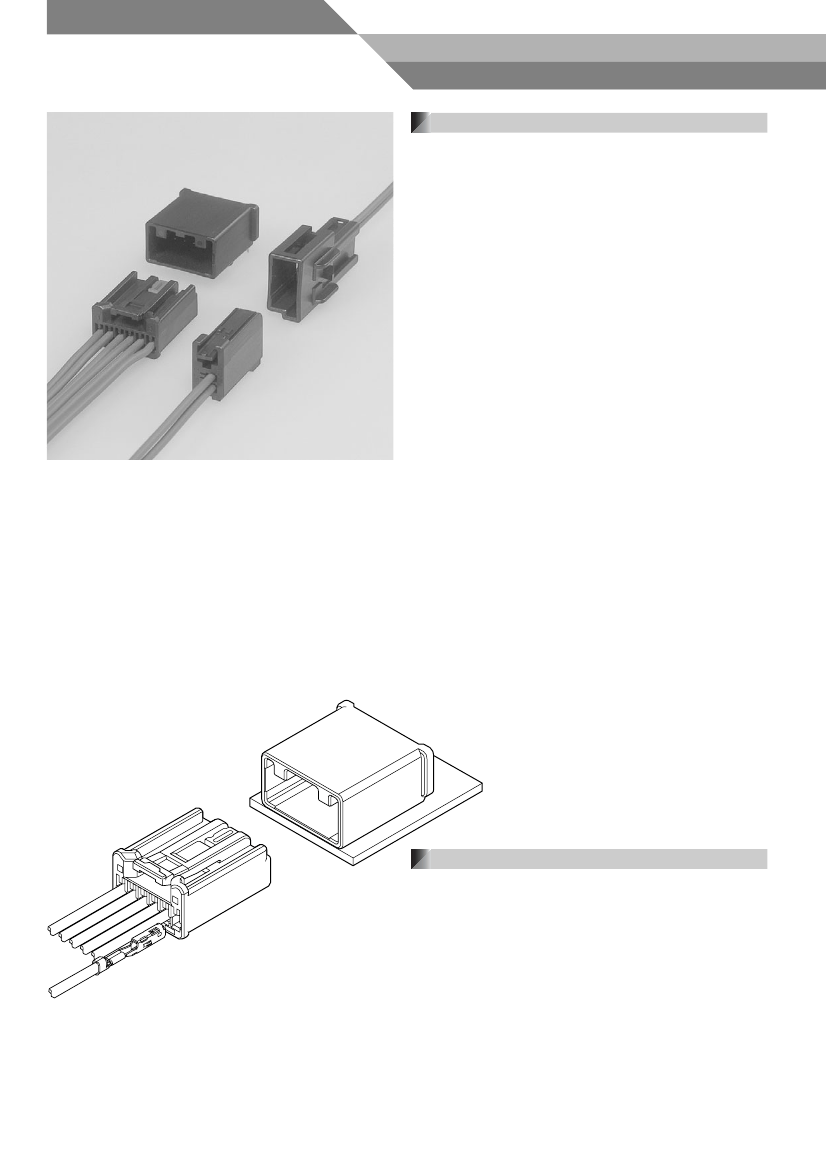

AIT-

Ⅱ

CONNECTOR

Board-to-wire/Wire-to-wire

Board-to-wire

Features

●Ultra

Low Profile Connector

Over 30% Height Reduction as compared to the Standard

USCAR Footprints.

●Variations

There are multiple varieties of AIT-

Ⅱ

Connectors which can

satisfy your needs.

0.64 unsealed low-profile connector series for use in a

wide range of automotive applications.

Specifications

¡Current

rating: 5A DC max.

¡Voltage

rating: 14V DC

¡Temperature

range: -40°C to +105°C

(including temperature rise in applying

electrical current)

¡Contact

resistance: Initial value/15mΩ max.

After environmental testing/15mΩ max.

¡Insulation

resistance: 100MΩ min.

¡Applicable

Wire: SAE/ AVSS / CAVS

0.3mm

to 0.85mm

∗

Compliant with ELV/RoHS.

∗

Contact JST for details.

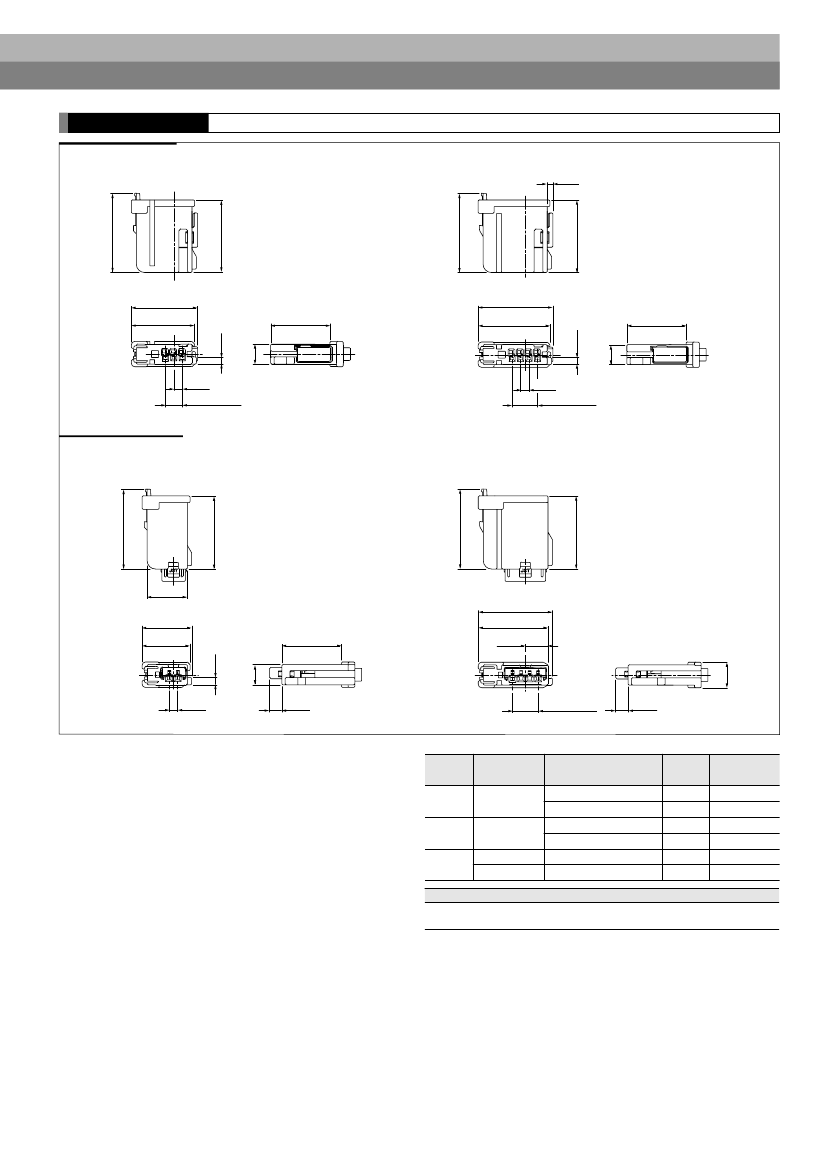

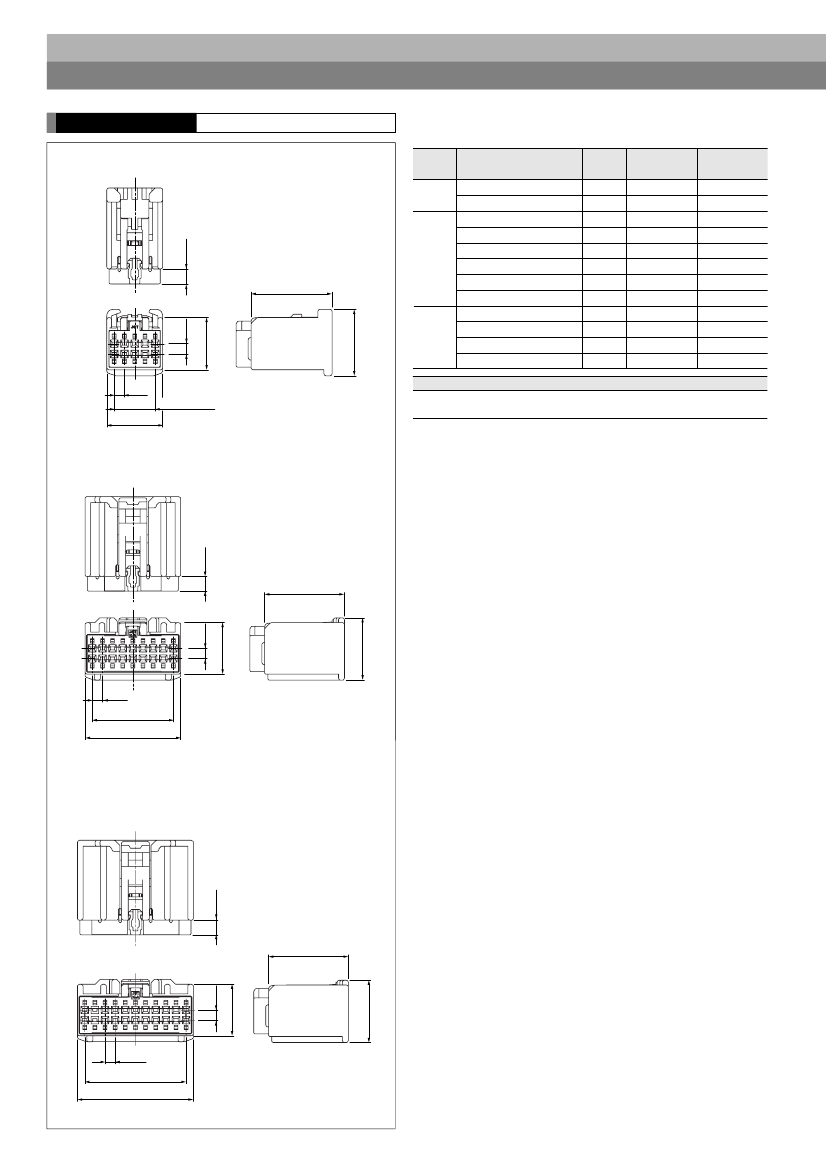

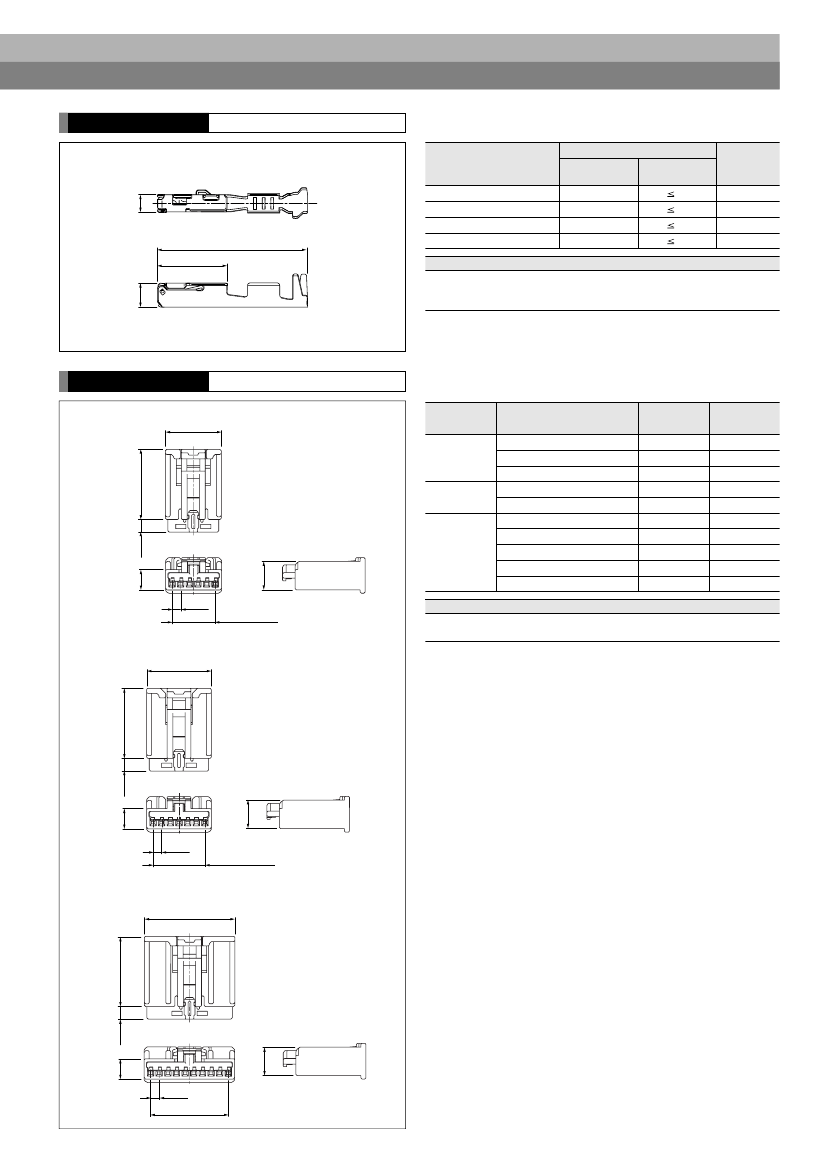

B06BA-AIT2-1AK-K Related Products

	B06BA-AIT2-1AK-K	AIT2PB-18-2AD	AIT2PB-18-2BD	AIT2PB-18-2FS	AIT2PB-22-2CN	AIT2PB-03B-1FS
Description	Combination Line Connector, 6 Contact(s), Male, Solder Terminal, ROHS COMPLIANT	Combination Line Connector, 18 Contact(s), Female, Crimp Terminal, ROHS COMPLIANT	Combination Line Connector, 18 Contact(s), Female, Crimp Terminal, ROHS COMPLIANT	Combination Line Connector, 18 Contact(s), Female, Crimp Terminal, ROHS COMPLIANT	Combination Line Connector, 22 Contact(s), Female, Crimp Terminal, ROHS COMPLIANT	Combination Line Connector, 3 Contact(s), Female, Crimp Terminal, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Other features	LOW PROFILE, TOP ENTRY	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE
Connector type	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR
Contact to complete cooperation	GOLD	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	GOLD
Contact point gender	MALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	BRASS	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	AIT-II	AIT-II	AIT-II	AIT-II	AIT-II	AIT-II
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation type	BOARD	CABLE	CABLE	CABLE	CABLE	CABLE
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Termination type	SOLDER	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	6	18	18	18	22	3
Maker	-	JST	JST	JST	JST	JST
