B12P-SHF-1AA: DescriptionBoard Connector, 12 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,; CategoryThe connector The connector; File Size85KB，4 Pages; ManufacturerJST

Download Datasheet Parametric Compare View All

B12P-SHF-1AA Overview

Board Connector, 12 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,

B12P-SHF-1AA Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	TOP ENTRY
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN OVER COPPER
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	BRASS
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.5 mm
Termination type	SOLDER
Total number of contacts	12
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

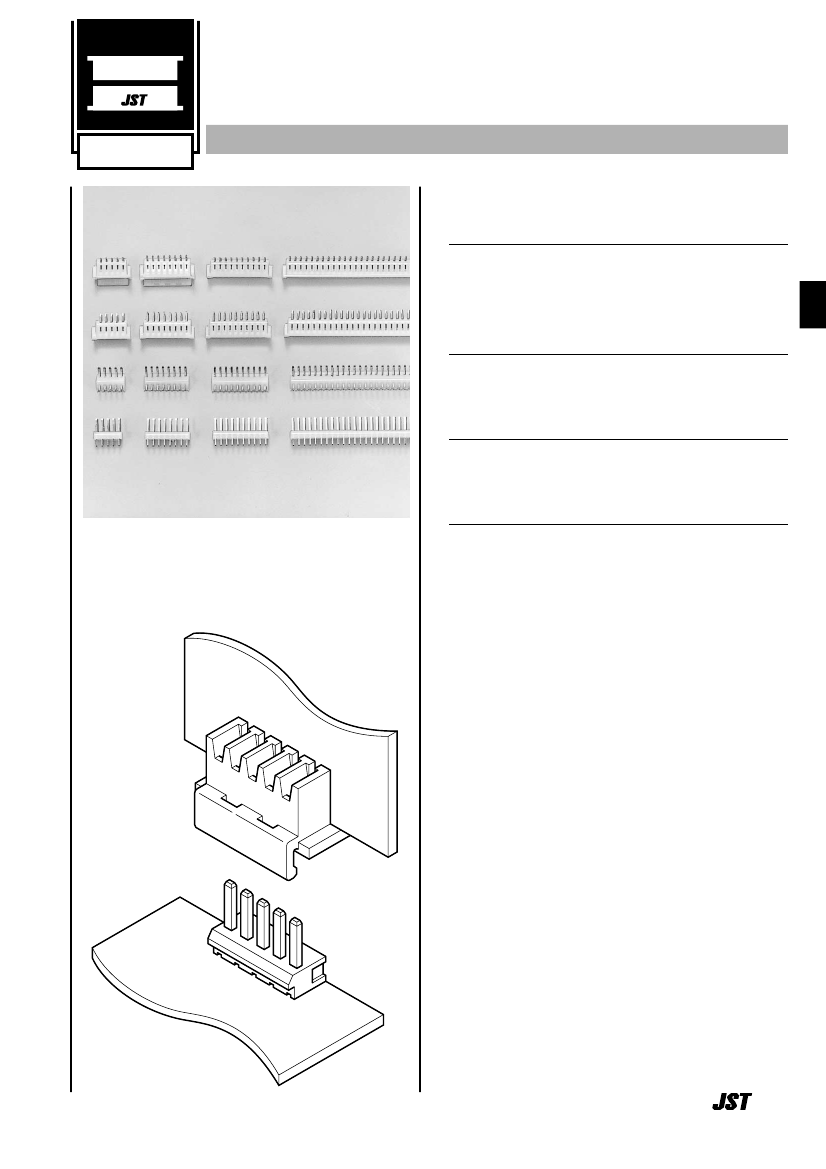

HVQ

CONNECTOR

2.5mm

(.098") pitch

Board-to-board connectors

Features ––––––––––––––––––––––––

• Superior folded beam construction

(1) This sturdy construction withstands repeated stress, resists

permanent deformation, and offers a very long service life.

(2) This contact design has a large tolerance for variations in

mating post thickness and resists deformation when pried.

• Whisker prevention

The header post is copper-undercoated and tin/lead-plated to

prevent whiskers from being generated and to provide good

solderability.

• Wide, sturdy post

The post has a large cross-sectional area to resist prying

during insertion into printed circuit boards and mating with

connector housings.

• Molded-in header

This 2.5mm (.098") pitch connector is used

to interconnect printed circuit boards in

parallel, vertically or horizontally.

The posts are molded into the insulator to provide stability

when mounted on printed circuit boards. This also prevents

flux from entering the connector during soldering.

Specifications –––––––––––––––––––

• Current rating: 3A AC, DC

• Voltage rating: 250V AC, DC

• Temperature range: -25˚C to +85˚C

(including temperature rise in applying

electrical current)

• Contact resistance: Initial value/10m

Ω

max.

After environmental testing/20m

Ω

max.

• Insulation resistance:

500M

Ω

min.

• Withstanding voltage: 1,500V AC/minute

• Applicable PC board thickness: 1.6mm(.063")

* Contact JST if Lead-Free product is required.

* Refer to "General Instruction and Notice when using

Terminals and Connectors" at the end of this catalog.

* Contact JST for details.

Standards ––––––––––––––––––––––

Recognized E60389

Certified LR20812

439

B12P-SHF-1AA Related Products

	B12P-SHF-1AA	B16P-SHF-1AA(LF)(SN)	B21P-SHF-1AA(LF)(SN)	B22P-SHF-1AA(LF)(SN)	B24P-SHF-1AA(LF)(SN)	B14P-SHF-1AA	B21P-SHF-1AA	B22P-SHF-1AA	B24P-SHF-1AA	B25P-SHF-1AA
Description	Board Connector, 12 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,	Board Connector, 16 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT	Board Connector, 21 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT	Board Connector, 22 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT	Board Connector, 24 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT	Board Connector, 14 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,	Board Connector, 21 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,	Board Connector, 22 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,	Board Connector, 24 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,	Board Connector, 25 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,
Is it lead-free?	Contains lead	Lead free	Lead free	Lead free	Lead free	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	conform to	conform to	conform to	conform to	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	TOP ENTRY	TOP ENTRY	TOP ENTRY	TOP ENTRY	TOP ENTRY	TOP ENTRY	TOP ENTRY	TOP ENTRY	TOP ENTRY	TOP ENTRY
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER
Contact completed and terminated	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	1	1	1	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	12	16	21	22	24	14	21	22	24	25
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1	1	1	1	1
ECCN code	EAR99	-	-	-	-	EAR99	EAR99	EAR99	EAR99	EAR99
