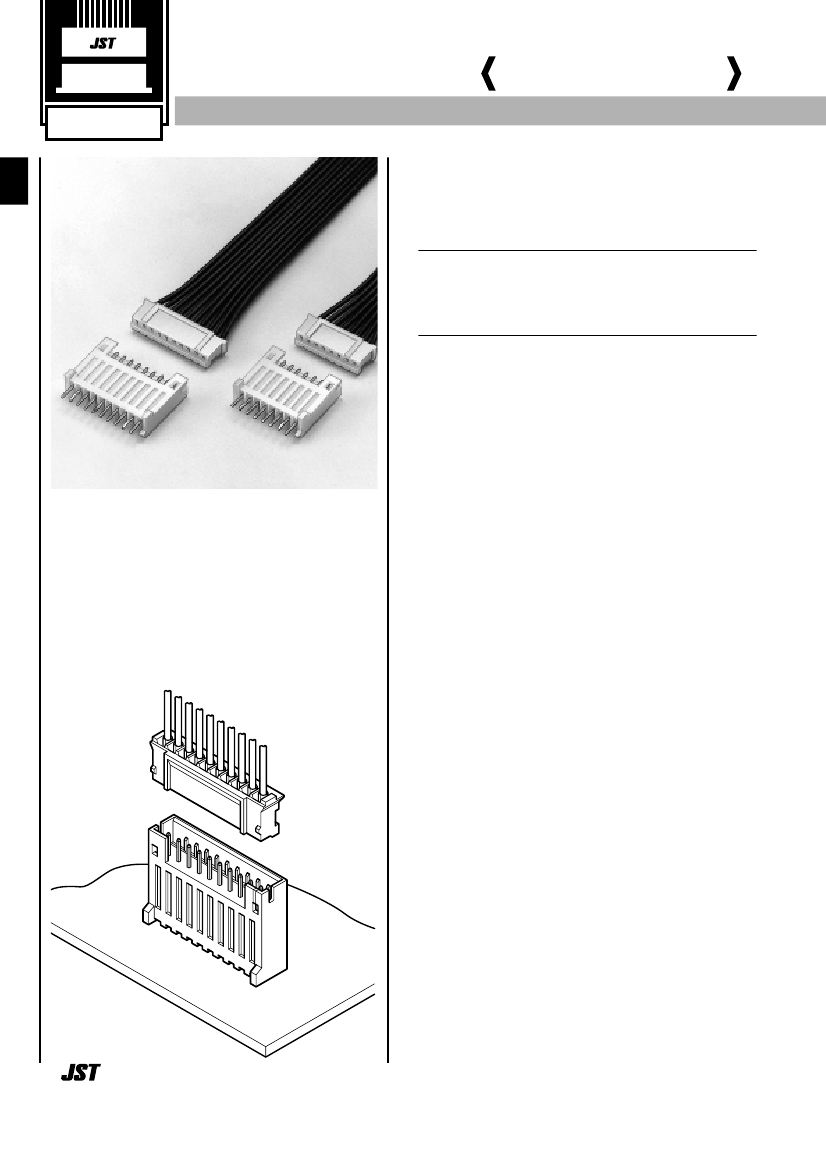

Crimp
PH
CONNECTOR
High box type
2.0mm
(.079") pitch
Disconnectable Crimp style connectors
Features ––––––––––––––––––––––––
• Header for 2.0mm (.079") pitch PH connector
for use specifically with resin coated ("potted")
PC boards
This header is tall and fully shrouded so as to prevent the resin
used to coat the PC board from coming into contact with the
mating pins.
• Interchangeability
Designed to accept either PH or KR mating sockets.
Header for 2.0mm (.079") pitch PH
connector for use specifically with resin
coated ("potted") PC boards.
28
1
2
3
4
5
6
7
8
9
Specifications –––––––––––––––––––
• Current rating: 2A AC, DC (AWG#24)
• Voltage rating: 100V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/10m
Ω
max.
After environmental testing/20m
Ω
max.
• Insulation resistance:
1,000M
Ω
min.
• Withstanding voltage: 800V AC/minute
• Applicable wire: AWG #30 to #24
• Applicable PC board thickness: 0.8 to 1.6mm(.031" to .063")
* Contact JST for details
Standards ––––––––––––––––––––––
0
1
2
Recognized E60389
Certified LR20812
R75087
PH
CONNECTOR High box type
Contact –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Model No.
mm
SPH-002T-P0.5S
2
Applicable wire
AWG #
30 to 24
Insulation O.D. mm(in.)
0.9 to 1.5(.035 to .059)
Q'ty /
reel
8,000
0.05 to 0.22
Material and Finish
5.7(.224)
2.85(.112)
2.05(.081)
Phosphor bronze, tin-plated
1.0
(.039)
2.08
(.082)
1.5
(.059)
Housing –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Cir-
cuits
2
3
Model No.
PHR- 2
PHR- 3
PHR- 4
PHR- 5
PHR- 6
PHR- 7
PHR- 8
PHR- 9
PHR-10
PHR-11
PHR-12
PHR-13
Dimensions mm(in.)
A
2.0( .079)
4.0( .157)
6.0( .236)
8.0( .315)
10.0( .394)
12.0( .472)
14.0( .551)
16.0( .630)
18.0( .709)
20.0( .787)
22.0( .866)
24.0( .945)
B
5.8( .228)
7.8( .307)
9.8( .386)
11.8( .465)
13.8( .543)
15.8( .622)
17.8( .701)
19.8( .780)
21.8( .858)
23.8( .937)
25.8(1.016)
27.8(1.095)
Q'ty /
box
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
B
1.9
(.075)
2.0
(.079)
A
0.5
(.020)
4.5(.177)
4
5
6
7
8
9
10
11
12
13
6.35(.250)
0.6(.024)
Material and Finish
Nylon 66, UL94V-0, natural (white)
<For reference>
As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
ex.
PHR-2-oo-
(blank)…natural (white)
BK…black R…red BL…blue Y…yellow
29
PH
CONNECTOR High box type
Shrouded header –––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Cir-
cuits
2
3
4
1
1.3
(.051)
2.0
(.079)
A
0.5
(.020)
4.5(.177)
1.7
(.067)
Model No.
BH 2B-PH
BH 3B-PH
BH 4B-PH
BH 5B-PH
BH 6B-PH
BH 7B-PH
BH 8B-PH
BH 9B-PH
BH10B-PH
BH11B-PH
BH12B-PH
BH13B-PH
Dimensions mm(in.)
A
2.0( .079)
4.0( .157)
6.0( .236)
8.0( .315)
10.0( .394)
12.0( .472)
14.0( .551)
16.0( .630)
18.0( .709)
20.0( .787)
22.0( .866)
24.0( .945)
B
5.9( .232)
7.9( .311)
9.9( .390)
11.9( .469)
13.9( .547)
15.9( .626)
17.9( .705)
19.9( .783)
21.9( .862)
23.9( .941)
25.9(1.020)
27.9(1.098)
Q'ty /
box
800
480
400
390
300
240
240
200
200
150
150
100
5
6
7
8
9
10
11
12
15.0(.591)
13
Material and Finish
Post: Brass, copper-undercoated, tin/lead-plated
Wafer: Nylon 66, UL94V-0, natural (white)
1.5(.059)
0.8(.032)dia.
1.95
(.077)
B
1.4
(.055)
1.5(.059)
6.0(.236)
[3.6(.142)]
<For reference>
As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
ex.
BH2B-PH-oo-
(blank)…natural (white)
K…black R…red E…blue Y…yellow
PC board layout
(viewed from component side)
and Assembly layout ––––––––––––––––––
4.5
(.177)
1.0
(.039
0.1
2.0
±
0.05
0.8
+ 0
0
(.079
±
.002)
(.031
+.004
)dia.
+ 0.1
0
+.004
0
)dia.
1.4
±
0.05
(.055
±
.002)
Note:
1. Tolerances are non-cumulative: ±0.05mm(±.002") for all centers.
2. Hole dimensions differ according to the kind of printed circuit board and piercing method. If printed circuit boards made of hard material such as FR-4 are used,
the hole dimensions should be larger. The hole dimensions shown above are reference values.
Contact JST for details.
Applicator for the semi-automatic press AP-K2N –––––––––––––––––––––––––––––––
Contact
SPH-002T-P0.5S
Crimp applicator MKS-L
with safety cover
without safety cover
APLMK SPH002-05S
APLNC SPH002-05S
1.5
±
0.05
(.059
±
.002)
Compact crimp applicator MKS-LS
with safety cover
without safety cover
APLMKLS SPH002-05S
APLLSNC SPH002-05S
17.0(.669)
15.0(.591)
Strip-crimp applicator MKS-SC
with safety cover
APLSC SPH002-05S
30
