BZV16/Z0000/D3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> BZV16/Z0000/D3

BZV16/Z0000/D3: DescriptionMains Power Connector, Male, Solder Terminal; CategoryThe connector The connector; File Size59KB，1 Pages; ManufacturerBULGIN; Websitehttp://www.bulgin.co.uk/; Environmental Compliance

Download Datasheet Parametric View All

BZV16/Z0000/D3 Overview

Mains Power Connector, Male, Solder Terminal

BZV16/Z0000/D3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	SNAP
DIN compliance	NO
IEC compliance	YES
MIL compliance	NO
Manufacturer's serial number	BZV
Installation type	PANEL
Options	GENERAL PURPOSE
Termination type	SOLDER
Total number of contacts	3
Base Number Matches	1

Preview

Download Datasheet

View All

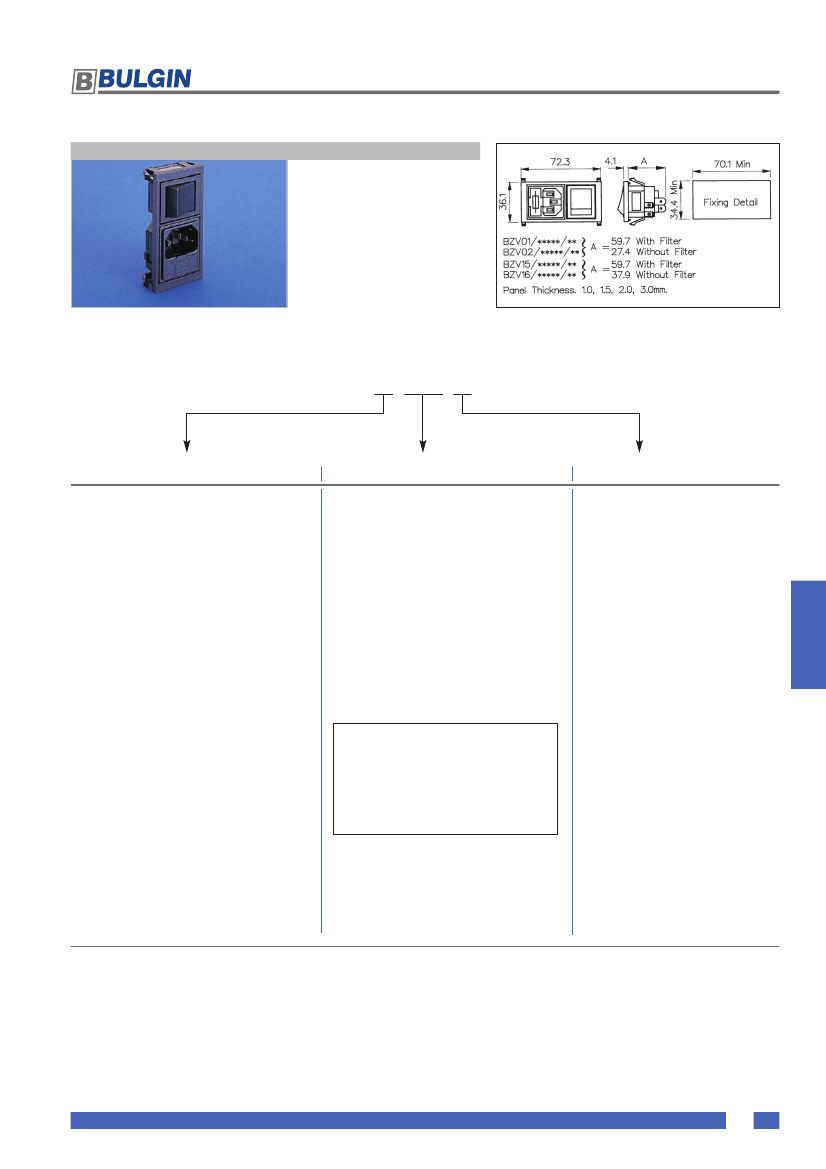

C14 IEC Fused Inlet - Vertical

VERTICAL MODULE ARRANGEMENT

Fused Inlet with 2.8mm or

6.3mm tags

Double Pole Switch or

Indicator Variations

Filtered Inlet Option

Options of I/O marked

switches

BZV01/Z0000/10

How to Order

BZV xx / xxxxx / xx

Type of Inlet / Outlet

Single Fused C14 Power Inlet (cold condition),

6.3 or 2.8mm tabs:

= PF0011/63

= PF0011/28

Twin Fused C14 Power Inlet (cold condition),

6.3 or 2.8mm tabs:

= PF0033/63

= PF0033/28

Filtered or Non Filtered Inlet

Z0000 = Non Filtered

Axxxx = Standard

Bxxxx = Medical (Twin Fuse Version only)

Combination of Other Components

Neon Indicator:

= Red Neon Indicator

Double Pole Switch:

Double Pole Neon Switch:

= D.P Red Neon Switch

= D.P Green Neon Switch

Double Pole High Inrush Switch:

= D.P High Inrush Switch

For Filtered inlet use 6th to 9th characters from filter

ordering code see pages 127-129.

E.g. BZV01/A0620/10

Double Pole Switch Marked I/O:

= D.P Switch (I/O)

Double Pole Neon Switch Marked (I/O):

= D.P Red Neon Switch (I/O)

= D.P Green Neon Switch (I/O)

Double Pole High Inrush Switch Marked

(I/O):

= D.P High Inrush Switch (I/O)

= D.P High Inrush Green Neon Switch

(I/O)

Note: For technical details of individual components please see page 106

www.elektron-bulgin.com

109

IEC CONNECTORS

= D.P Switch
