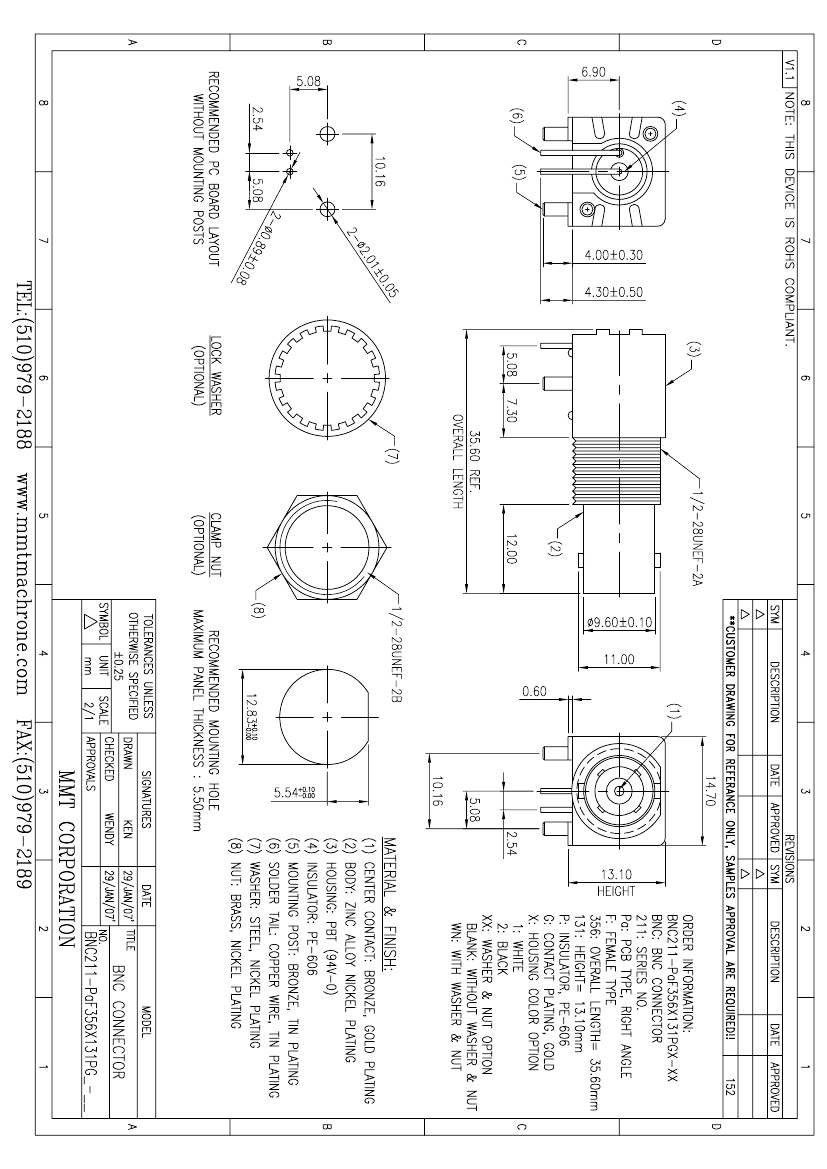

Preview

BNC211-PAF356X131PG1-WN: DescriptionRF BNC Connector, 1 Contact(s), Female, Panel Mount, Board Mount, Solder Terminal, Jack; CategoryThe connector The connector; File Size68KB，1 Pages; ManufacturerMMT Corp; Websitehttp://www.mmtmachrone.com

Download Datasheet Parametric Compare View All

BNC211-PAF356X131PG1-WN Overview

RF BNC Connector, 1 Contact(s), Female, Panel Mount, Board Mount, Solder Terminal, Jack

BNC211-PAF356X131PG1-WN Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
body width	0.516 inch
subject depth	1.402 inch
body length	0.579 inch
Body/casing type	JACK
Connector type	RF BNC CONNECTOR
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact style	COAX
Insulator color	WHITE
insulator material	POLYBUTYLENE TEREPHTHALATE
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
Panel mounting	YES
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	ZINC
Terminal length	0.169 inch
Termination type	SOLDER
Total number of contacts	1
Base Number Matches	1

Preview

Download Datasheet

View All

BNC211-PAF356X131PG1-WN Related Products

	BNC211-PAF356X131PG1-WN	BNC211-PAF356X131PG1	BNC211-PAF356X131PG2-WN	BNC211-PAF356X131PG2
Description	RF BNC Connector, 1 Contact(s), Female, Panel Mount, Board Mount, Solder Terminal, Jack	RF BNC Connector, 1 Contact(s), Female, Panel Mount, Board Mount, Solder Terminal, Jack	RF BNC Connector, 1 Contact(s), Female, Panel Mount, Board Mount, Solder Terminal, Jack	RF BNC Connector, 1 Contact(s), Female, Panel Mount, Board Mount, Solder Terminal, Jack
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
body width	0.516 inch	0.516 inch	0.516 inch	0.516 inch
subject depth	1.402 inch	1.402 inch	1.402 inch	1.402 inch
body length	0.579 inch	0.579 inch	0.579 inch	0.579 inch
Body/casing type	JACK	JACK	JACK	JACK
Connector type	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR
Contact completed and terminated	TIN	TIN	TIN	TIN
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
Contact style	COAX	COAX	COAX	COAX
Insulator color	WHITE	WHITE	BLACK	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
Number of ports	1	1	1	1
Panel mounting	YES	YES	YES	YES
Guideline	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	NICKEL	NICKEL	NICKEL	NICKEL
Shell material	ZINC	ZINC	ZINC	ZINC
Terminal length	0.169 inch	0.169 inch	0.169 inch	0.169 inch
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	1	1	1	1
Base Number Matches	1	1	1	1
