BNC2112002 datasheet, PDF - EEWORLD Datasheet

BNC2112002: DescriptionRF BNC Connector, 1 Contact(s), Male, Cable Mount, Crimp Terminal, Guide Slot, Plug; CategoryThe connector The connector; File Size731KB，3 Pages; ManufacturerXian Connector Technology Ltd.

Download Datasheet Parametric View All

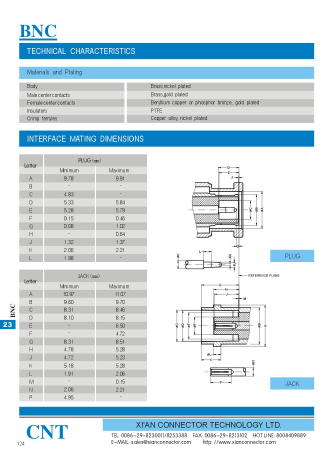

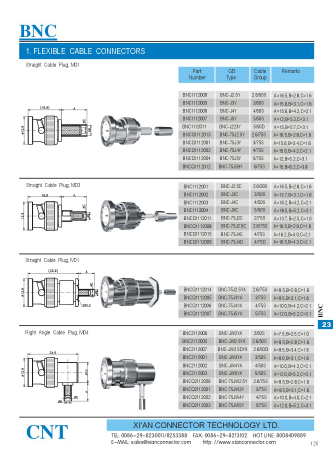

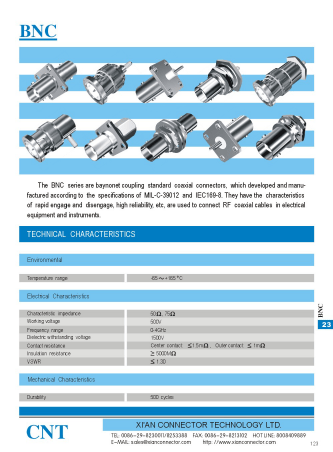

BNC2112002 Overview

RF BNC Connector, 1 Contact(s), Male, Cable Mount, Crimp Terminal, Guide Slot, Plug

Parameter Name	Attribute value
Reach Compliance Code	unknown
subject depth	0.969 inch
Body diameter	0.547 inch
Body/casing type	PLUG
Connector type	RF BNC CONNECTOR
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact resistance	1.5 mΩ
Contact style	COAX
Dielectric withstand voltage	1500VAC V
Durability	500 Cycles
Insulation resistance	5000000000 Ω
insulator material	POLYTETRAFLUOROETHYLENE
Installation option 1	GUIDE SLOT
Installation method	RIGHT ANGLE
Installation type	CABLE
Number of ports	1
Maximum operating frequency	4 GHz
Maximum operating temperature	165 °C
Minimum operating temperature	-65 °C
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	BRASS
Termination type	CRIMP
Total number of contacts	1
voltage standing wave ratio	1.3
Base Number Matches	1
