FQ7050B-6.000MHZ-CCM10011000 datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> FQ7050B-6.000MHZ-CCM10011000

FQ7050B-6.000MHZ-CCM10011000: DescriptionParallel - Fundamental Quartz Crystal, 6MHz Nom, ROHS COMPLIANT, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size164KB，2 Pages; ManufacturerFOX [Fox Electronics]; Environmental Compliance

Download Datasheet Parametric View All

FQ7050B-6.000MHZ-CCM10011000 Overview

Parallel - Fundamental Quartz Crystal, 6MHz Nom, ROHS COMPLIANT, SMD, 4 PIN

FQ7050B-6.000MHZ-CCM10011000 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT, SMD, 4 PIN
Reach Compliance Code	compliant
Other features	TAPE AND REEL
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	500 µW
frequency stability	0.003%
frequency tolerance	30 ppm
load capacitance	10 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	6 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L7.0XB5.0XH1.3 (mm)/L0.276XB0.197XH0.051 (inch)
Series resistance	80 Ω
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

All Quartz SMD Crystal

Model: FQ7050 Series

Page 1 of 2

RoHS Compliant / Pb Free

Rev. 3/23/2010

http://www.foxonline.com/need_a_sample.htm

FEATURES

• Surface Mount All Quartz

• Low Cost

• Ultra Low Profile

• Fundamental

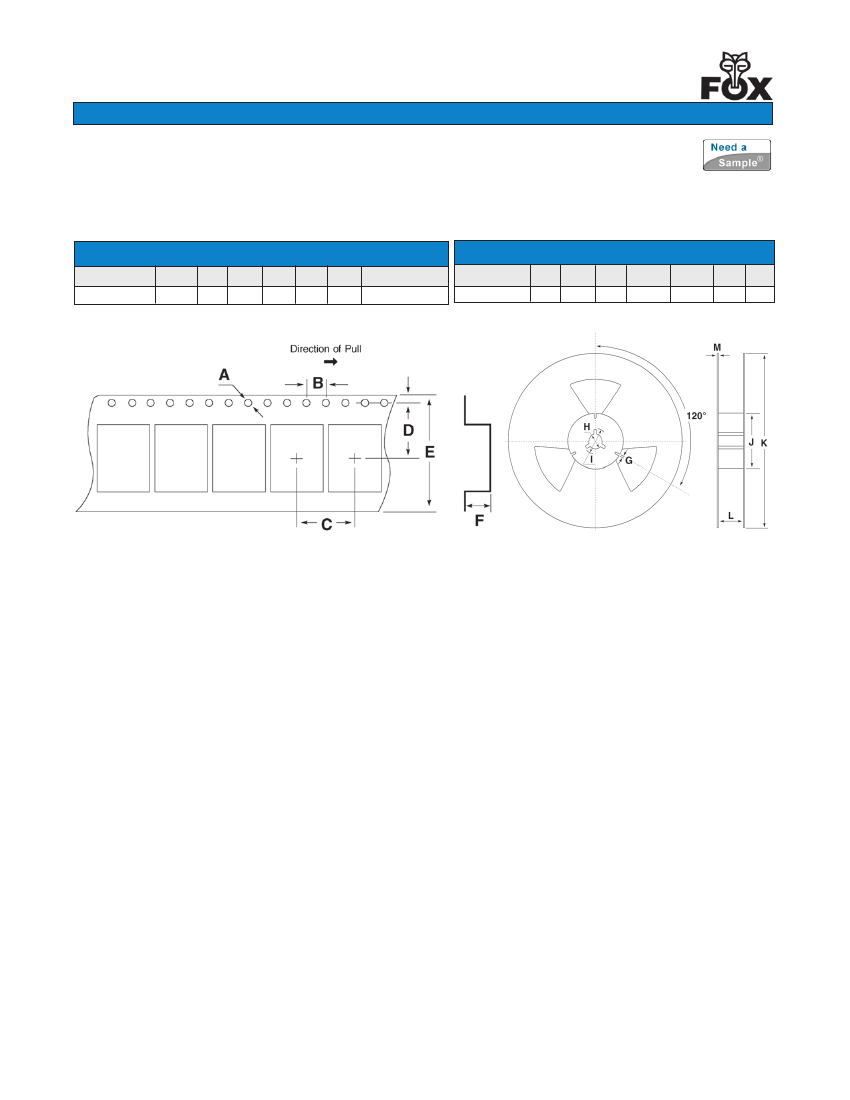

• Tape and Reel (1,000 pcs STD)

OPTIONS

• Tolerances to ± 20 PPM

• Stabilities to ± 20 PPM

• Temp Range to -40ºC ~ +85ºC

PART NUMBER SELECTION

•• PART NUMBER

Learn More - Internet Required

Part Number

736A-Frequency-xxxxx

736B-Frequency-xxxxx

Model Number

FQ7050A

FQ7050B

Frequency Range (MHz)

6.000 ~ 40.000*

F Q 7 0 50_

7 ±0.3

Top

5 ±0.3

• STANDARD SPECIFICATIONS

PARAMETERS

Frequency Range

(Fo)

Frequency Tolerance @ 25ºC

Frequency Stability, ref @ 25ºC

Over Operating Temp Range

Temperature Range

Operating (T

OPR

)

Storage

STG

)

Shunt Capacitance

(Co)

Load Capacitance

)

Drive Level

Aging per year

MAX

(unless otherwise noted)

6.000 ~ 40.000 MHz*

±30 PPM

0ºC ~ +70ºC

-40ºC ~ +85ºC

7 pF

10 pF ~ Series

(Customer Specified)

0.5 mW

±5 PPM

R ecom m ended

S olde r P a d Layout

2 .8

2 .4

F Q 7 0 50A

1 .3 m ax

F Q 7 0 50B

1 .6

2 .5

1 .1

1 .4

3 .8

2 .1

R ecom m ended

S older P a d Layout

2 .1

1 .7

3 .8

Termination Finish: Au

All dimensions are in millimeters.

RoHS Compliance Status: Compliant

Other tolerances, stabilities & operating temperature ranges available. Consult Fox Customer

Service for specific requirements.

NOTE: The above specifications, having been carefully prepared and checked, is believed to be

accurate at the time of publication; however , no responsibility is assumed by Fox Electronics

for inaccuracies.

* Up to 40.000 MHz is available if this device is replacing an existing 5 x 7mm package. For

new designs, above 12.000MHz, we recommend the smaller (FQ6035 & FQ5032) packages.

Small quantities above 12MHz are only available in the smaller sizes.

If you have any questions, please call Customer Support at 1-888-GET-2-FOX.

All specifications subject to change without notice.

Frequency Range

(MHz)

6.000 ~ 16.000

16.000+ ~ 40.000

Operating Mode

Fundamental

Max ESR

Ω

FOXElectronics

5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554

http://www.foxonline.com

EMEA

Tel/Fax: +44 .1767.312632 |

Asia

Hong Kong Tel: +852.2854.4285 Fax +852.2854.4282 |

Japan

Tel: +81.3.3374/2079 Fax: +81.3.3374.5221
