MAPDCC0020
Low Cost Six-Way SMT Power Divider
1700 – 2000 MHz
Features
•
•
•
•
•
•
•
•
•
•
Small Size, Low Profile
Superior Repeatability (Lot-to-Lot Variation)
Typical Isolation 25 dB
Typical Insertion Loss 1.0 dB
Low Cost
Lead-Free SOIC-16 Package
100% Matte Tin Plating over Copper
Halogen-Free “Green” Mold Compound
260°C Reflow Compatible
RoHS* Compliant Version of DS56-0006
Rev. V2
Functional Block Diagram
1
Description
M/A-COM’s MAPDCC0020 is an IC-based mono-
lithic power splitter/combiner in a low cost SOIC-16
plastic package. This 6-way power divider is ideally
suited for applications where PCB real estate is at a
premium and standard packaging for automated as-
sembly and low cost are critical. Typical applications
include base stations, portables, and peripheral de-
vices (PCMCIA cards) for wireless standards such
as PCS, PCN, DECT, PHS, and DCS-1800. Avail-
able in Tape and Reel.
The MAPDCC0020 is fabricated using passive-
integrated circuit process. This process features full-
chip passivation for increased performance and reli-
ability.
1.
All unused pins must be RF and DC grounded.
Pin Configuration
Pin No.
1
2
Function
GND
RF 3 (OUT)
GND
RF 2 (OUT)
GND
RF 1 (OUT)
GND
RF IN
Pin No.
9
10
11
12
13
14
15
16
Function
GND
GND
RF 6 (OUT)
GND
RF 5 (OUT)
GND
RF 4 (OUT)
GND
Ordering Information
Part Number
MAPDCC0020
MAPDCC0020-TR
MAPDCC0020-TB
3
4
Package
Bulk Packaging
1000 piece reel
Sample Test Board
5
6
7
8
Note: Reference Application Note M513 for reel size
information.
* Restrictions on Hazardous Substances, European Union Directive 2002/95/EC.
1
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MAPDCC0020
Low Cost Six-Way SMT Power Divider
1700 – 2000 MHz
Rev. V2
Electrical Specifications: T
A
= 25°C, Z
0
= 50Ω
Parameter
Insertion Loss above 7.8 dB
1700 – 2000 MHz
1850 – 1910 MHz
Isolation
1700 – 2000 MHz
1850 – 1910 MHz
VSWR
Input
1700 – 2000 MHz
1850 – 1910 MHz
Output
1700 – 2000 MHz
1850 – 1910 MHz
Amplitude Balance
1700 – 2000 MHz
1850 – 1910 MHz
Phase Balance
1700 – 2000 MHz
1850 – 1910 MHz
Units
dB
dB
dB
dB
—
—
—
—
dB
dB
Deg.
Deg.
Min
—
—
18
21
—
—
—
—
—
—
—
—
Typ
1.3
1.0
25
26
1.7:1
1.3:1
1.3:1
1.1:1
0.8
1.0
10
8
Max
1.8
1.5
—
—
2.0:1
1.7:1
1.7:1
1.3:1
1.3
1.3
20
16
Absolute Maximum Ratings
2,3
Parameter
Input Power
4
Handling Procedures
Please observe the following precautions to avoid
damage:
Absolute Maximum
1 W CW
-40°C to +85°C
-65°C to +150°C
Operating Temperature
Storage Temperature
Static Sensitivity
GMIC Circuits are sensitive to electrostatic
discharge (ESD) and can be damaged by static
electricity. Proper ESD control techniques should
be used when handling these devices.
2. Exceeding any one or combination of these limits may cause
permanent damage to this device.
3. M/A-COM does not recommend sustained operation near
these survivability limits.
4. With internal load dissipation of 0.125 W maximum.
2
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MAPDCC0020
Low Cost Six-Way SMT Power Divider
1700 – 2000 MHz

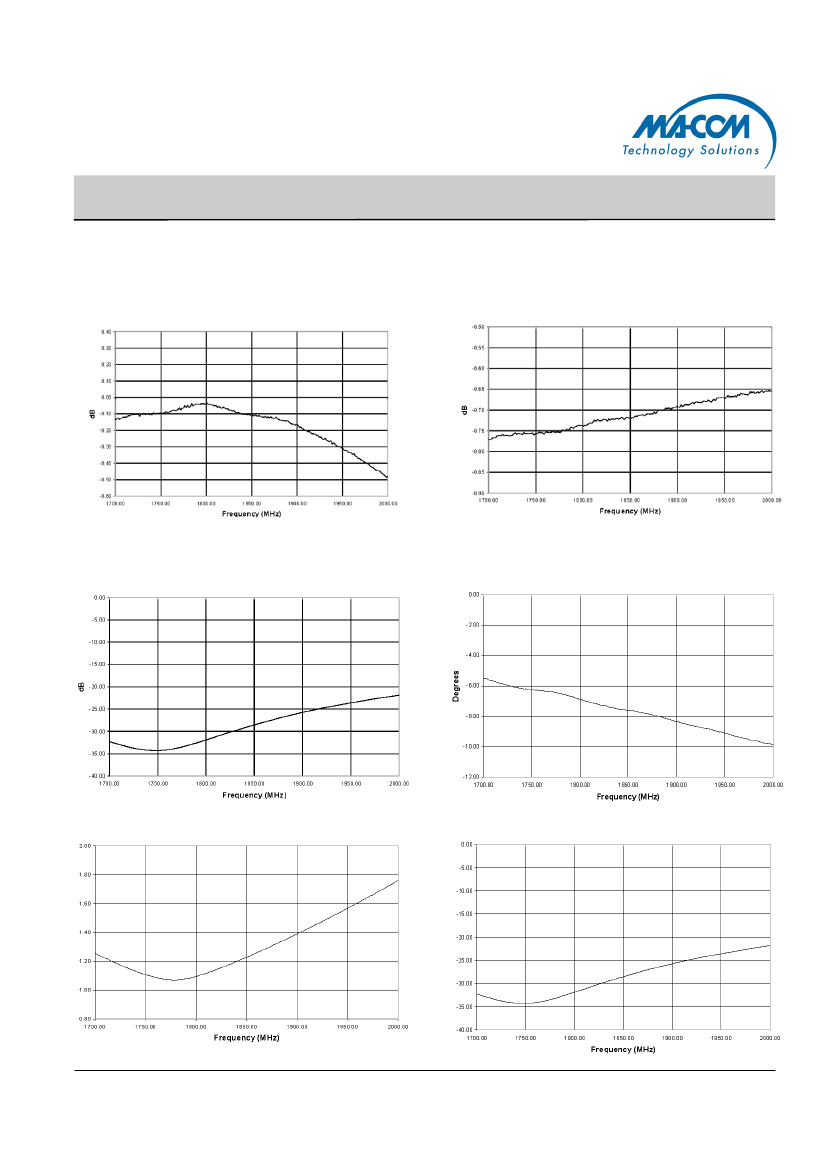

Typical Performance Curves
Insertion Loss vs. Frequency
Amplitude Imbalance vs. Frequency
Rev. V2
Isolation vs. Frequency
Phase Imbalance vs. Frequency
Input VSWR vs. Frequency
Output VSWR vs. Frequency
3
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MAPDCC0020
Low Cost Six-Way SMT Power Divider
1700 – 2000 MHz

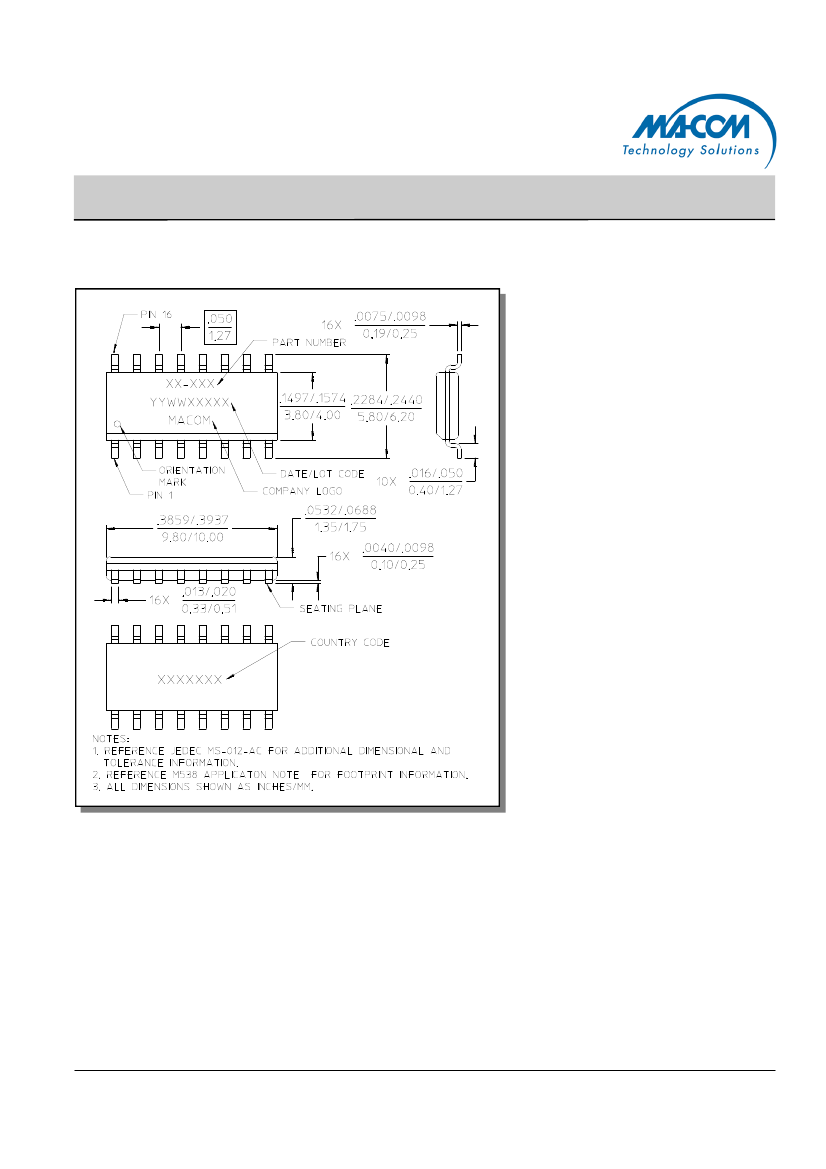

Lead-Free,
SOIC-16
†
Rev. V2
†
Reference Application Note M538 for lead-free solder reflow
recommendations.
4
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
