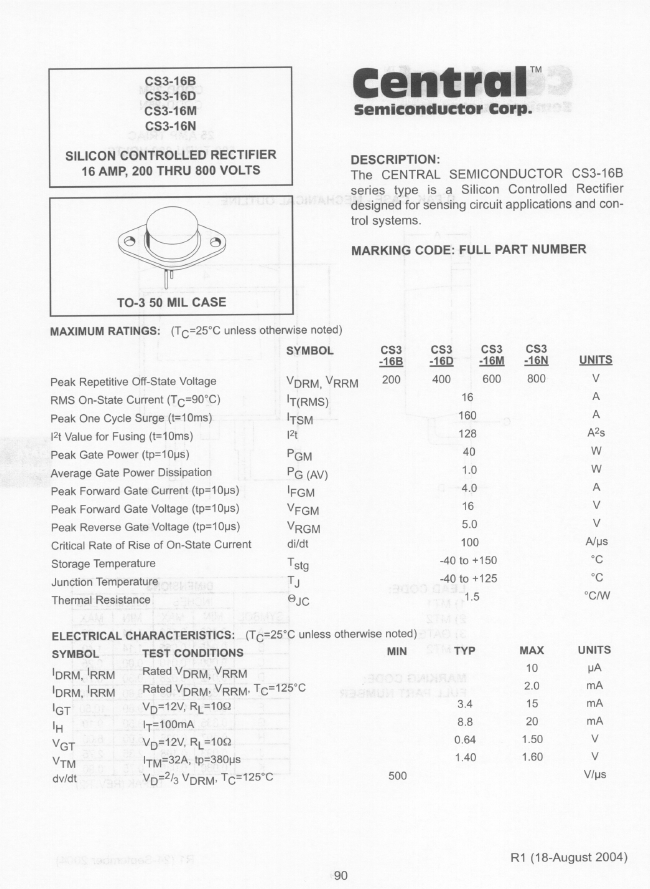

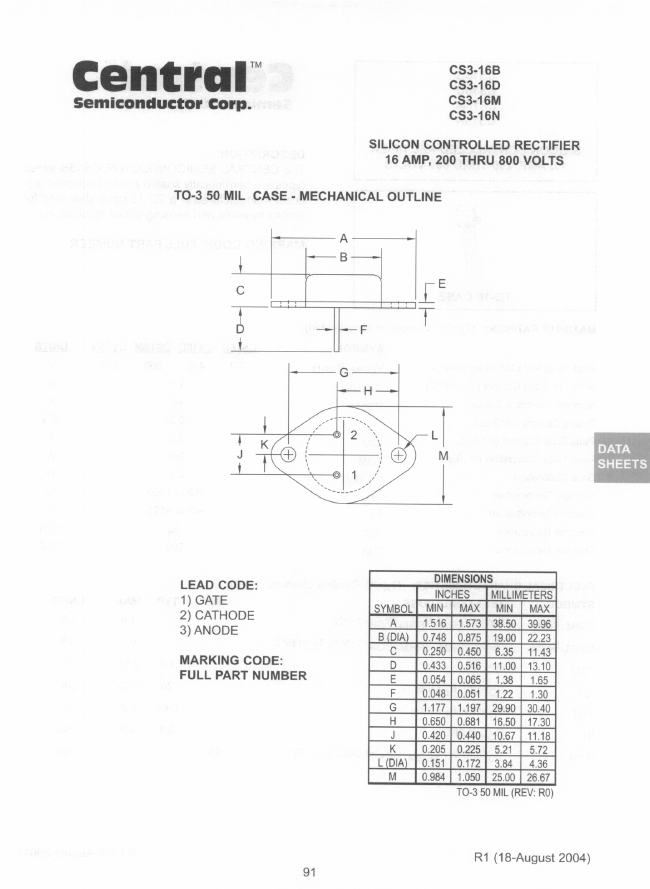

CS3-16NLEADFREE: DescriptionSilicon Controlled Rectifier, 16A I(T)RMS, 800V V(DRM), 800V V(RRM), 1 Element, TO-3, TO-3, 2 PIN; CategoryAnalog mixed-signal IC Trigger device; File Size3MB，2 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric Compare View All

CS3-16NLEADFREE Overview

Silicon Controlled Rectifier, 16A I(T)RMS, 800V V(DRM), 800V V(RRM), 1 Element, TO-3, TO-3, 2 PIN

CS3-16NLEADFREE Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	TO-204AA
package instruction	FLANGE MOUNT, O-MBFM-P2
Contacts	2
Reach Compliance Code	not_compliant
Shell connection	ANODE
Configuration	SINGLE
Maximum DC gate trigger current	15 mA
JEDEC-95 code	TO-3
JESD-30 code	O-MBFM-P2
JESD-609 code	e3
Number of components	1
Number of terminals	2
Package body material	METAL
Package shape	ROUND
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum rms on-state current	16 A
Off-state repetitive peak voltage	800 V
Repeated peak reverse voltage	800 V
surface mount	NO
Terminal surface	MATTE TIN (315)
Terminal form	PIN/PEG
Terminal location	BOTTOM
Maximum time at peak reflow temperature	10
Trigger device type	SCR
Base Number Matches	1

Preview

Download Datasheet

View All

CS3-16NLEADFREE Related Products

	CS3-16NLEADFREE	CS3-16DLEADFREE	CS3-16BLEADFREE	CS3-16MLEADFREE
Description	Silicon Controlled Rectifier, 16A I(T)RMS, 800V V(DRM), 800V V(RRM), 1 Element, TO-3, TO-3, 2 PIN	Silicon Controlled Rectifier, 16A I(T)RMS, 400V V(DRM), 400V V(RRM), 1 Element, TO-3, TO-3, 2 PIN	Silicon Controlled Rectifier, 16A I(T)RMS, 200V V(DRM), 200V V(RRM), 1 Element, TO-3, TO-3, 2 PIN	Silicon Controlled Rectifier, 16A I(T)RMS, 600V V(DRM), 600V V(RRM), 1 Element, TO-3, TO-3, 2 PIN
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Parts packaging code	TO-204AA	TO-204AA	TO-204AA	TO-204AA
package instruction	FLANGE MOUNT, O-MBFM-P2	FLANGE MOUNT, O-MBFM-P2	FLANGE MOUNT, O-MBFM-P2	FLANGE MOUNT, O-MBFM-P2
Contacts	2	2	2	2
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant
Shell connection	ANODE	ANODE	ANODE	ANODE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Maximum DC gate trigger current	15 mA	15 mA	15 mA	15 mA
JEDEC-95 code	TO-3	TO-3	TO-3	TO-3
JESD-30 code	O-MBFM-P2	O-MBFM-P2	O-MBFM-P2	O-MBFM-P2
JESD-609 code	e3	e3	e3	e3
Number of components	1	1	1	1
Number of terminals	2	2	2	2
Package body material	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	260	260	260	260
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum rms on-state current	16 A	16 A	16 A	16 A
Off-state repetitive peak voltage	800 V	400 V	200 V	600 V
Repeated peak reverse voltage	800 V	400 V	200 V	600 V
surface mount	NO	NO	NO	NO
Terminal surface	MATTE TIN (315)	MATTE TIN (315)	MATTE TIN (315)	MATTE TIN (315)
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Maximum time at peak reflow temperature	10	10	10	10
Trigger device type	SCR	SCR	SCR	SCR
Base Number Matches	1	1	1	1
