CTX8Z-A3B1-FREQ datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> CTX8Z-A3B1-FREQ

Preview

CTX8Z-A3B1-FREQ: DescriptionClipped Sine Output Oscillator, 9.6MHz Min, 32MHz Max, ROHS COMPLIANT PACKAGE-4; CategoryPassive components oscillator; File Size679KB，1 Pages; ManufacturerCardinal Components; Environmental Compliance

Download Datasheet Parametric View All

CTX8Z-A3B1-FREQ Overview

Clipped Sine Output Oscillator, 9.6MHz Min, 32MHz Max, ROHS COMPLIANT PACKAGE-4

CTX8Z-A3B1-FREQ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Other features	TAPE AND REEL
Ageing	1 PPM/YEAR
Frequency Adjustment - Mechanical	YES
frequency stability	5%
Manufacturer's serial number	CTX8
Installation features	SURFACE MOUNT
Maximum operating frequency	32 MHz
Minimum operating frequency	9.6 MHz
Maximum operating temperature	75 °C
Minimum operating temperature	-30 °C
Oscillator type	CLIPPED SINE
Output impedance	10000 Ω
Output level	1 V
physical size	18.3mm x 11.7mm x 4.7mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

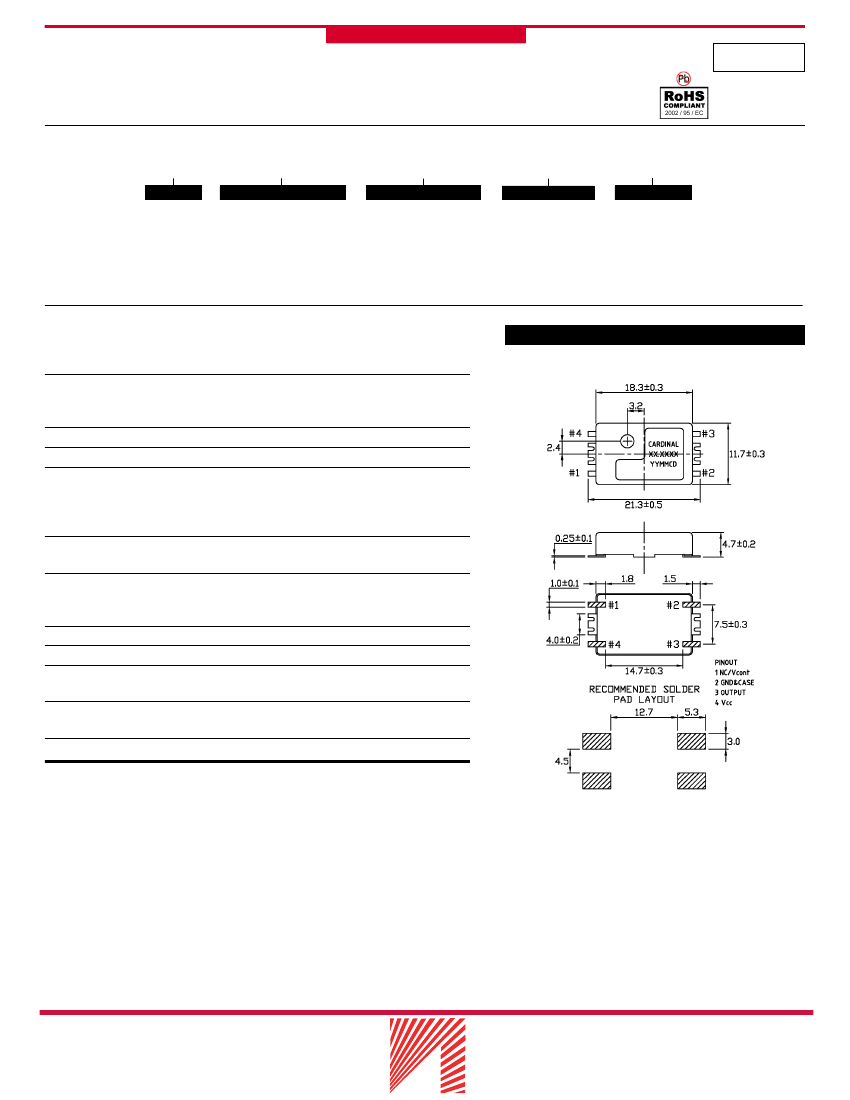

Surface Mount TCX0

CARDINAL COMPONENTS

• Industry standard footprint

Series CTX8

Part Numbering Example: CTX8 Z - A3 B3 - 15.360

CTX8

SERIES

CTX8

Z

PACKAGING OPTIONS

Z = Tape and Reel

A3

OPERATING TEMP.

A1=-10°C ~ +50°C

A2=-10°C ~ +60°C

A3=-30°C ~ +75°C

A4=-40°C ~ +75°C

B3

STABILITY

B1 = ±5.0 ppm

B2 = ±3.0 ppm

B3 = ±2.5 ppm

15.360

FREQUENCY

Specifications:

Frequency Range:

9.600 MHz to 32.000 MHz

Available Stability Options:

±5.0 ppm

±3.0 ppm

±2.5 ppm

Output Series:

Input Voltage:

Operating Temperature

Range Options:

Clipped Sine

+5.0 VDC ±5%

-10°C

-30°C

-40°C

to

+50°C

+60°C

+75°C

CTX8

Output Voltage:

Frequency Trim Range

With Externally

Adjustable Trimmer:

Output Load:

Maximum Input Current:

Maximum Frequency

Aging at +25°C:

Freq. Stability Vs. Change

of Input Voltage of ±5%:

Packaging:

1.0 Volt Peak to Peak

Minimum

± 3.0 ppm Minimum

10K OHM Parallel with 10 pf

2.0 mA

±1 ppm/yr

±0.3 ppm

Tape and Reel (1K per Reel)

155 Route 46 West

Wayne, NJ 07470

Rev: T-090414-12

Cardinal Components, Inc.

T-5

TEL:

(973)785-1333

E-MAIL: sales@cardinalxtal.com

WEB: http://www.cardinalxtal.com
