CA-S14-24B-44: DescriptionBoard Connector, 14 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size509KB，1 Pages; ManufacturerCircuit Assembly

Download Datasheet Parametric View All

CA-S14-24B-44 Overview

Board Connector, 14 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle

CA-S14-24B-44 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.096 inch
subject depth	0.1 inch
body length	1.4 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	CA
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	120 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
Plating thickness	10u inch
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.1 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	14
Base Number Matches	1

Preview

Download Datasheet

View All

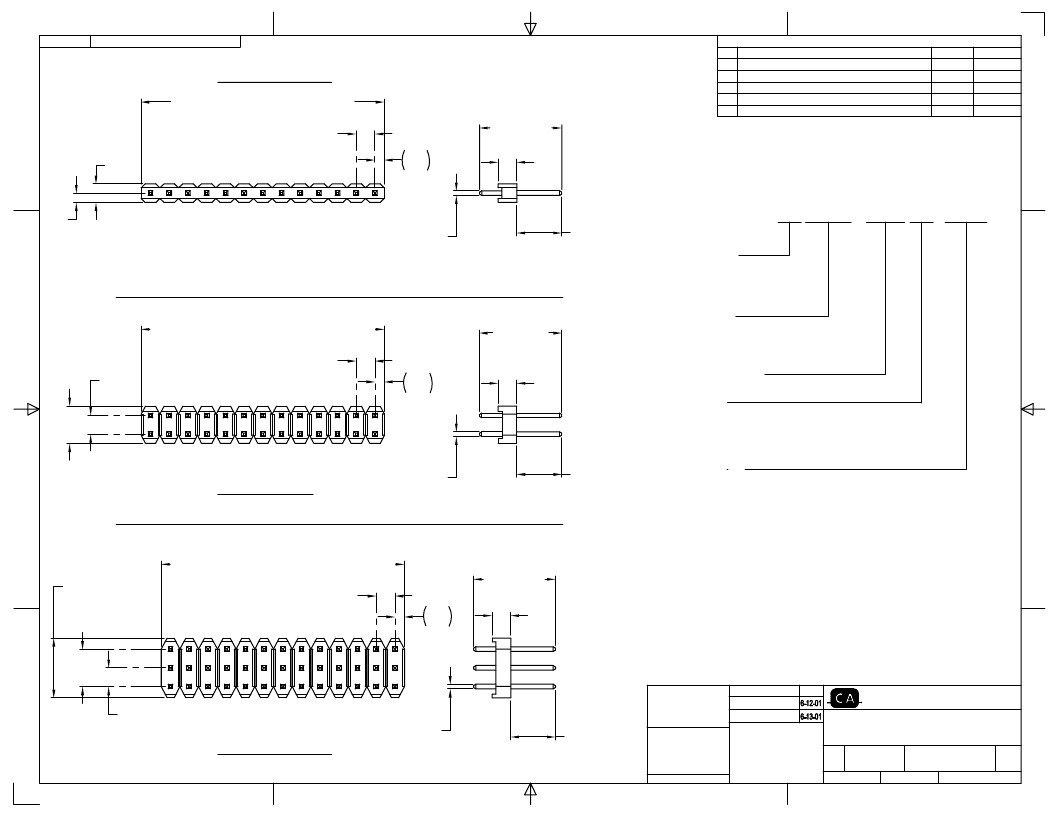

PART NO.

CA-XXX-24X-XX

SINGLE ROW

REVISIONS

LTR

DESCRIPTION

DATE

C.P.

6-13-01

6-24-03

5-26-04

7-25-05

12-23-05

.100

[2.54]

NO. OF POS. X .100[2.54] = LENGTH ±.030[.76]

.100

[2.54]

.050

[1.27]

.440+.020

-.015

11.18+0.51

-0.38

INITIAL RELEASE SEE DO 4527

SEE DO 5199

SEE DO 5495

SEE DO 5783

SEE DO 5954

APPROVED

A.J.

L.F.

I.M.

[

]

ORDERING NONMENCLATURE :

.100

[2.54]

.050

[1.27]

.025±.002

[0.64±0.05]

.240±.008

[6.10±0.20]

CA-XXX-24X-XX

NO. OF ROW

S = SINGLE ROW

D = DUAL ROW

T = TRIPLE ROW

NO. OF POS. PER ROW X .100[2.54] = LENGTH ±.030[.76]

.100

[2.54]

.100

[2.54]

.050

[1.27]

.440+.020

-.015

NO. OF

POSITIONS

[

11.18+0.51

-0.38

]

SINGLE ROW = 01-36 POSITIONS

DUAL ROW = 04-72 POSITIONS

TRIPLE ROW = 09-108 POSITIONS

.100

[2.54]

POST EXTENSION

24 = .240 [6.10]

PLATING

B = .000010 [.00025] GOLD

C = .000015 [.00038] GOLD

TAIL AREA : .000150 [.00381] TIN

UNDERPLATE : .000075 [.00190] NICKEL

T = .000150 [.00381] TIN OVER .000075 [.00190] NICKEL

.200

[5.08]

DUAL ROW

.025±.002

[0.64±0.05]

.240±.008

[6.10±0.20]

PIN LENGTH

44= .440 [11.18] (STANDARD)

CONSULT FACTORY FOR OTHER AVAILABLE

PIN LENGTHS & PLATING OPTIONS

SPECIFICATIONS :

ENVIRONMENTAL :

TEMPERATURE RANGE :

-55° TO +120° C

NO. OF POS. PER ROW X .100[2.54] = LENGTH ±.030[.76]

.320

[8.13]

.100

[2.54]

.050

[1.27]

[

.440+.020

-.015

11.18+0.51

-0.38

]

.100

[2.54]

MECHANICAL :

INSULATOR MATERIAL :

GLASS FILLED POLYESTER, BLACK, UL94V-0

CONTACT MATERIAL :

COPPER ALLOY

ELECTRICAL :

CURRENT RATING :

1 AMP

DIELECTRIC WITHSTANDING VOLTAGE : 500 Vrms

INSULATION RESISTANCE :

> 1000 Megohms

.200±.003

[5.08±.08]

DIMENSIONS ARE IN INCHES

TOLERANCES ARE :

APPROVALS

DRAWN

CHECKED

DATE

CIRCUIT ASSEMBLY CORP.

18 THOMAS ST., IRVINE, CALIFORNIA 92618-2777

.100±.002

[2.54±.05]

TRIPLE ROW

.025±.002

[0.64±0.05]

DECIMALS

.XX ±.010

.XXX ±.005

ANGLES

±3°

CUONG.P

A.JOCHEN

.240±.008

[6.10±0.20]

DIMENSIONS IN BRACKETS

[X.XX] ARE IN MILLIMETERS

TOLERANCES ARE :

DECIMALS

.X ±.25

.XX ±.13

ANGLES

±3°

DO NOT SCALE DRAWING

THE INFORMATION AND DESIGN DIS-

CLOSED HEREIN WAS ORIGINATED BY

AND IS THE PROPERTY OF CIRCUIT

ASSEMBLY

CORPORATION. CIRCUIT

ASSEMBLY CORPORATION

RESERVES

ALL PATENT, PROPRIETARY, DESIGN,

MANUFACTURING, REPRODUCTION, USE

AND SALES RIGHTS THERETO, AND TO

ANY

ARTICLE DISCLOSED HEREIN

EXCEPT TO THE EXTENT RIGHTS ARE

EXPRESSLY GRANTED TO OTHERS. THE

FOREGOING DOES NOT APPLY TO

VENDOR

PROPRIETARY

RIGHTS.

CONNECTOR ASSEMBLY

.025" SQ. STRIP HEADER , VALUE LINE

CA-XXX-24X-XX

SIZE

CODE IDENT NO.

DRAWING NO.

52072

620389

REV.

SCALE: 4 : 1

SHEET 1 OF 1
