C1005C0G1H151JT datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> C1005C0G1H151JT

C1005C0G1H151JT: DescriptionCeramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.00015uF, Surface Mount, 0402, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size311KB，8 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com; Environmental Compliance

Download Datasheet Parametric View All

C1005C0G1H151JT Overview

Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.00015uF, Surface Mount, 0402, CHIP, ROHS COMPLIANT

C1005C0G1H151JT Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	, 0402
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.00015 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.5 mm
JESD-609 code	e3
length	1 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, PAPER, 7/13 INCH
positive tolerance	5%
Rated (DC) voltage (URdc)	50 V
size code	0402
surface mount	YES
Temperature characteristic code	C0G
Temperature Coefficient	30ppm/Cel ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
width	0.5 mm
Base Number Matches	1

Preview

Download Datasheet

View All

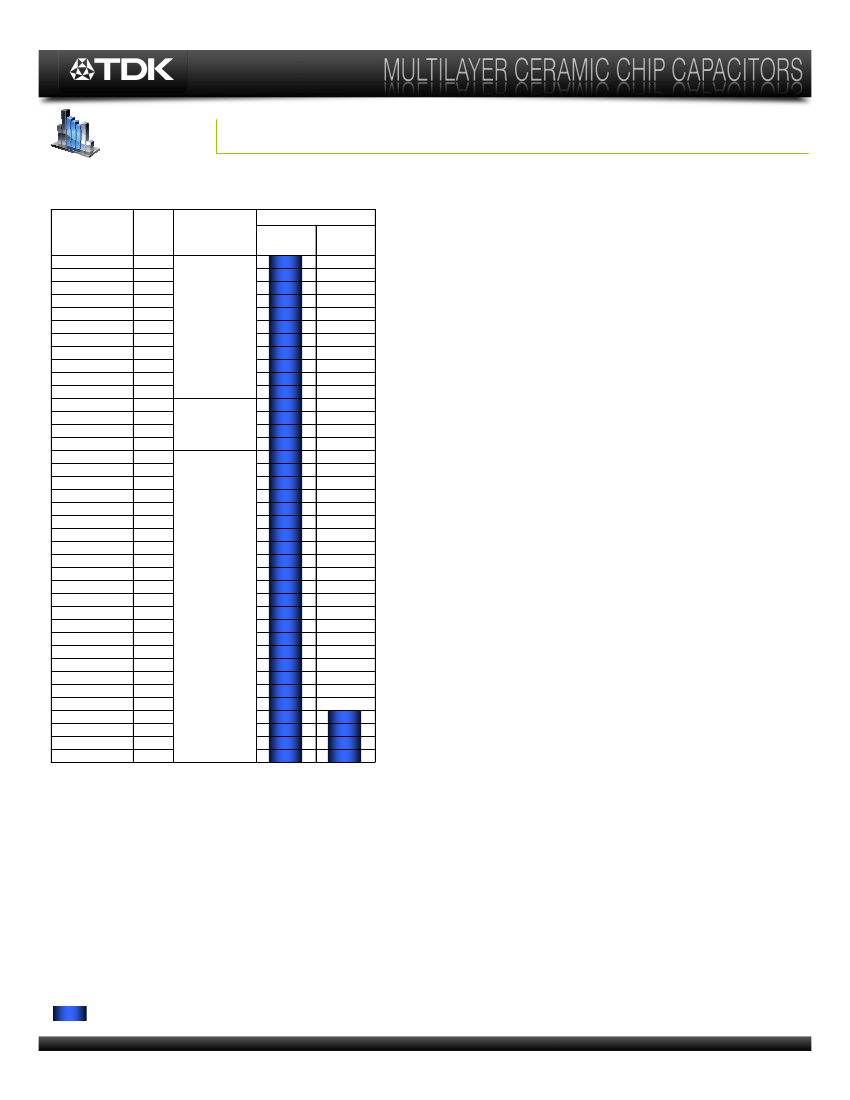

Capacitance

Range Chart

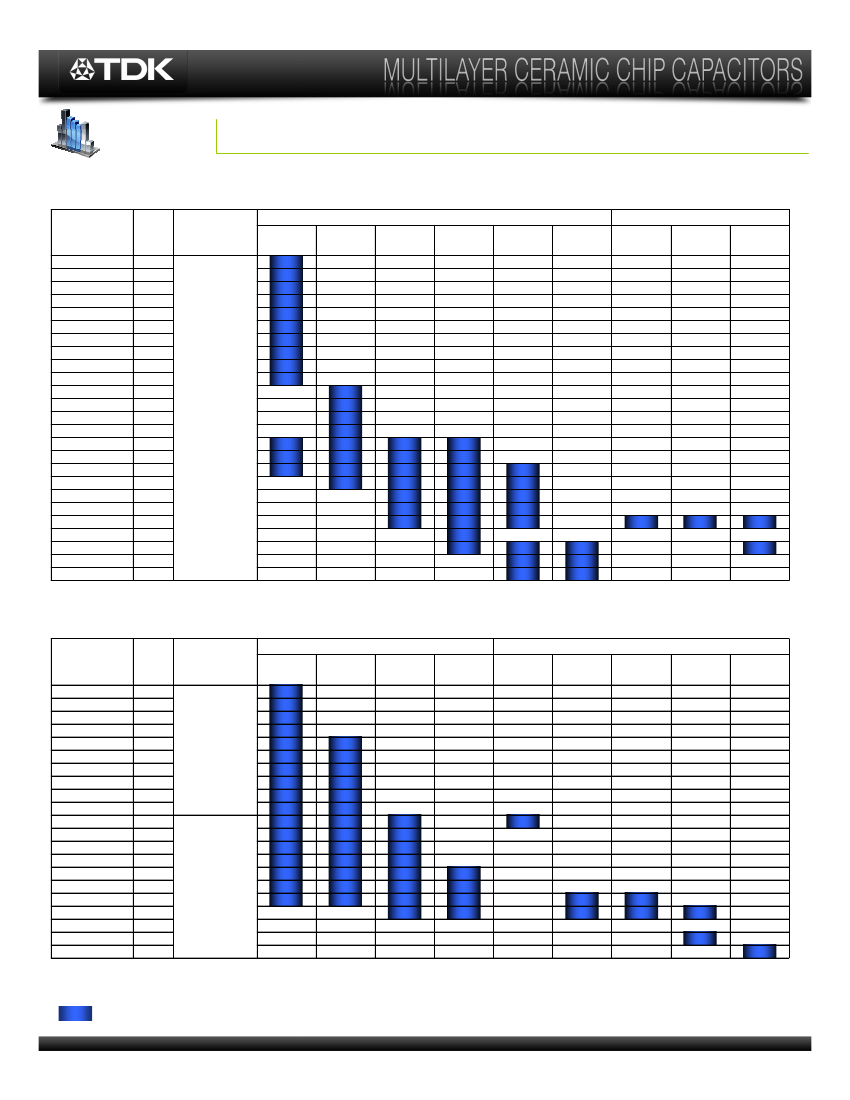

Capacitance Range Chart

Temperature Characteristics: C0G (0

30ppm/ºC)

Rated Voltage: 50V (1H), 25V (1E)

C1005 [EIA CC0402]

C0G

Capacitance

(pF)

0.50

0.75

1.0

1.2

1.5

1.8

2.2

2.7

3.3

3.9

4.7

5.6

6.8

8.2

100

120

150

180

220

270

330

390

470

560

680

820

1,000

Cap

Code

0R5

R75

010

1R2

1R5

1R8

2R2

2R7

3R3

3R9

4R7

5R6

6R8

8R2

100

120

150

180

220

270

330

390

470

560

680

820

101

121

151

181

221

271

331

391

471

561

681

821

102

Tolerance

B: ± 0.1pF

C: ± 0.25pF

(50V)

(25V)

C: ± 0.25pF

D: ± 0.5pF

J: ± 5%

• Standard capacitance is shown. Please refer to Capacitance Range Table for additional values.

Standard Thickness

0.50

0.05 mm

• All specifications are subject to change without notice. Please read the precautions before using the product.

US Catalog // C1005 Series // Version A11
