MC129JNP-183 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> MC129JNP-183

MC129JNP-183: DescriptionSHIELDED, VARIABLE INDUCTOR; CategoryPassive components inductor; File Size79KB，3 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric View All

MC129JNP-183 Overview

SHIELDED, VARIABLE INDUCTOR

MC129JNP-183 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUMIDA
Reach Compliance Code	unknow
ECCN code	EAR99
structure	Shielded
DC Resistance	80 Ω
Nominal inductance(L)	18000 µH
Inductor Applications	RF INDUCTOR
Inductor type	VARIABLE INDUCTOR
Lead diameter	0.7 mm
Lead length	3.5 mm
Manufacturer's serial number	MC-129
Number of functions	1
Number of terminals	6
Package diameter	12.5 mm
Package length	15.5 mm
Package form	PCB Mou
Minimum quality factor (at nominal inductance)	35
Maximum rated current	0.0365 A
series	MC-129J
Shape/Size Description	PCB MOUNT, VERTICAL ADJUSTER
shield	YES
surface mount	NO
Terminal location	RADIAL
Terminal shape	WIRE
Test frequency	0.001 MHz

Preview

Download Datasheet

View All

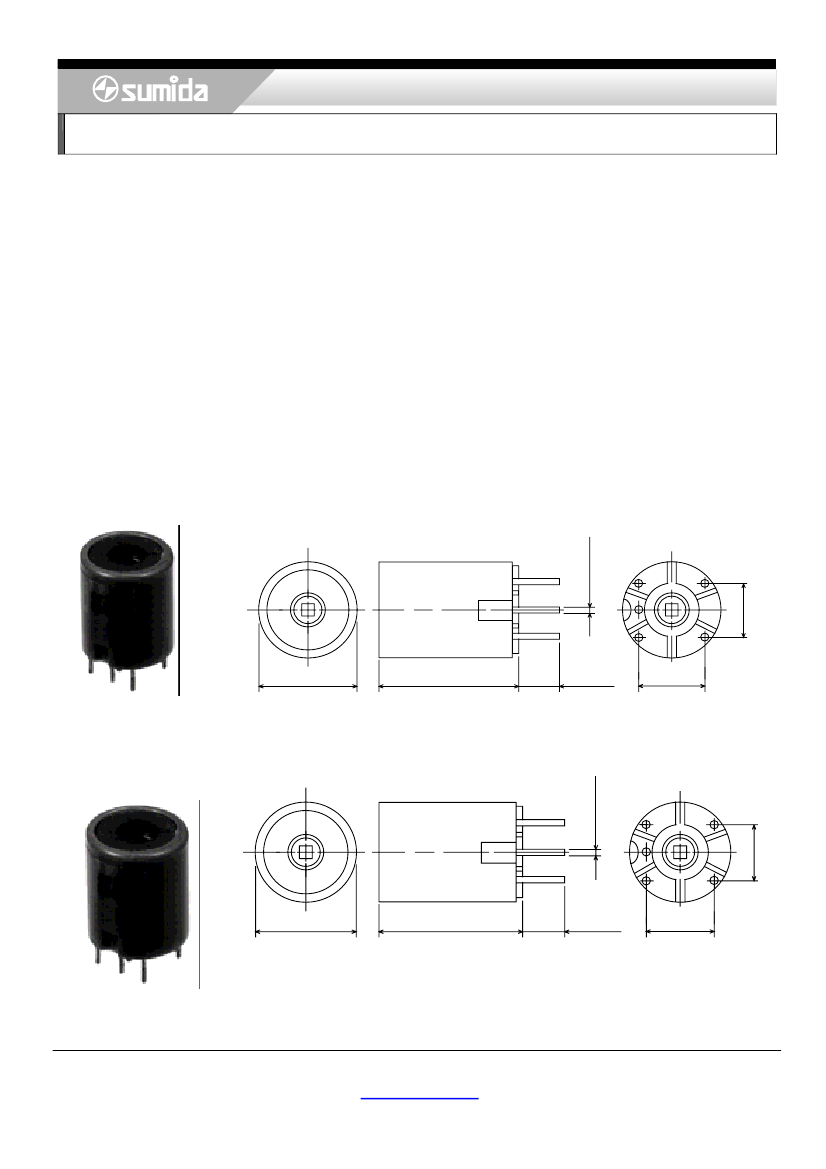

IFT COILS < Pin Type: MC-129 Series>

Type: MC-129J, MC-129JA

◆

Product Description

・13.0mm

Max,16.0mm Max. Height. (MC-129J)

・13.6mm

Max,19.0mm Max. Height. (MC-129JA)

・Inductance:82mH

Max.

・Operating

frequency:250kHz Max.

・In

addition to the standard versions of parameters shown here,

custom designs are available to meet your exact requirements.

◆

Feature

・High

inductance variable shielded type.

・Can

be used as DC-DC converter transformer.

・RoHS

Compliance

◆

Dimensions (mm)

φ0.7±0.1

φ12.5±0.5

15.5±0.5

+1.0

3.5-0.5

7.0±0.2

MC-129J

φ0.7±0.1

φ13.1±0.5

MAX.19

+1.0

3.5-0.5

7.0±0.2

＊

Dimension does not include solder used on coil.

MC-129JA

＊

Pin pitch should be measured at the root of terminal.

Please refer to the sales offices on our website for a representative near you

www.sumida.com

7.0±0.2

1/1
