CNX 310 Series
Build Your Own Indicator
For use with T-1 3/4 (5mm) LEDs

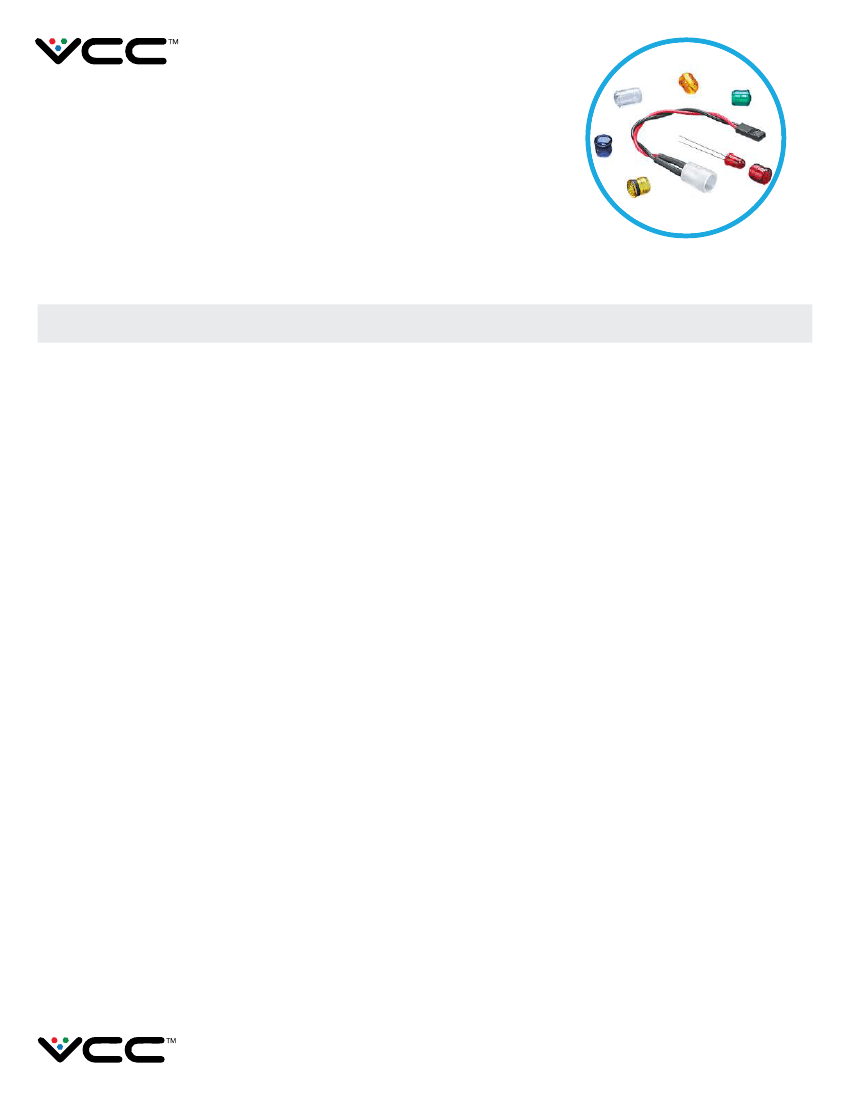

CNX 310 Series features modular panel mount indicator assemblies
and mounting hardware and require no tools for assembly.
Key Features
•
For panel hole diameter: 0.28" (7.14mm)
•
Choice of 4 different types of lenses
•
Terminations available: Stripped end, Single Row Locking Header or Single Row Plain Header
•
Eliminates the need for soldering or crimping wires to fragile LED leads and deliver superior
stability when subjected to forces of 2Gs, 4Gs and 6Gs from 0 to 2000 Hz
•
Available in 6 standard wire lenghts, from 4 to 24 inches
•
Choice of 2 different wires colors: Black/White or Red/Black
•
Standard wire gauge: 24 AWG
•
Panel thickness ranges from 0.030” (0.762 mm) to 0.125” (3.175mm). Refer to Product
Specifications for Technical Details
•
5mm LED, Lens, Clip and Spacer needs to be order separately
•
Panel Clip CMC_285 is optional and designed to secure and center the LED into the panel
•
Spacer SPC_060 made of EPDM rubber is optional and designed to seal against water,
oil, air and dust
• For aditional options please contact our Technical Sales Departament
• RoHS and REACH Compliant
Your first call for illuminated components
vcclite.com 1.800.522.5546
03/20 Rev 2
CNX310 | Page 1 of 3

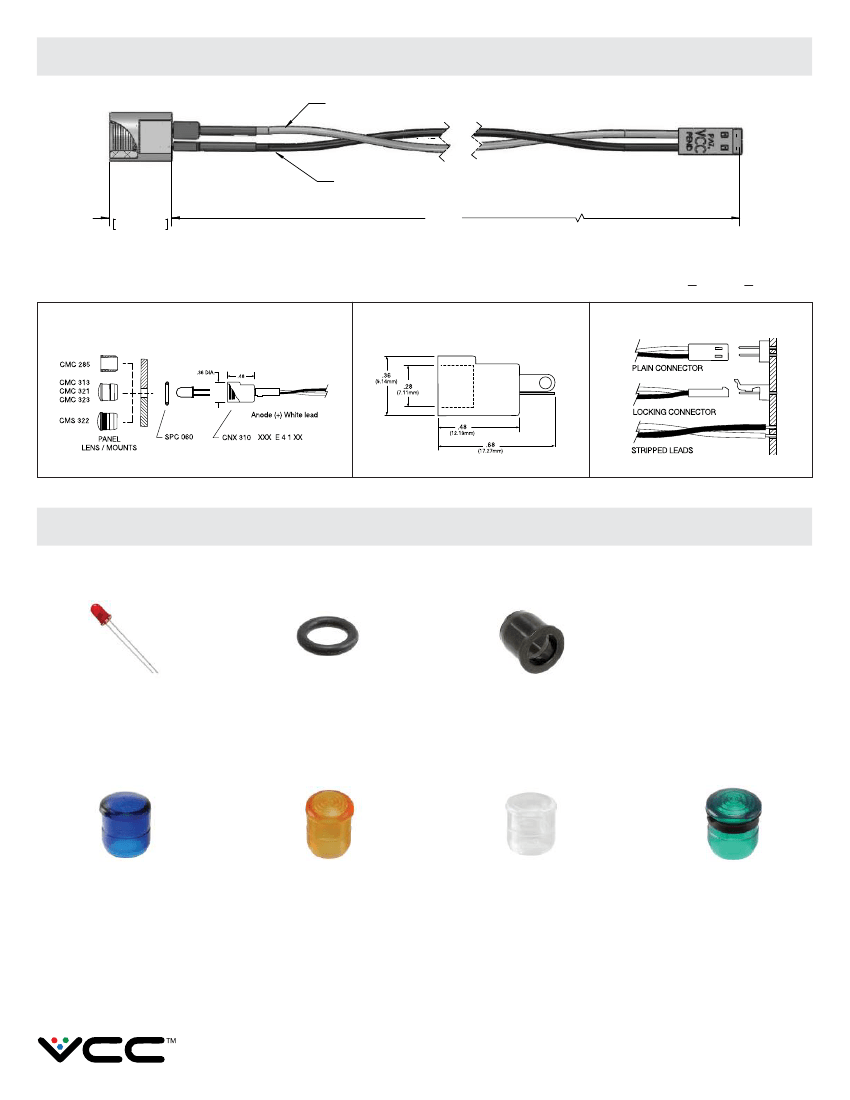

Product Dimensions
PIN B
=
ANODE (+) WHITE LEAD
W1
W2
PIN
A = CATHODE
(-) BLACK LEAD
.480
12.19mm
XX.XX
1
2
Tolerances unless otherwise specified
+0.005”
(+12.7mm)
CNX 310 with Leads
CNX 310
(
G
)
(
E
)
(
X
)
Accessories (Order Separately)
LED Through Hole
Spacer SPC
Clip CMC 285 Series
CMC_285_BLK
LED 5mm
SPC_060
CMC_285_BLK (Black)
CMC_285_CTP (Clear)
CMC 313 Series
CMC 321 Series
CMC 323 Series
CMS 322 Series
(Moisture Sealing)
CMC_313_BTP
CMC_321_ATP
CMC_313_ATP
CMC_313_BTP
CMC_313_CTP
CMC_313_GTP
CMC_313_RTP
CMC_313_YTP
CMC_321_ATP
CMC_321_BTP
CMC_321_CTP
CMC_321_GTP
CMC_321_RTP
CMC_321_YTP
CMC_323_CTP
CMS_322_ATP
CMS_322_BTP
CMS_322_CTP
CMS_322_GTP
CMS_322_RTP
CMS_322_YTP
Your first call for illuminated components
vcclite.com 1.800.522.5546
03/20 Rev 2
CNX310 | Page 2 of 3
Ordering Data
CNX_310_
WIRE LENGTH
000
No Resistor
012
120 OHMS
018
180 OHMS
033
330 OHMS
056
560 OHMS
120
1200 OHMS
220
2200 OHMS
TERMINATION
Stripped End
Single Row Locking Header
Single Row Plain Header
WIRE SIZE
4
24 AWG
WIRE
COLOR
WHITE - BLACK
RED - BLACK
WIRE LENGTH
4 INCHES (101.6mm)
6 INCHES (152.4mm)
8 INCHES (203.2mm)
12
INCHES
(304.8mm)
18
INCHES
(457.2mm)
24
INCHES
(609.6mm)
X
E
G
1
2
04
06
08
12
18
24
Ordering code example
CNX_310_012
E
4
1 12
Product Specifications
Compliances
Panel Connector
Socket
Header
Connector
Terminals
Wire
Polypropylene, UL 94-HB
Polyester, UL 94-V0
Phosphor Bronze, Tin Plate
24 AWG 1007/1569
Installation Specifications
Mounting
Hole
9/32” (0.281”)
(7.14 mm)
Panel
Thickness
0.030” - 0.125”
(0.762mm - 3.175mm)
Panel Thickness / Spacers
0.030” - 0.045”
(0.762mm - 1.143mm)
0.050” - 0.100”
(1.27mm - 2.54mm)
0.105” - 0.125”
(2.67mm - 3.175mm)
Use 2 SPC_060
Use 1 SPC_060
No Spacer Required
Lenses / LED Lead Length
Lens or Clip
CMC_285 (Clip)
CMC_313, CMC_321,
CMC_323, CMS_322
LED Lead Length
0.350”+ 0.01”
(8.89mm
+
0.254mm)
0.250”+ 0.01”
(6.35mm
+
0.254mm)
Compliances and Approvals
Your first call for illuminated components
vcclite.com 1.800.522.5546
03/20 Rev 2
CNX310 | Page 3 of 3
