CX-101F-24.576MHZ-STBY2-TOL2-CL: DescriptionParallel - Fundamental Quartz Crystal, 24.576MHz Nom,; CategoryPassive components Crystal/resonator; File Size156KB，1 Pages; ManufacturerKyocera

Download Datasheet Parametric View All

CX-101F-24.576MHZ-STBY2-TOL2-CL Overview

Parallel - Fundamental Quartz Crystal, 24.576MHz Nom,

CX-101F-24.576MHZ-STBY2-TOL2-CL Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.002%
frequency tolerance	20 ppm
load capacitance	12 pF
Manufacturer's serial number	CX-101F
Installation features	SURFACE MOUNT
Nominal operating frequency	24.576 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
physical size	L3.2XB2.5XH0.75 (mm)
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

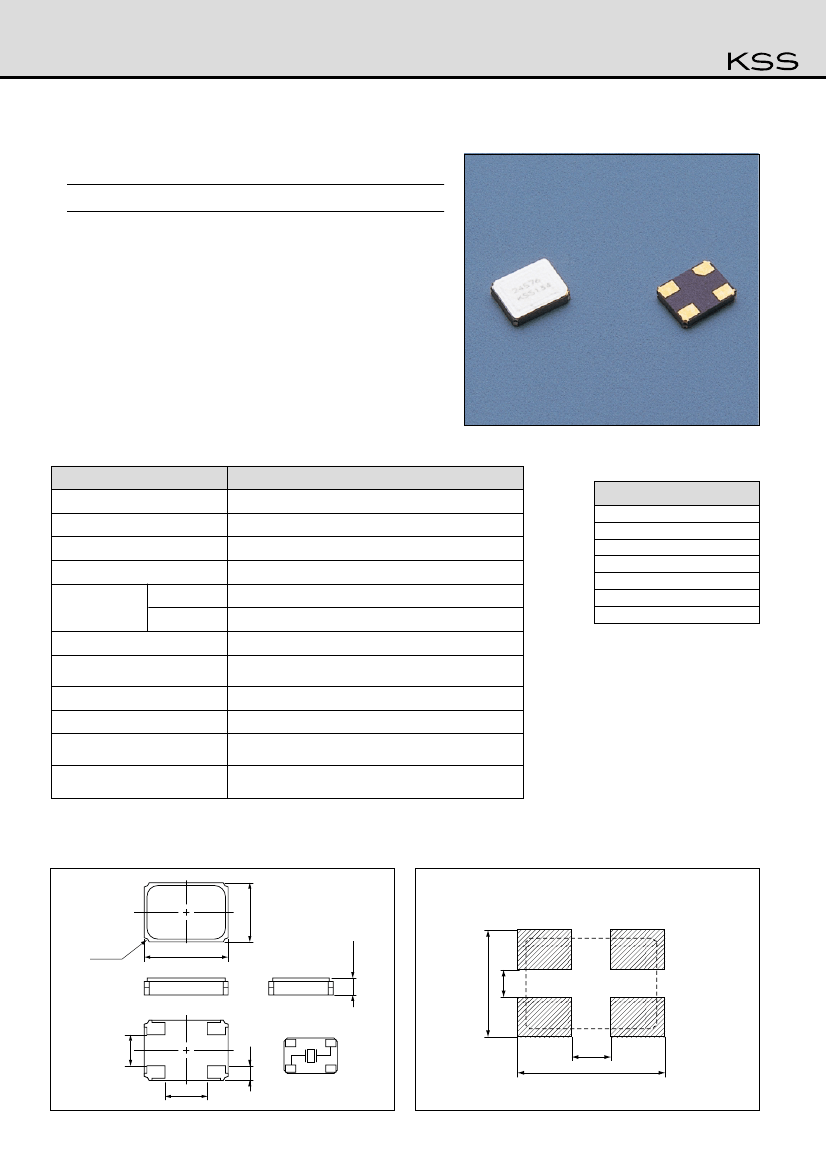

CX-101F

SMD

s

Features

¡Ultra-thin,

thickness 0.75mm. (3.2×2.5×0.75mm)

¡Because

it is the leadless type, automatic mounting is possible.

¡Excels

even in an environment that requires reliability.

¡Reflow

is possible.

s

Specifications

Type

Frequency Range

Standard Frequency

Operating Temp. Range

Storage Temp. Range

Frequency

Tolerance

Load Capacitance

Equivalent Series Resistance

Shunt Capacitance

Drive Lavel

Shock

Vibration

at 25:

Over The Oper.

Temp. Range

CX-101F

16~54MHz

Table 1

-10~+70:

±15, ±20, ±30, ±50×10

–6

±15, ±20, ±30, ±50×10

–6

(referred to 25:)

12pF

16~30MHz 100

Ω

30~54MHz 50

Ω

7pF MAX.

0.1mW MAX.

Three drops onto a hard wood board from the height of 20cm

10~55Hz, amplitude 1.5mm, each to 3 directions, 2 hours each

s

Table 1

Standard Frequencies

Standard Frequency (MHz)

20.000

22.57954

24.576

27.000

32.000

45.1584

48.000

*Taping item packaging : one unit 1,000 pcs or 3,000 pcs

s

Outline

CX-101F

2.5±0.15

s

Land Pattern(reference)

4-R0.2

3.2±0.15

0.75±0.1

CONNECTION

(TOP VIEW)

1.0

GND

HOT

2.9

0.8

HOT

GND

1.0

3.6

1.2

Dimensions(mm)

0.75
