CT301R16C-34: DescriptionSingle Color LED, Red, Water Clear, T-1, 3mm, ROHS COMPLIANT PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size237KB，1 Pages; ManufacturerCML Innovative Technologies; Environmental Compliance

Download Datasheet Parametric View All

CT301R16C-34 Overview

Single Color LED, Red, Water Clear, T-1, 3mm, ROHS COMPLIANT PACKAGE-2

CT301R16C-34 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	unknown
color	RED
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	WATER CLEAR
Nominal luminous intensity	400.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	4.6 mm
method of packing	BULK
peak wavelength	660 nm
shape	ROUND
size	3 mm
surface mount	NO
T code	T-1
Terminal pitch	2.54 mm
perspective	34 deg
Base Number Matches	1

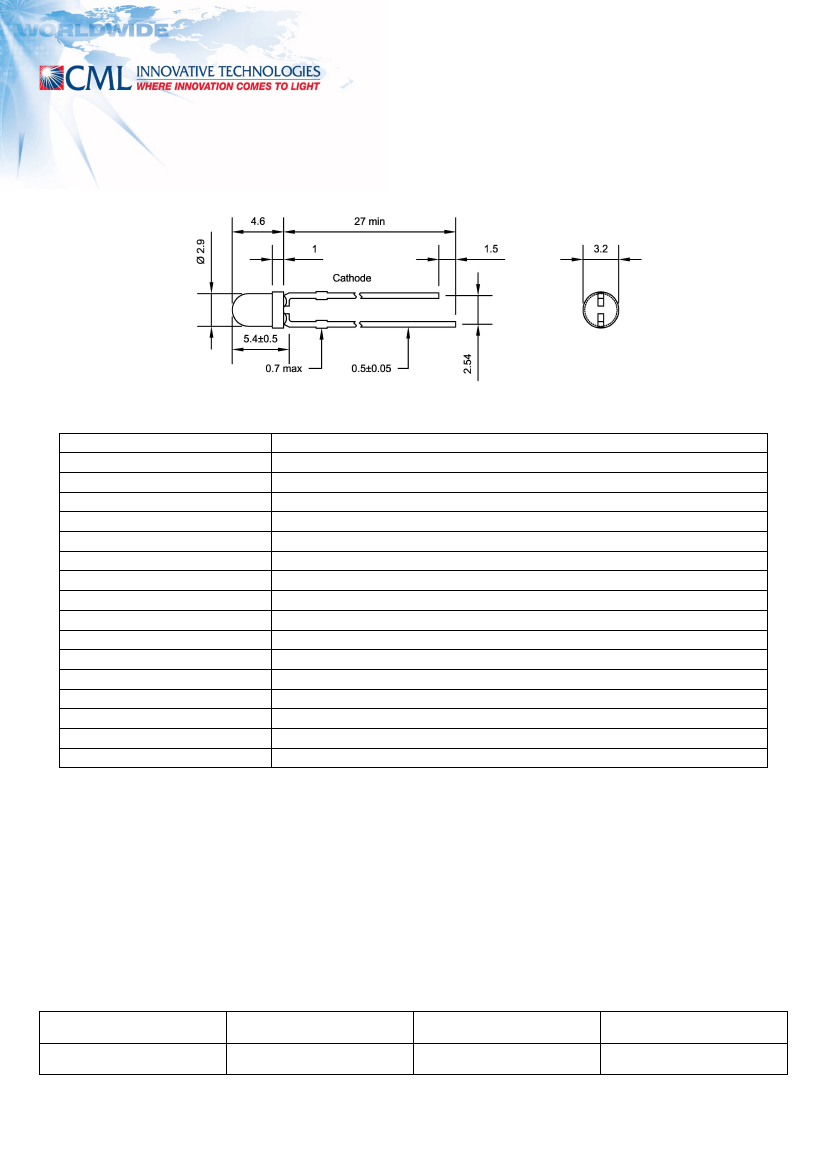

Preview

Download Datasheet

View All

Part Number : CT301R16C-34

Serial Number : CT301

LEDs

Led type

Industry size

Size (mm)

Output color

Epoxy

Peak Wave Lenght (mA)

Min. Mcd

Typical mcd

Forward volt typ.

Forward volt max.

Rated current (mA)

Viewing angle (°)

Op. temperature (°C)

Storage temperature (°C)

Power Dissipation

Cont forward current max

ROHS Status

THRU HOLE

T-1

3.0 mm

RED

WATER CLEAR

660

380

400

1.85

2.5

20

34

-40 to +85

100

30

Yes

Drawn :

Revision :

Ch'd :

Revision date : 2006-08-29

Datasheet : CT301

Name : LeD

Print date : 12/09/06

Scale :

All data are subject to changes without notices. Information include in datasheet is not binding.
