CBT-75: DescriptionRF/Microwave Termination, 0MHz Min, 1500MHz Max, 50ohm,; CategoryWireless rf/communication Radio frequency and microwave; File Size92KB，1 Pages; ManufacturerComponent General Inc

Download Datasheet Parametric View All

CBT-75 Overview

RF/Microwave Termination, 0MHz Min, 1500MHz Max, 50ohm,

CBT-75 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum input power (CW)	48.75 dBm
Maximum operating frequency	1500 MHz
Minimum operating frequency
RF/Microwave Device Types	RF/MICROWAVE TERMINATION
Maximum voltage standing wave ratio	1.35
Base Number Matches	1

Preview

Download Datasheet

View All

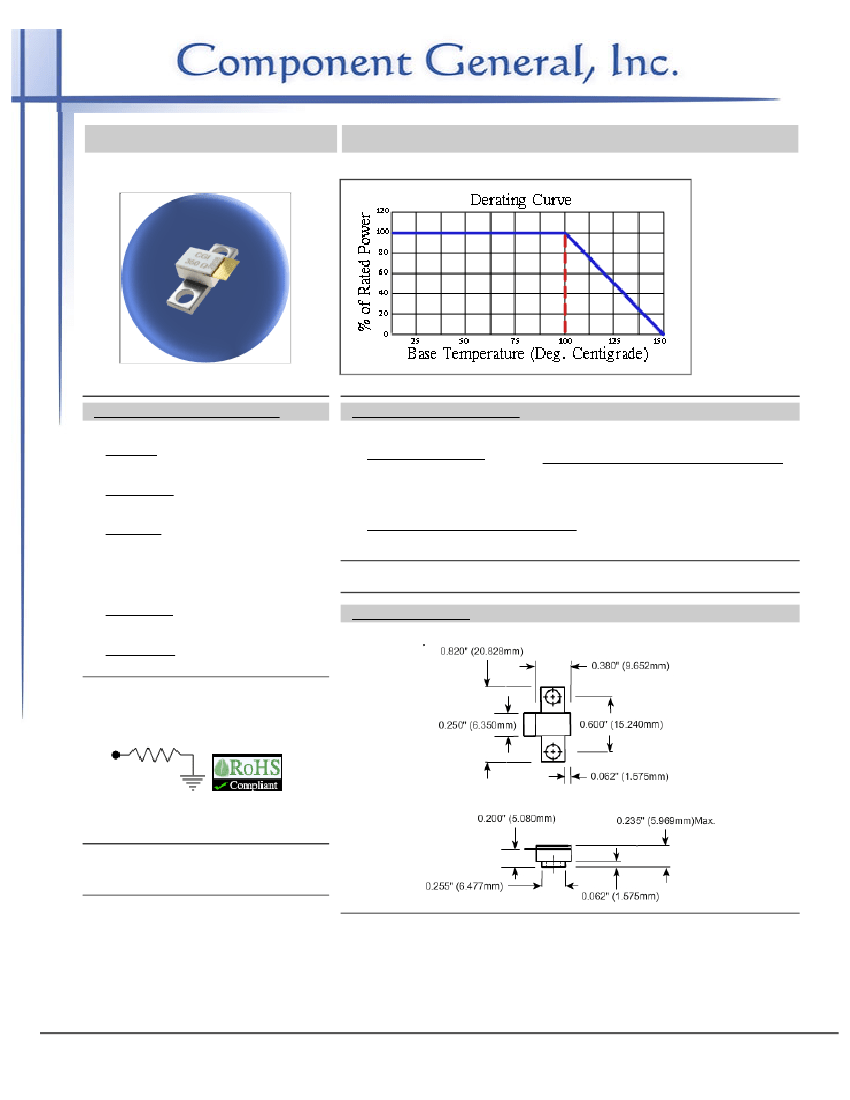

P/N: CBT-75

Stripline Base Mounted Terminations

Mechanical Specifications

Covers:

Alumina Ceramic.

Electrical Specifactions

Resistance Value:

10 - 1000

Ω

or as required.

Other values available upon

request.

Frequency Range:

DC - 1.0 GHz

1.0 - 1.5 GHz

VSWR (Max.):

1.10:1

1.35:1

Substrate:

Beryllium Oxide Ceramic.

Contact:

Beryllium Copper, Gold Plated per MIL-G-

45204.

Length 0.125" min., Width 0.250

Thickness 0.004" ± 0.002".

Standard Resistance Tolerance:

± 5% Other tolerances available upon request.

Heat Sink:

Copper, Nickel Plated per QQ-N-290.

Part Dimensions

Tolerance:

± 0.010" unless specified.

Note: The use of thermal mounting compound

is recommended.

2445 Succes Drive Odessa, FL 33556

727-376-6655 or 800-246-4084
