CT-58S34C-TD

Description
RF Coaxial Relay
CategoryMechanical and electronic products    relay
File Size4MB,2 Pages
ManufacturerTeledyne Technologies Incorporated
Websitehttp://www.teledyne.com/
Download Datasheet Parametric View All

CT-58S34C-TD Overview

RF Coaxial Relay

CT-58S34C-TD Parametric

Parameter NameAttribute value
Reach Compliance Codecompliant
ECCN codeEAR99
Relay typeRF COAXIAL RELAY
Base Number Matches1
Elite

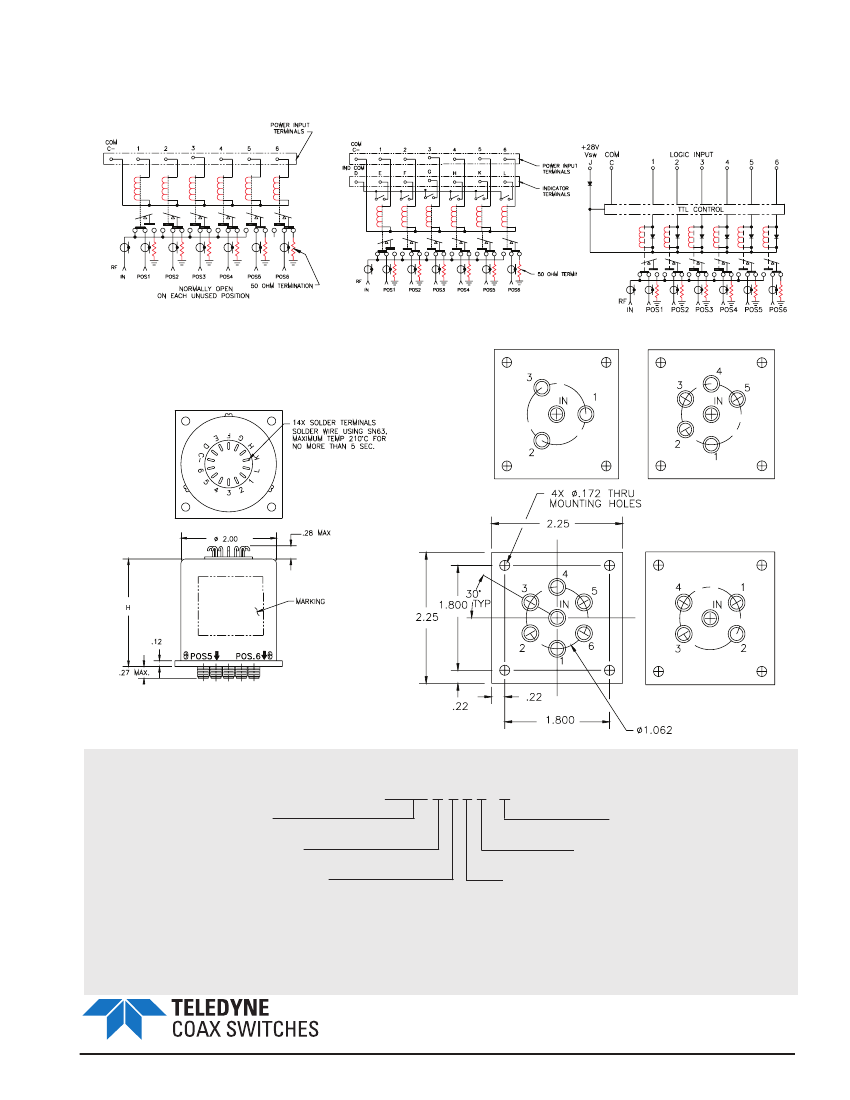

CT-58
Normally Open
Multi-Throw Internal Terminations DC-26.5GHz

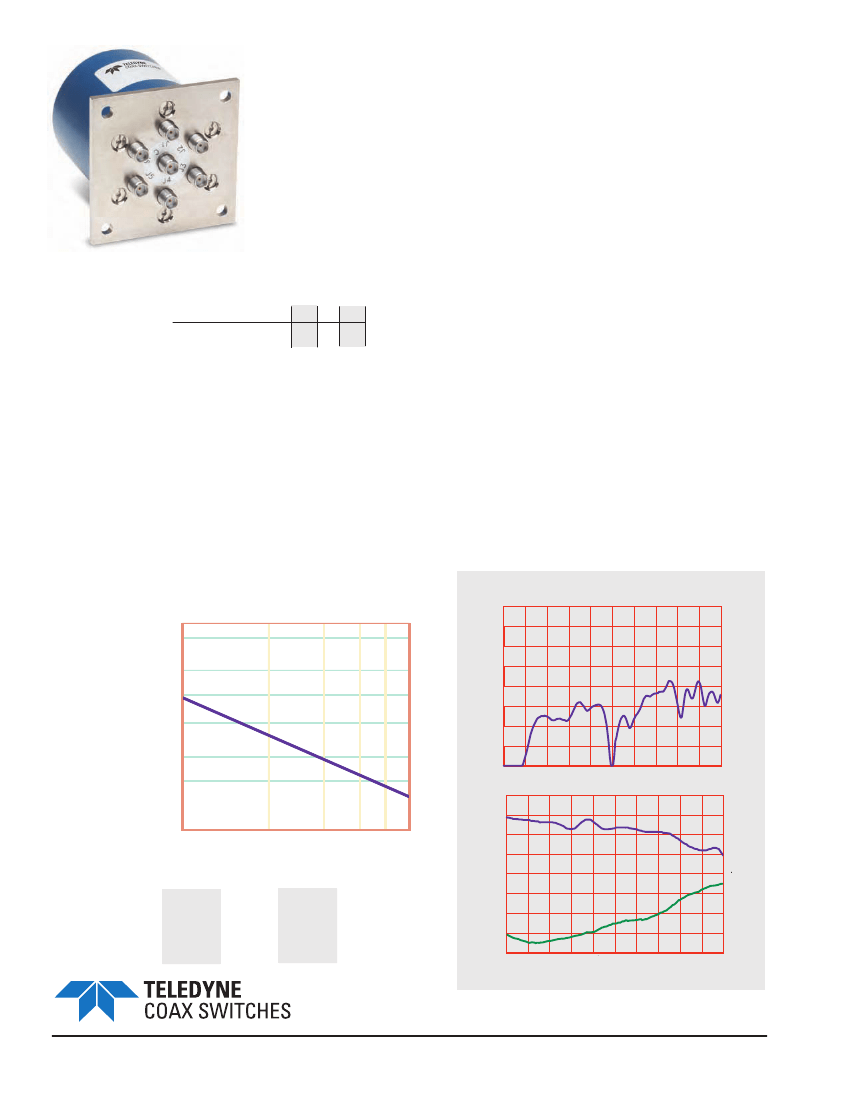

The CT-58 Switch is an internally terminated, broadband, multi-throw, electromechanical
coaxial switch designed to switch a microwave signal from a common input to any of 3, 4, 5,
or 6 outputs. The characteristic impedance is 50 Ohms. Internal terminations provide an
impedance match for the unselected ports. The switches are small using the popular
connector spacing on a 1.062" dia. circle. Each position has an individual actuator mechanism
allowing random position selection. This also minimizes switching time.
Specifications
RF Contacts:
Actuator
Break before make
Voltage (VDC) 20
O
C
Current (mA)
Switching Time:
Terminations:
Connectors:
Weight:
15 msec max
50 Ohm 2 Watts CW max
SMA (f)
6 oz. max
12
15
28
The CT-58 comes with a normally open actuator. For the normally
open actuator, all ports are terminated in 50 Ohms, except the
common input port which is open when the switch is
de-energized.
170 136 180
Temperature Range:
-55
O
C to +85
O
C (Operating)
Shock:
Vibration:
Humidity:
Typical
Contact Life:
MIL-STD-202 Method 213, Condition D (500G Non Operating)
MIL-STD-202 Method 214, Condition D (10G RMS Non Operating)
Moisture Seal Available
5 Million
Cycles
Insertion Loss Repeatability (1 Million Cycles):
DC to 6 GHz: 0.05 dB
DC to 20 GHz: 0.1 dB
RF Power Handling (Non-Terminated)
Typical Performance
3000
800
400
Power CW (Watts)
Sta
nda
rd S
15
MA
Co
nne
200
cto
rs
25
80
Return Loss
0.01
40
Frequency GHz
26.5
0.0
10
0.1
1.0
4.0
Frequency GHz
10
18
26.5
0.4
IL dB
60
70
80
Specifications
VSWR (max)
Insertion Loss (min)
Isolation (max)
DC-6 GHz 6-12 GHz 12-18 GHz 18-26.5 GHz
1.25:1
0.20 dB
70.0 dB
1.40:1
0.40 dB
60.0 dB
1.50:1
0.50 dB
60.0 dB
1.80:1
0.80 dB
50.0 dB
90
0.01
Frequency GHz
26.5
Specifications subject to change without notice.
www.teledynecoax.com
email: coax@teledyne.com
Tel: (800) 351-7368
10/2007
Isolation dB
