SPECIFICATIONS
Current Rating:
Contact Material:
Contact Resistance:
Insulation Material:
Insulation Resistance:
Withstanding:
Operating Temp:
2 Amp
Brass
20mΩ Max.
Polyester, UL94V-0
1000MΩ Min.
500V AC
-40ºC to +105ºC
A
B
C
C
E
D
D
E
RoHS compliant
Series
Insulator
BPH
X
2mm Unshrouded Blank=.079 (2.0mm)
Pin Headed
C=.059 (1.5mm)
Rows
X
1,2
Type
XX
Blank=Straight
RA=Right Angle
RRA=Reverse Right Angle
SM=Surface Mount
RASM=R/A Surface Mount
Positions
XX
Single Row: 1-40
Double Row: 2-80
Contact Length
XXX
SD=.157 (4mm) Mating
CSL=(A/E)
Plating
XX
GD=Gold
SG=Selective Gold
TN=Tin
Options
XX
Blank=None
PPL=Pick & Place Pad
TR=Tape & Reel
TB=-Tube
E
F
F
Rev.
Description
Date
Approved
Drawing
Name
Approved Howard
Checked Lizzy
Drawn Tina
0.0 ± 0.35
Date
12/12/08
12/12/08
12/12/08 Part No.:
Central Components Manufacturing
440 Lincoln Blvd., Middlesex, New Jersey 08846
Phone 732 469-5720 888 288-5152 Fax 732 469-1919
BPH-C-1-RASM-XX-SD-XX-XX
G
7
8
9
G
0.00 ± 0.20 Angles ± 3’
UNIT: mm
5
6

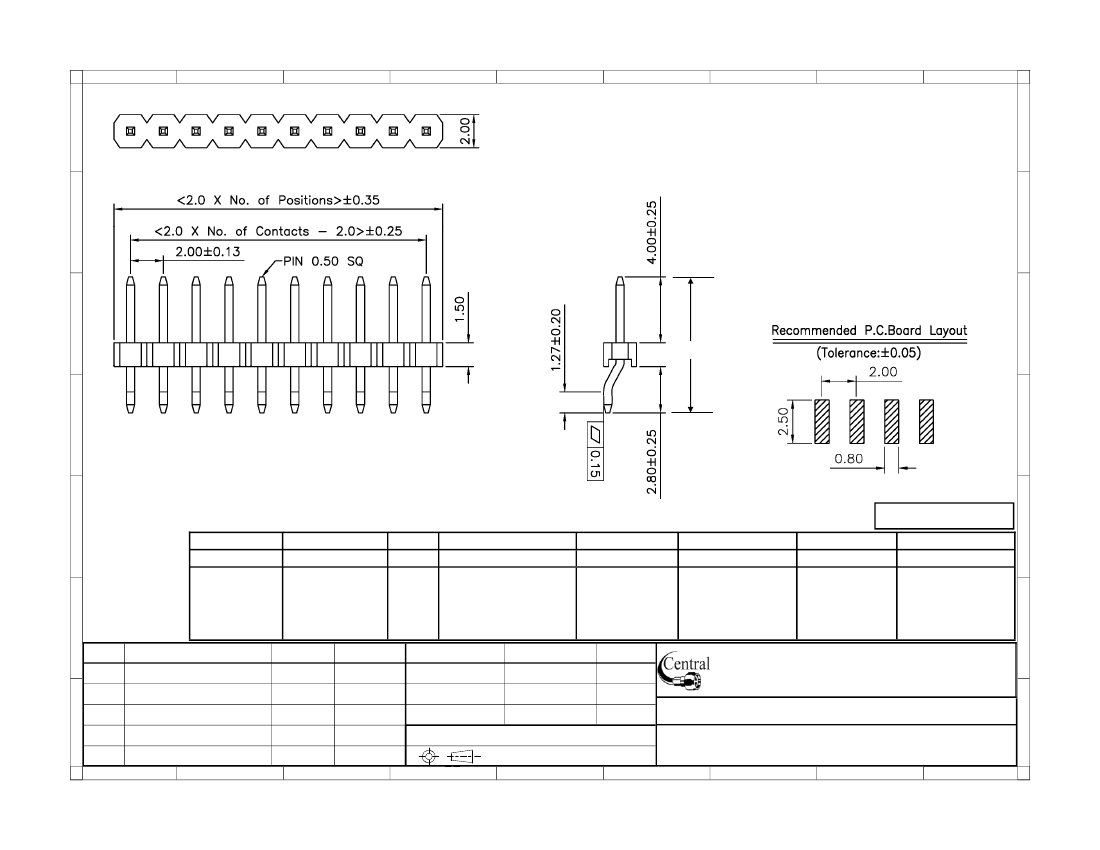

Description: 2.00 Pin Header Single Row SMT Type Base 1.50H
