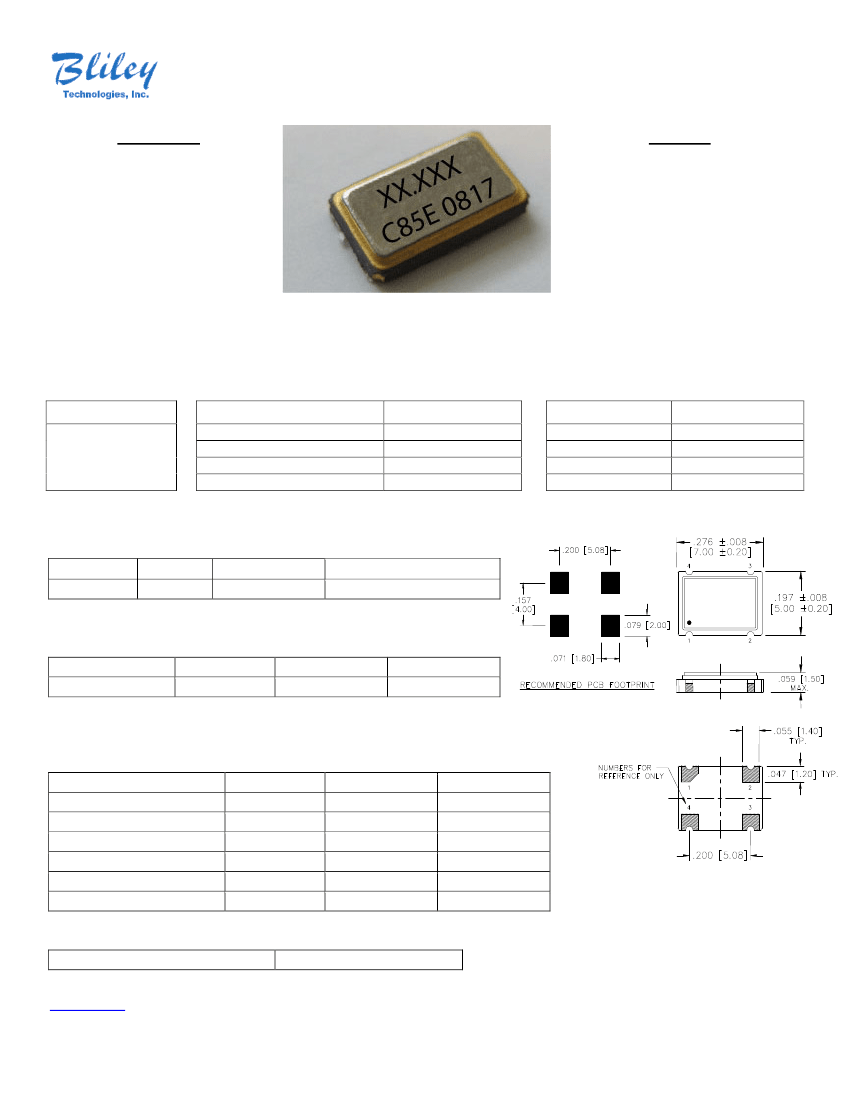

7.0 mm x 5.0 mm XO
Description:
•
The C85E Crystal Oscillator
(XO) Series products provide
a wide range of options in
temperature stability,
operating frequency range, and
multiple supply voltages in a
7.0 x 5.0 mm ceramic
package.
•
•
•
•
C85E series
Features:
Available in frequencies from 1.0
MHz to 165 MHz.
Tri-state Enable/Disable
Hermetically sealed ceramic
SMD package
TTL/HCMOS compatible
RoHS-6/Leadfree compliant
Frequency Range, Operating Temperature, and Frequency Stability:
Product Code
Product Code
Operating Temperature
Freq. Stability
A
A
-10 to +60C
+/- 25 ppm
B
B
0 to +70C
+/- 50 ppm
1.000 to 165MHz
C
C
-20 to 70C
+/- 75 ppm
D
D
-40 to 85C
+/-100ppm
***Frequency stability includes 25C tolerance, drift over temperature, change versus voltage and load, 20 year aging,
shock and vibration
Frequency
Aging:
(typical at 20MHz after 30 days continuous operation)
Frequency
20 MHz
Timeframe
1st Year
Aging
+/- 5.0ppm
Product Code
N/A
Supply Voltage (Vs):
Power Supply (Vs) 1.8 Vdc +/-10% 2.5 Vdc +/-10%
Product Code
A
B
3.3 Vdc +/-10%
C
Supply Voltage Sensitivity ( +/- 10% ) : +/- 2 ppm max. frequency change
Current Consumption ( I
DD
):
I
DD
( at 1.8 V )
Frequency Range ( MHz )
mA
1.000 to 23.999
10
24.000 to 49.999
12
50.000 to 69.999
15
70.000 to 132.999
25
133.000 to 165.000
35
I
DD
( at 2.5V )
mA
12
15
20
30
40
I
DD
( at 3.3V )
mA
15
20
30
45
55
Environmental:
Storage Temperature
www.bliley.com
-55 to +125
°C
2545 West Grandview Blvd Erie, PA. 16506
Page 1 of 4
Tel
(814) 838-3571
Rev 2.1
7.0 mm x 5.0 mm XO
Output Waveform:
Output Symmetry
Rise Time ( nS )
Fall Time ( nS )
Output Voltage
Output Voltage
HCMOS load ( pF )
At 50% V
DD
Tr
Tf
V
OH
V
OL
Min
45%
3
3
90% V
DD
14.85
Typical
50%
5
5
Max
55%
10
10
10% V
DD
15.15
C85E series
15.00
Start-up Time: 5 mS max.
Tri-state function Pin 1:
Pin 1 = logic high ( 0.7*Vsupply ) or open ; Output active at Pin 3
Pin 1 = logic low ( 0.3*Vsupply ) ; high impedance at pin 3 Output disabled
Ordering Options:
Product Family
Operating
Temperature
C85E
A
C85E
B
C85E
C
C85E
D
Frequency
Stability
A
B
C
D
Supply Voltage
A
B
C
Operating
Frequency
XX.XXXX MHz
XX.XXXX MHz
XX.XXXX MHz
XX.XXXX MHz
C85E C A B 10.0000MHz
Part Number Build Example
RoHs compliant; -20 to 70C; +/- 25 ppm with a 2.5 volt supply, 10 MHz nominal operating frequency.
Note:
Consult Bliley sales for final package detail once electrical performance is defined.
*Not all combinations of operating frequency and supply voltage are available.
www.bliley.com
2545 West Grandview Blvd Erie, PA. 16506
Page 2 of 4
Tel
(814) 838-3571
Rev 2.1
