CS53DL-FREQ-OUT23 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> CS53DL-FREQ-OUT23

CS53DL-FREQ-OUT23: DescriptionCMOS/TTL Output Clock Oscillator, 1.5MHz Min, 80MHz Max,; CategoryPassive components oscillator; File Size112KB，1 Pages; ManufacturerCal Crystal Lab Inc / Comclok Inc; Websitehttps://www.transko.com

Download Datasheet Parametric View All

CS53DL-FREQ-OUT23 Overview

CMOS/TTL Output Clock Oscillator, 1.5MHz Min, 80MHz Max,

CS53DL-FREQ-OUT23 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	15%
Installation features	SURFACE MOUNT
Maximum operating frequency	80 MHz
Minimum operating frequency	1.5 MHz
Maximum operating temperature	50 °C
Minimum operating temperature	-10 °C
Oscillator type	CMOS/TTL
Output load	10 TTL, 15 pF
physical size	7mm x 5mm x 1.7mm
longest rise time	10 ns
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	47.5/52.5 %
Base Number Matches	1

Preview

Download Datasheet

View All

Cal Crystal Lab, Inc. / Comclok, Inc. 800-333-9825

1156 North Gilbert Street • Anaheim, CA 92801

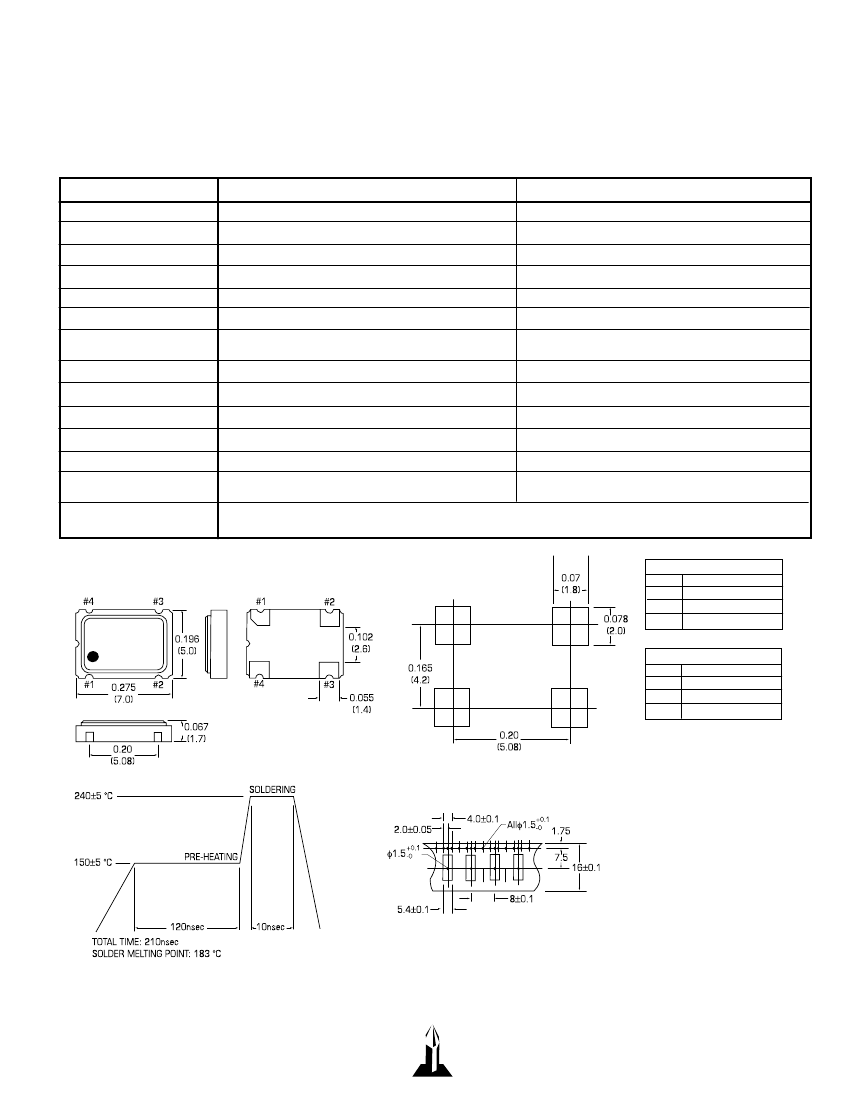

CERAMIC SURFACE MOUNT OSCILLATORS

MODEL CS 3.3VDC

CI 5.0VDC

Model

Frequency Range

Frequency Stability

Operating Temperature Range

Storage Temperature Range

Current Consumption

Supply Voltage

Symmetry

Rise & Fall Time (Tr, Tf)

Logic “1”

Logic “0”

Output Load

Aging

Enable Input (optional)

Reflow Condition

Inches

(mm)

1.500MHz ~ 80.000MHz

100ppm Standard, Optional Tolerances Available

C ~ +70

C, Extended Temperature Ranges Available

-55

C ~ +125

8mA ~ 25mA

+ 3.3VDC

10%

60/40 @ 50% Vcc

Optional Tolerances Available

1.500MHz ~ 80.000MHz

100ppm Standard, Optional Tolerances Available

C ~ +70

C, Extended Temperature Ranges Available

-55

C ~ +125

10mA ~ 80mA

+ 5.0VDC

10%

60/40 @ 50%

Optional Tolerances Available

10nSec Max

4.5VDC Min

0.5VDC Max

1 to 10 TTL / 15pF

< 5ppm per year

Enable - Logic “1” 2.0VDC Min

Disable - Logic “0” 0.5VDC Max

10nSec Max

4.5VDC Min

0.5VDC Max

1 to 10 TTL / 15pF

< 5ppm per year

Enable - Logic “1” 2.0VDC Min

Disable - Logic “0” 0.5VDC Max

+240

C for 10 seconds

+150 C

C for 1 to 2 minutes (preheating)

CS Ceramic SMD

N.C. or E/D (TriState)

GND

OUTPUT

3.3VDC

10%

CI Ceramic SMD

N.C. or E/D (TriState)

GND

OUTPUT

5VDC

10%

DIMENSIONS

500 pcs. per reel

(178 mm dia.)
