MHF20SGL Overview

.100 IDC LATCH HEADER .100 X .100 [2.54 X 2.54]

MHF20SGL Parametric

Parameter Name	Attribute value
Maker	Adam Tech
Reach Compliance Code	compli
body width	0.327 inch
subject depth	0.756 inch
body length	1.766 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER COPPER
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
maximum insertion force	2.224 N
Insulation resistance	5000000000 Ω
Insulator color	GRAY
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	MHF
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation option 2	LONG LATCH
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	20
Maximum wire diameter	28 AWG
Minimum wire diameter	28 AWG
Evacuation force-minimum value	.417 N

Preview

Download Datasheet

View All

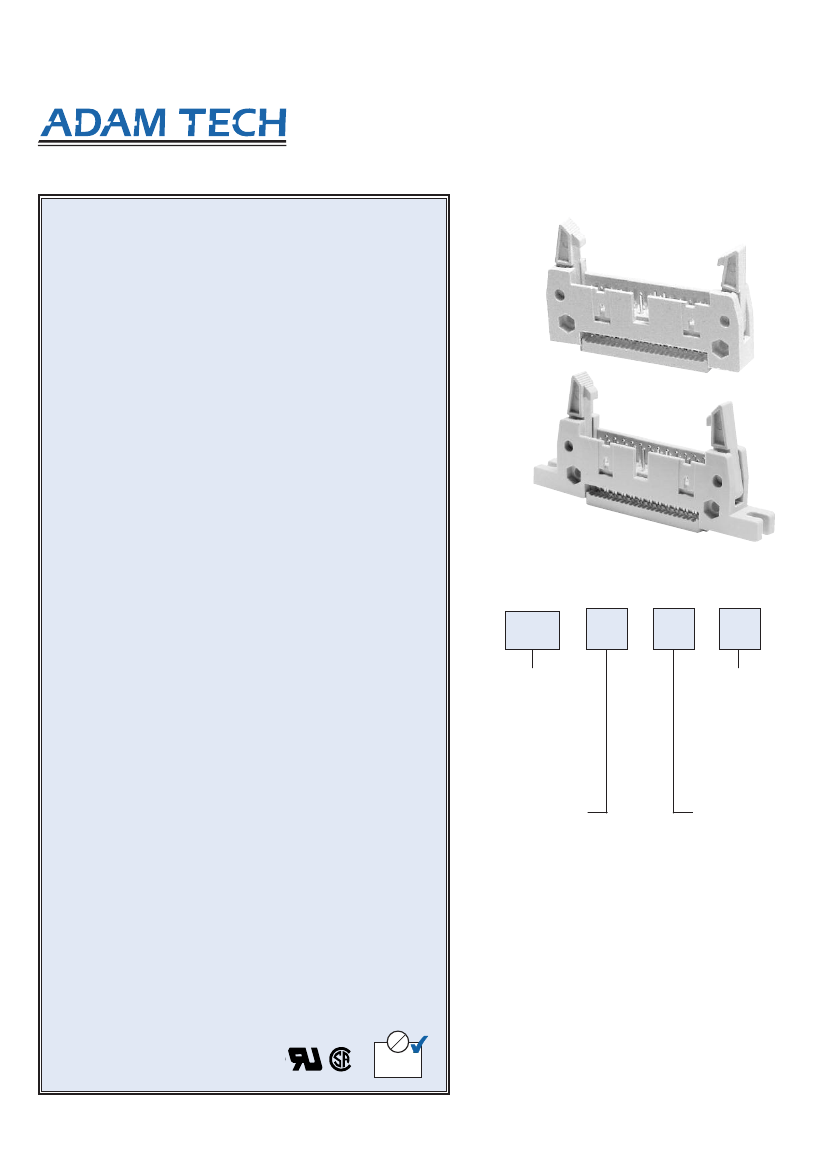

.100" IDC LATCH HEADER

Adam Technologies, Inc.

INTRODUCTION:

Adam Tech MHF Series IDC Latch Headers are designed to quickly

and easily mass terminate .050" flat cable. The IDC termination is

converted to a Shrouded Box Header with ejector/latches and a

polarizing slot that mates with standard IDC sockets. This connector

is ideal for splicing and making “T” taps to a cable bus. Adam Tech’s

sturdy design features solid, selectively gold plated .025"sq. copper

alloy posts.

FEATURES:

Latches for secure attachment

Latch ejection feature makes socket removal easy

IDC Cable to Shrouded Box Header

Mates with standard IDC sockets

Ideal for splicing and “T” taps to cable bus

Solid selectively gold plated contacts

MATING CONNECTORS:

Mates with Adam Tech Series .100" (2.54mm) dual row IDC sockets

SPECIFICATIONS:

Material:

Insulator: PBT, rated UL94V-0

Insulator Color: Gray

Contacts: Brass

Contact Plating:

Gold flash (30

µin

optional) over nickel on contact area,

Tin over copper underplate on IDC area

Electrical:

Operating voltage: 250V AC max.

Current rating: 1 Amp max

Contact resistance: 20 mΩ max. initial

Insulation resistance: 5000 MΩ min.

Dielectric withstanding voltage: 1000V AC for 1 minute

Mechanical:

Insertion force: 0.5 lbs per circuit max.

Withdrawal force: 0.094 lbs per circuit min

Mating durability: 500 Cycles min.

Recommended cable size: 28 Awg stranded

Temperature Rating:

Operating temperature: -40°C to +105°C

PACKAGING:

Anti-ESD plastic trays

SAFETY AGENCY APPROVALS:

UL Recognized File No. E224053

CSA Certified File No. LR1578596

.100" X .100" [2.54 X 2.54]

MHF SERIES

ORDERING INFORMATION

MHF

SERIES INDICATOR

MHF

= IDC

Latch Header

EJECTOR/LATCHES

= Short ejector/

latches for sockets

without strain relief

= Long ejector/

latches for sockets

with strain relief

POSITIONS

10, 14, 16, 20, 24, 26,

30, 34, 40, 50, 60, 64

PLATING

= Selective

gold plating

D E

RoHS

COMPLIANT

2002

/ 95

/ EC

D E

OPTIONS:

Add designator(s) to end of part number

E =

Mounting ears

326

909 Rahway Avenue

•

Union, New Jersey 07083

•

T: 908-687-5000

•

F: 908-687-5710

•

WWW.ADAM-TECH.COM

RoHS

COMPLIANT
