CM5NP-152C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> CM5NP-152C

CM5NP-152C: DescriptionGeneral Purpose Inductor, 1500uH, 40%, 1 Element, Ferrite-Core, SMD, 2222, ROHS COMPLIANT; CategoryPassive components inductor; File Size34KB，2 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric View All

CM5NP-152C Overview

General Purpose Inductor, 1500uH, 40%, 1 Element, Ferrite-Core, SMD, 2222, ROHS COMPLIANT

CM5NP-152C Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	2222
Reach Compliance Code	unknown
ECCN code	EAR99
uppercase and lowercase codes	2222
structure	Magnetically Shielded
core material	Ferrite
DC Resistance	13 Ω
Nominal inductance(L)	1500 µH
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CM-5
Number of functions	1
Number of terminals	5
Package height	4.6 mm
Package length	5.6 mm
Package form	SMT
Package width	5.6 mm
method of packing	Tape
Maximum rated current	0.04 A
series	CM-5
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.001 MHz
Tolerance	40%
Base Number Matches	1

Preview

Download Datasheet

View All

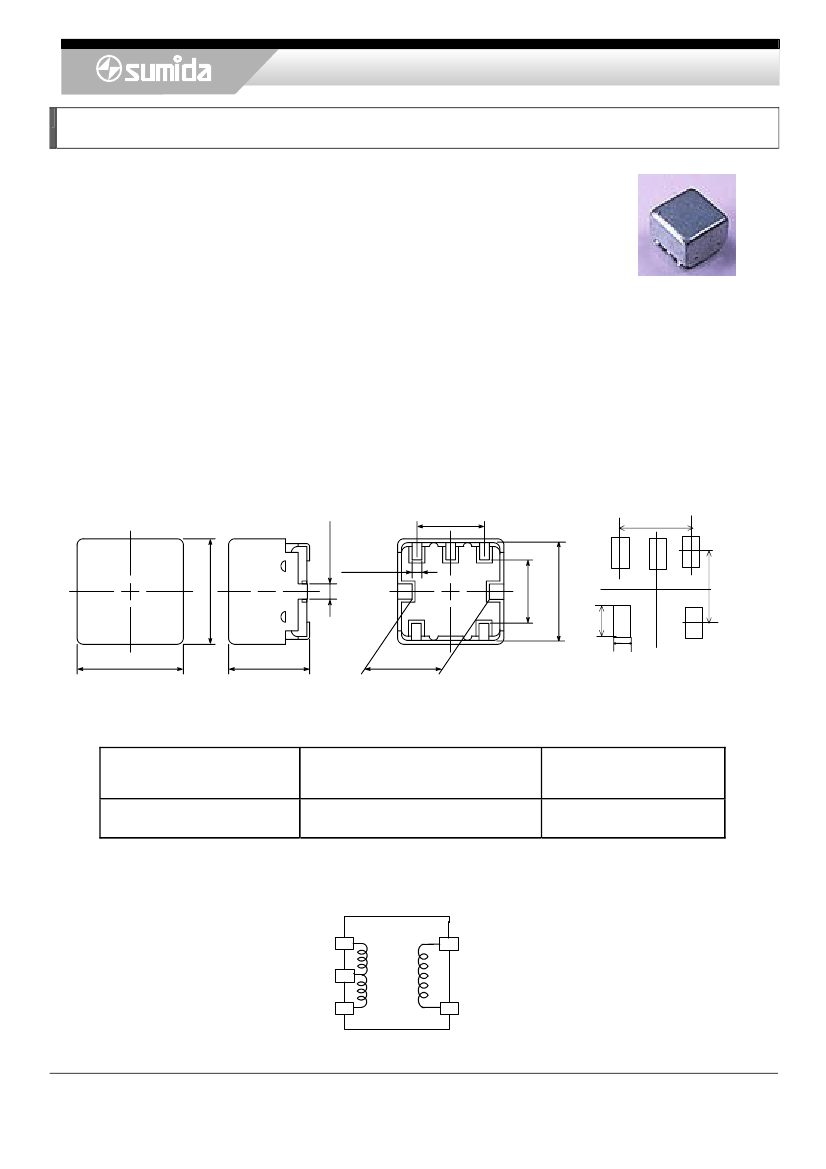

General Power Transformer <SMD Type: CM Series>

Type: CM-5

◆

Product Description

・5.9×5.9mm

Max.(L×W), 5.0mm Max. Height.

・Inductance

range: 10μH∼5.6mH.

・Rated

current range: 21mA∼490mA.

・5

Terminal pins’ type gives a flexible design as inductors or transformers.

・Custom

design is available.

◆

Featurex

・Magnetically

shielded construction.

・Ideally

used in Notebook PC, LCD TV,DVD, Game machine, STB , Projector, Power supply

module etc as DC-DC Converter inductors or transformers.

・RoHS

Compliance.

◆

Dimensions (mm)

0.7±0.15

◆

Land Pattern (mm)

3.5±0.2

3.5

5.6±0.3

3.5±0.5

＋0.5

5.2−0.2

0.5±0.1

4.4

2.0

5.6±0.3

4.6±0.4

4.0±0.5

◆

Specification (for transformers)

Sample No.

6301-T005

Inductance (6-4)

100KHz/0.1V

100µH

+40％

-20％

Rate Current(6-4)

(mA)※1

135

※

Schematics (Bottom)

“ S” is winding start.

Please refer to the sales offices on our website for a representative near you

www.sumida.com

1/2
