RL-5480
DESCRIPTION
• Mini-Drum Inductors

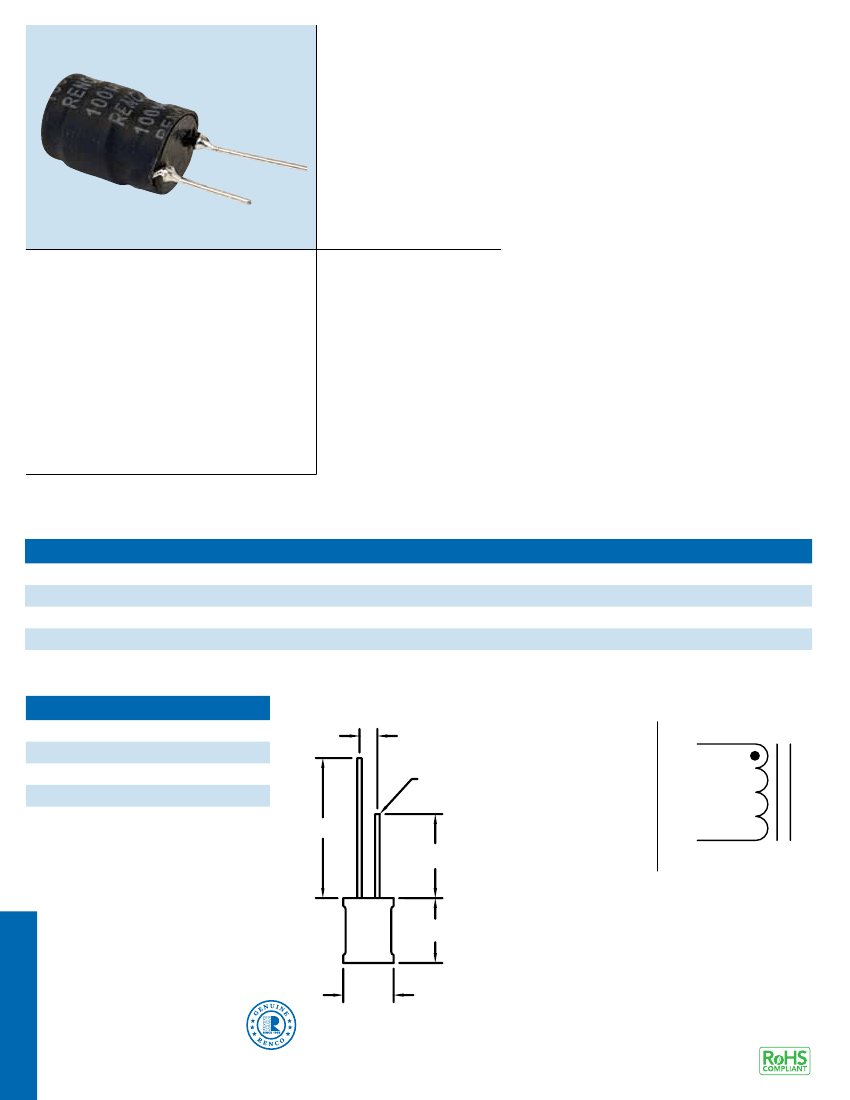

“MINI-DRUM” INDUCTORS
FEATURES & APPLICATIONS
•
•
•
•
•
•
259 standard values from which to choose. Inductances range
from 3.9µH to 270,000µH
Current capabilities up to 4 A, and a saturation current as
high as 14.2 A
High saturation materials make these coils ideal for use in
switching regulated power supply applications
Small size and staggered lead length make them easy
for PCB insertion
Available in Ammo pack for auto insertion
Typical applications include: power supplies and EMI suppression
ENVIRONMENTAL DATA
•
•
Storage temperature range:
-55°C to +130°C
Operating temperature range:
-40°C to +130°C
PACKAGING INFORMATION
• Packaging information: pg. 495
Verify operation with sample in actual circuit. Order samples at www.rencousa.com.
MECHANICAL DIMENSIONS
U.S. Standard (mm)
PART NUMBER
RL-5480-1
RL-5480-2
RL-5480-3
RL-5480-4
RL-5480-5
A (MAX.)
0.225 (5.715)
0.310 (7.870)
0.375 (9.525)
0.480 (12.200)
0.625 (15.875)
B (MAX.)
0.290 (7.366)
0.365 (9.271)
0.450 (11.430)
0.710 (18.034)
0.700 (17.780)
C (MIN.)
0.335 (8.500)
0.335 (8.500)
0.335 (8.500)
0.335 (8.500)
0.335 (8.500)
D (MIN.)
0.590 (15.000)
0.590 (15.000)
0.590 (15.000)
0.590 (15.000)
0.590 (15.000)
E (TYP.)
0.020 (0.508)
0.025 (0.635)
0.032 (0.813)
0.032 (0.813)
0.040 (1.016)
F*
0.080 (2.032)
0.118 (3.00)
0.197 (5.00)
0.290 (7.366)
0.300 (7.620)
SCHEMATIC
ST
* LEADS EASILY FORMABLE TO F DIMENSIONS
PART NUMBER
RL-5480-1
RL-5480-2
RL-5480-3
RL-5480-4
RL-5480-5
PART WEIGHT
0.50g (0.018oz)
0.75g (0.026oz)
3.0g (0.106oz)
7.0g (0.247oz)
12.0g (0.423oz)
D
FRONT VIEW
F
WHERE WIRE EXITS OVER FLANGE TO
LEAD TERMINATION ADD 0.050 (1.27)
E
TOTAL TO MAX. (2PL)
FN
C
B
A
CHOKES
RENCO ELECTRONICS INC.
595 International Place, Rockledge, FL 32955-4200 USA • www.rencousa.com • ISO 9001 Certified
Toll Free Engineering Hot Line: 800.645.5828 • P: 321.637.1000 • F: 321.637.1600
RL-5480-1
Renco Part No.
RL-5480-1
RL-5480-1-3.9
RL-5480-1-4.7
RL-5480-1-5.6
RL-5480-1-6.8
RL-5480-1-8.2
RL-5480-1-10
RL-5480-1-12
RL-5480-1-15
RL-5480-1-18
RL-5480-1-22
RL-5480-1-27
RL-5480-1-33
RL-5480-1-39
RL-5480-1-47
RL-5480-1-56
RL-5480-1-68
RL-5480-1-82
RL-5480-1-100
RL-5480-1-120
RL-5480-1-150
RL-5480-1-180
RL-5480-1-220
RL-5480-1-270
RL-5480-1-330
RL-5480-1-390
RL-5480-1-470
RL-5480-1-560
RL-5480-1-680
RL-5480-1-820
RL-5480-1-1000
RL-5480-1-1200
RL-5480-1-1500
RL-5480-1-1800
RL-5480-1-2200
RL-5480-1-2700
RL-5480-1-3300
RL-5480-1-3900
RL-5480-1-4700
RL-5480-1-5600
RL-5480-1-6800
Inductance
(µH)
3.9
4.7
5.6
6.8
8.2
10.0
12.0
15.0
18.0
22.0
27.0
33.0
39.0
47.0
56.0
68.0
82.0
100.0
120.0
150.0
180.0
220.0
270.0
330.0
390.0
470.0
560.0
680.0
820.0
1000.0
1200.0
1500.0
1800.0
2200.0
2700.0
3300.0
3900.0
4700.0
5600.0
6800.0
DCR
Max.
(Ohms)
0.030
0.034
0.036
0.040
0.054
0.060
0.072
0.078
0.108
0.144
0.168
0.200
0.220
0.240
0.265
0.380
0.445
0.590
0.640
0.730
0.850
1.200
1.320
1.750
1.950
2.000
2.900
3.100
4.300
5.500
6.300
7.200
9.600
11.500
13.000
17.000
19.000
24.000
29.000
42.000
Isat
(A)
1.50
1.35
1.25
1.15
1.00
0.920
0.840
0.770
0.720
0.660
0.600
0.540
0.470
0.430
0.390
0.360
0.330
0.300
0.270
0.245
0.220
0.190
0.180
0.165
0.150
0.140
0.125
0.110
0.100
0.092
0.082
0.75
0.68
0.062
0.054
0.049
0.045
0.043
0.040
0.037
Irms
(A)
0.800
0.800
0.800
0.800
0.620
0.620
0.620
0.620
0.490
0.385
0.300
0.300
0.300
0.300
0.300
0.250
0.250
0.190
0.190
0.190
0.190
0.150
0.150
0.120
0.120
0.120
0.095
0.095
0.076
0.060
0.060
0.060
0.046
0.046
0.046
0.036
0.036
0.030
0.030
0.024
SRF
(MHz)
(Typ)
43.000
31.000
27.000
26.000
26.000
21.000
19.000
17.000
16.000
12.000
12.000
11.000
9.000
9.000
9.000
6.000
6.000
5.000
4.000
4.000
4.000
3.000
3.000
3.000
2.000
2.000
2.000
2.000
2.000
1.000
1.000
1.000
1.000
1.000
1.000
1.000
1.000
0.866
0.781
0.774
NOTES:
1. INDUCTANCE ± 10% TESTED AT
10 kHz, 0.1 Vrms
2. VALUES BELOW 10µH ARE ±20%
3. ELECTRICAL SPECIFICATIONS
MEASURED AT 25ºC
4. 5% TOLERANCE OPTIONAL
ON VALUES 22µH AND ABOVE
5. Isat - DC CURRENT THAT WILL CAUSE
INDUCTANCE TO DROP BY 5%
6. Irms - CURRENT THAT CAUSES
THE TEMPERATURE TO RISE APPROX.
40ºC ABOVE AMBIENT OF 25ºC
7. PART FINISHED WITH 135ºC
POLYOLEFIN SLEEVING THAT
MEETS UL-224 VW-1
RL-5480-1 TABLE CONTINUES ON FOLLOWING PAGE
595 International Place, Rockledge, FL 32955-4200 USA • www.rencousa.com • ISO 9001 Certified
Toll Free
Engineering Hot Line: 800.645.5828 • P: 321.637.1000 • F: 321.637.1600
CHOKES
RENCO ELECTRONICS INC.
RL-5480-1, RL-5480-2
