CDRH125/LDNP-101MB datasheet, PDF

Datasheet> All Categories > Passive components> inductor> CDRH125/LDNP-101MB

CDRH125/LDNP-101MB: DescriptionGeneral Purpose Inductor, 100uH, 20%, 1 Element, Ferrite-Core, SMD, 4848, CHIP, 4848, HALOGEN FREE AND ROHS COMPLIANT; CategoryPassive components inductor; File Size168KB，3 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric View All

CDRH125/LDNP-101MB Overview

General Purpose Inductor, 100uH, 20%, 1 Element, Ferrite-Core, SMD, 4848, CHIP, 4848, HALOGEN FREE AND ROHS COMPLIANT

CDRH125/LDNP-101MB Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	4848
Reach Compliance Code	unknown
ECCN code	EAR99
uppercase and lowercase codes	4848
structure	Magnetically Shielded
core material	Ferrite
DC Resistance	0.187 Ω
Nominal inductance(L)	100 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CDRH
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Package height	6 mm
Package length	12 mm
Package form	SMT
Package width	12 mm
method of packing	Box
Maximum rated current	1.6 A
series	CDRH125/LD
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

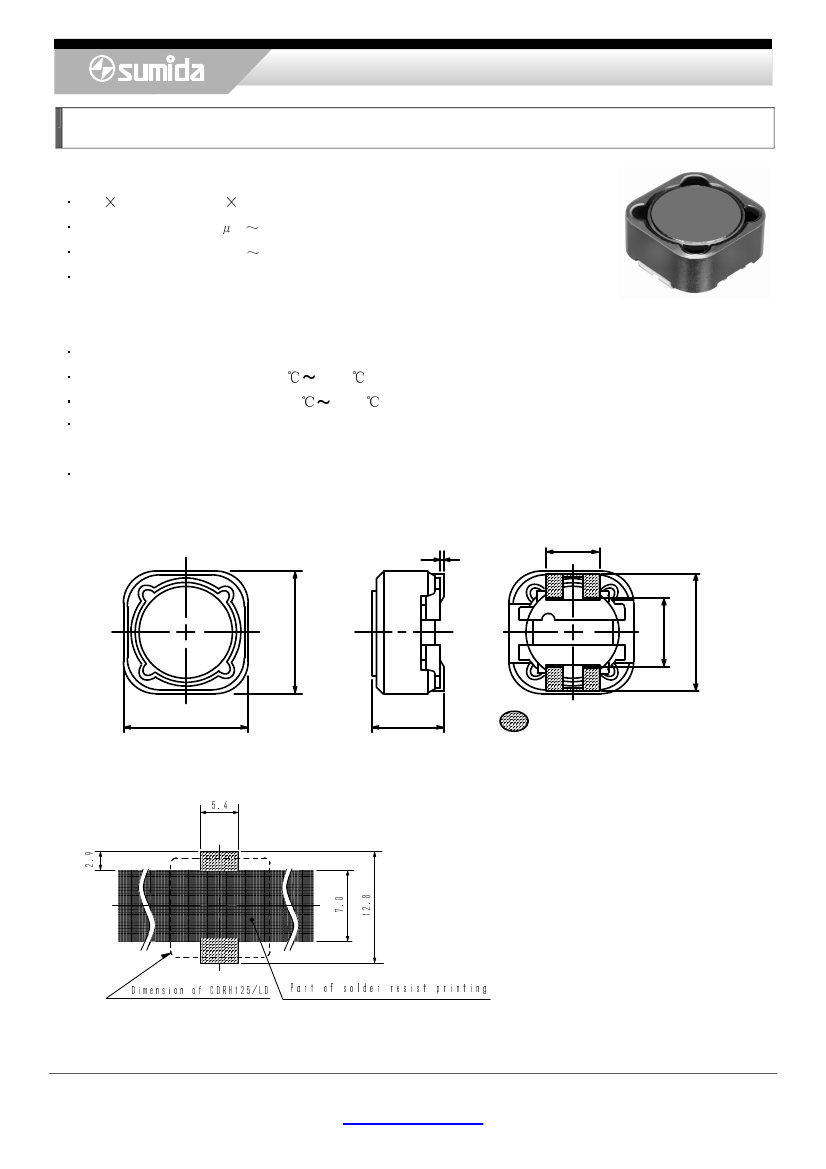

Power Inductors <SMD Type: CDRH Series>

Type: CDRH125/LD

◆

Product Description

12.3 12.3mm Max.(L W ), 6.0mm Max. Height.

Inductance range:

7.5 H 1.0mH.

Rated current range:

0.46 5.6A.

Custom design is available.

◆

Feature

Magnetically shielded construction.

Operating temperature range: -40

+100 (Including coil’s self temperature rise).

Ideally used in Notebook PC, LCD TV,DVD, Game machine, STB ,Projector etc as DC-DC converter

inductors.

RoHS compliance and Halogen Free.

◆

Dimensions (mm)

12.0±0.3

◆

Land Pattern (mm)

4.5

Max.6.0

Electrode

Please refer to the sales offices on our website for a representative near you

www.sumida.com

11.8±0.2

7.6±0.2

g ni t n i rp t s i se r r e dl o s fo t r a P

℃ ½℃

Storage temperature range: -40

DL/521HRDC fo noisnemiD

½μ

・

+100 .

0.2

5.0

1/3
