CDRH50D43RNP-470MB

Description
General Purpose Inductor, 47uH, 20%, 1 Element, Ferrite-Core, SMD, 2020,
CategoryPassive components    inductor
File Size234KB,2 Pages
ManufacturerSUMIDA
Websitehttp://www.sumida.com/
Environmental Compliance
Download Datasheet Parametric View All

CDRH50D43RNP-470MB Overview

General Purpose Inductor, 47uH, 20%, 1 Element, Ferrite-Core, SMD, 2020,

CDRH50D43RNP-470MB Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instruction2020
Reach Compliance Codeunknown
ECCN codeEAR99
uppercase and lowercase codes2020
structureMagnetic Shielded
core materialFerrite
DC Resistance0.324 Ω
Nominal inductance(L)47 µH
Inductor typeGENERAL PURPOSE INDUCTOR
Manufacturer's serial numberCDRH50D43R
Number of functions1
Number of terminals2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
Package height4.3 mm
Package length5 mm
Package formSMT
Package width5 mm
method of packingBox
Maximum rated current0.91 A
seriesCDRH50D43R
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldYES
surface mountYES
Terminal locationDUAL ENDED
Terminal shapeWRAPAROUND
Test frequency0.1 MHz
Tolerance20%
Base Number Matches1

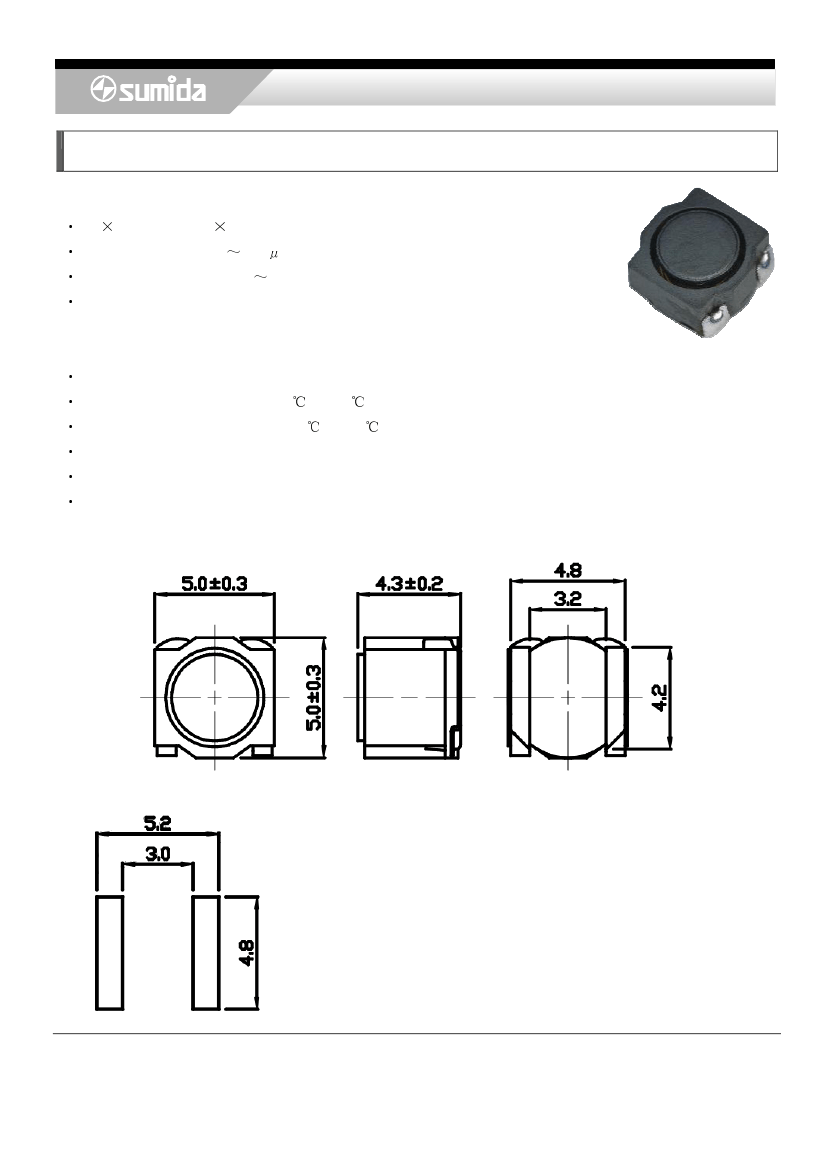

Power Inductors <SMD Type: CDRH Series>
Type: CDRH50D43R
Product Description
5.3 5.3mm Max.(L W), 4.5mm Max. Height.
Inductance range: 2.2 220 H.
Rated current range: 0.36 3.60A.
Custom design is available.
Feature
Magnetically shielded construction.
Operating temperature range: -40
Product weight: 0.38g (Ref.).
RoHS compliance.
Ideally used in Slim-type TV, car navigation, etc.
Dimensions (mm)
Land Pattern (mm)
Please refer to the sales offices on our website for a representative near you
www.sumida.com
℃ ℃
℃ ℃
Storage temperature range: -40 ~+105 .
~+105
½
μ ½
×
× ・
(including coil’s self-heat).
1/2
