CDH30D14DHF-1R6NB datasheet, PDF

Datasheet> All Categories > Passive components> inductor> CDH30D14DHF-1R6NB

CDH30D14DHF-1R6NB: DescriptionGeneral Purpose Inductor, 1.6uH, 30%, 1 Element, SMD, ROHS COMPLIANT; CategoryPassive components inductor; File Size119KB，2 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

CDH30D14DHF-1R6NB Overview

General Purpose Inductor, 1.6uH, 30%, 1 Element, SMD, ROHS COMPLIANT

CDH30D14DHF-1R6NB Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
DC Resistance	0.066 Ω
Nominal inductance(L)	1.6 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CDH
Number of functions	1
Number of terminals	2
Maximum rated current	1.83 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	0.1 MHz
Tolerance	30%
Base Number Matches	1

Preview

Download Datasheet

View All

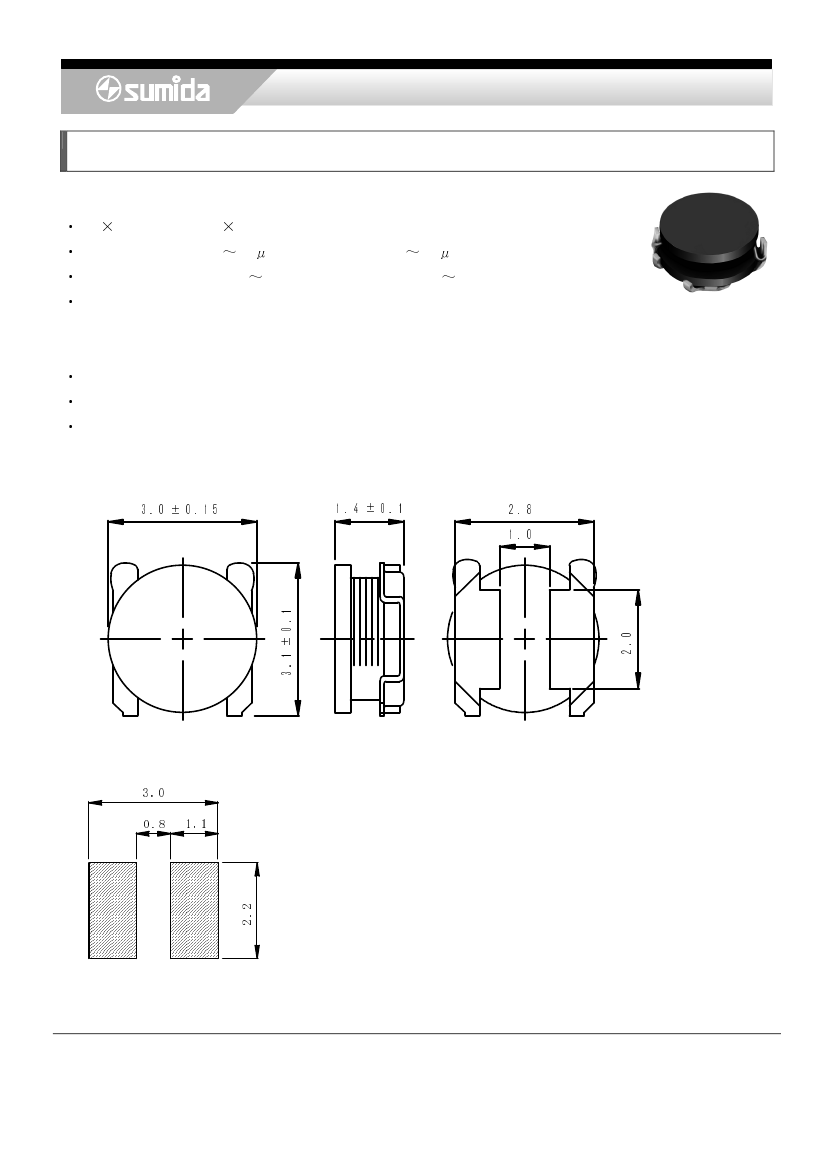

Power Inductors <SMD Type: CDH Series>

Type: CDH30D14D, CDH30D14D/LD

◆

Product Description

3.2 3.15mm Max.(L W ), 1.5mm Max. Height.

Rated current range:0.51 2.20A(CDH30D14D); 0.36

Custom design is available.

◆

Feature

Magnetically unshielded construction.

Ideally used in Mobilephone,PDA,MP3,DSC/DVC,HDD,etc as DC-DC Converter inductors.

RoHS Compliance and Halogen free.

◆

Dimensions (mm)

8.2

1 .0± 4 .1

5 1. 0± 0 . 3

◆

Land Pattern (mm)

0.3

Please refer to the sales offices on our website for a representative near you

www.sumida.com

0.1

μ ½

Inductance range:1.0 15 H(CDH30D14D);1.0

μ ½

1.1

8.0

・

× ・

・

22 H(CDH30D14D/LD);

1.62A(CDH30D14D/LD).

1/2

CDH30D14DHF-1R6NB Related Products

	CDH30D14DHF-1R6NB	CDH30D14DHF-2R2NB	CDH30D14DHF-3R3MB	CDH30D14DHF-100MB	CDH30D14DHF-1R0NB	CDH30D14DHF-150MB	CDH30D14DHF-6R8MB	CDH30D14DHF-4R7MB
Description	General Purpose Inductor, 1.6uH, 30%, 1 Element, SMD, ROHS COMPLIANT	General Purpose Inductor, 2.2uH, 30%, 1 Element, SMD, ROHS COMPLIANT	General Purpose Inductor, 3.3uH, 20%, 1 Element, SMD, ROHS COMPLIANT	General Purpose Inductor, 10uH, 20%, 1 Element, SMD, ROHS COMPLIANT	General Purpose Inductor, 1uH, 30%, 1 Element, SMD, ROHS COMPLIANT	General Purpose Inductor, 15uH, 20%, 1 Element, SMD, ROHS COMPLIANT	General Purpose Inductor, 6.8uH, 20%, 1 Element, SMD, ROHS COMPLIANT	General Purpose Inductor, 4.7uH, 20%, 1 Element, SMD, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
DC Resistance	0.066 Ω	0.087 Ω	0.121 Ω	0.408 Ω	0.048 Ω	0.613 Ω	0.271 Ω	0.206 Ω
Nominal inductance(L)	1.6 µH	2.2 µH	3.3 µH	10 µH	1 µH	15 µH	6.8 µH	4.7 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CDH	CDH	CDH	CDH	CDH	CDH	CDH	CDH
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2
Maximum rated current	1.83 A	1.53 A	1.28 A	0.74 A	2.25 A	0.59 A	0.9 A	1.05 A
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	NO	NO	NO	NO	NO	NO	NO	NO
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE
Test frequency	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz
Tolerance	30%	30%	20%	20%	30%	20%	20%	20%
Maker	-	-	SUMIDA	SUMIDA	SUMIDA	SUMIDA	SUMIDA	SUMIDA
