POWER INDUCTORS <SMD Type: CDRH Series>
Type: CDRH62 , CDRH62B
◆
Product Description
・6.9×6.5mm
Max.(L×W), 3.0mm Max. Height.
・Inductance
Range:6.8½330μH(CDRH62); 2.9½330μH(CDRH62B).
・Rated
current range:0.18½1.57A(CDRH62); 0.19½1.94A(CDRH62B).
・In
addition to the standards versions shown here, custom inductors are also
available to meet exact your requirements.
◆
Feature
・
Magnetically shielded construction.
・Ideally
used in Notebook PC, LCD TV,Game machine,HDD,DSC/DVC,etc as DC-DC
Converter inductors.
・RoHS
Compliance.
◆

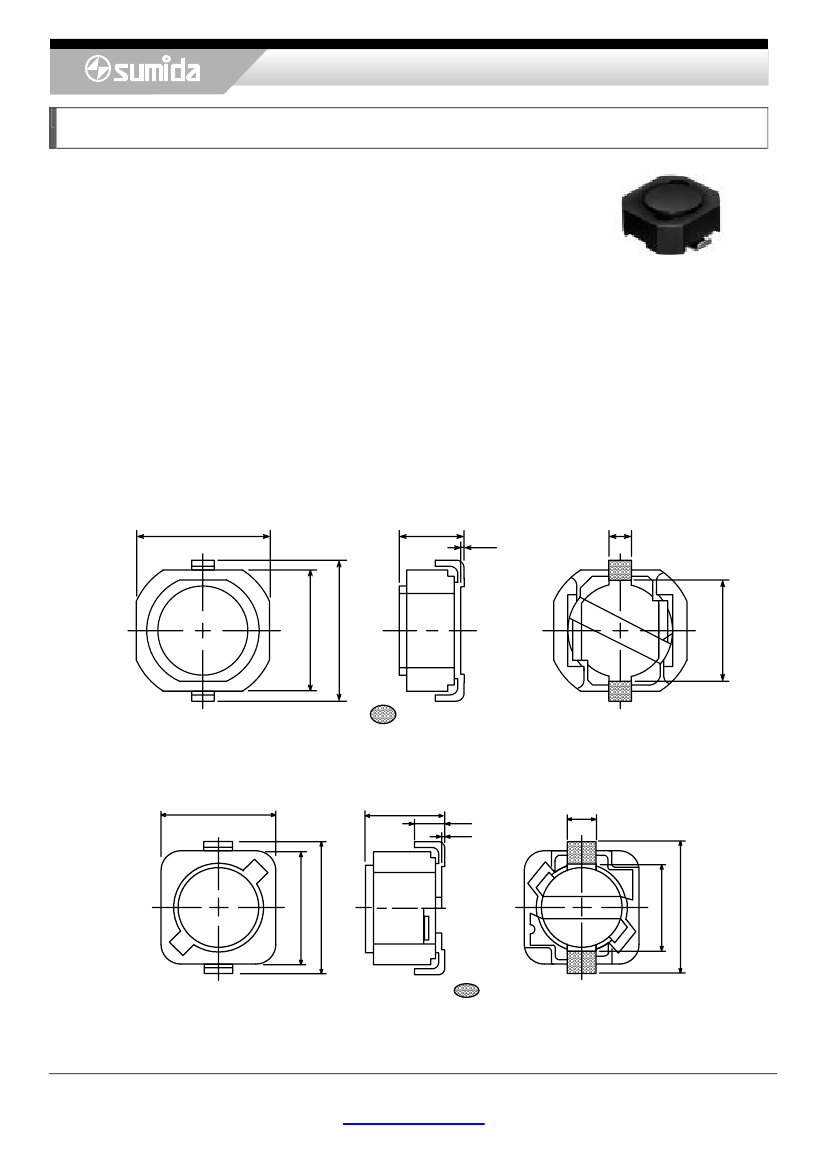

Dimensions (mm)
6.2±0.3
3.0 Max.
0.1
1.5
6.6±0.3
Electrode terminal
CDRH62
6.2±0.3
3.0 Max.
1.5±0.2
0.6
0.1
5.9±0.3
6.6±0.3
Electrode terminal
CDRH62B
Please refer to the sales offices on our website for a representative near you
www.sumida.com
4.6
6.6±0.3
4.6±0.2
1/3
5.9±0.3
POWER INDUCTORS <SMD Type: CDRH Series>
Type: CDRH62 , CDRH62B
◆
Land Pattern (mm)
1.9
Dimension of CDHR62
Part of silk screen
◆
Specification(CDRH62)
Part Name
※
CDRH62NP-6R8N□
CDRH62NP-8R2N□
CDRH62NP-1ØØM□
CDRH62NP-12ØM□
CDRH62NP-15ØM□
CDRH62NP-18ØM□
CDRH62NP-22ØM□
CDRH62NP-27ØM□
CDRH62NP-33ØM□
CDRH62NP-39ØM□
CDRH62NP-47ØM□
CDRH62NP-56ØM□
CDRH62NP-68ØM□
CDRH62NP-82ØM□
CDRH62NP-1Ø1M□
CDRH62NP-121M□
CDRH62NP-151M□
CDRH62NP-181M□
CDRH62NP-221M□
CDRH62NP-271M□
CDRH62NP-331M□
Stamp
6R8
8R2
100
120
150
180
220
270
330
390
470
560
680
820
101
121
151
181
221
271
331
Inductance
［Within½(μH)
6.8±25%
8.2±25%
10±20%
12±20%
15±20%
18±20%
22±20%
27±20%
33±20%
39±20%
47±20%
56±20%
68±20%
82±20%
100±20%
120±20%
150±20%
180±20%
220±20%
270±20%
330±20%
D.C.R.(mΩ)
Max.(Typ.)
(at 20℃)
0.12
0.13
0.17
0.18
0.26
0.30
0.38
0.43
0.48
0.69
0.77
0.85
1.21
1.42
1.50
2.10
2.33
3.20
3.69
4.89
5.42
Rated current
(Ａ)
※1
1.57
1.38
1.28
1.19
0.97
0.94
0.81
0.71
0.64
0.59
0.54
0.52
0.49
0.41
0.39
0.30
0.28
0.25
0.23
0.20
0.18
Measuring
frequency
at 7.96MHz
7.4
4.6
at 2.52MHz
at 1 kHz
※1
Rated current: The DC current at which the inductance decreases to 70% of it's nominal value
or when
△t=40℃,
whichever is lower(Ta=20℃).
Please refer to the sales offices on our website for a representative near you
www.sumida.com
2/3
POWER INDUCTORS <SMD Type: CDRH Series>
Type: CDRH62 , CDRH62B
◆
Specification(CDRH62B)
Part Name
※
CDRH62BNP-2R9N□
CDRH62BNP-4RØN□
CDRH62BNP-5R5N□
CDRH62BNP-6R3N□
CDRH62BNP-7R1N□
CDRH62BNP-8RØN□
CDRH62BNP-1ØØM□
CDRH62BNP-12ØM□
CDRH62BNP-15ØM□
CDRH62BNP-18ØM□
CDRH62BNP-22ØM□
CDRH62BNP-27ØM□
CDRH62BNP-33ØM□
CDRH62BNP-39ØM□
CDRH62BNP-47ØM□
CDRH62BNP-56ØM□
CDRH62BNP-68ØM□
CDRH62BNP-82ØM□
CDRH62BNP-1Ø1M□
CDRH62BNP-121M□
CDRH62BNP-151M□
CDRH62BNP-181M□
CDRH62BNP-221M□
CDRH62BNP-271M□
CDRH62BNP-331M□
Inductance
（μH）
Stamp
［Within½
※1
2R9
2.9＋40%
－20%
4R0
4.0＋40%
－20%
5R5
5.5＋40%
－20%
6R3
6.3＋40%
－20%
7R1
7.1＋40%
－20%
8R0
8.0＋40%
－20%
100
10±20%
120
12±20%
150
15±20%
180
18±20%
220
22±20%
270
27±20%
330
33±20%
390
39±20%
470
47±20%
560
56±20%
680
68±20%
820
82±20%
101
100±20%
121
120±20%
151
150±20%
181
180±20%
221
220±20%
271
270±20%
331
330±20%
D.C.R.(Ω)
Max.(Typ.)
(at 20℃)
68m (50m)
80m (59m)
96m (71m)
0.10 (77m)
0.11 (81m)
0.12 (87m)
0.15 (0.11)
0.20 (0.15)
0.23 (0.17)
0.27 (0.20)
0.34 (0.25)
0.38 (0.29)
0.45 (0.33)
0.49 (0.37)
0.69 (0.51)
0.78 (0.58)
1.07 (0.83)
1.21 (0.93)
1.39 (1.07)
1.90 (1.46)
2.18 (1.68)
2.77 (2.13)
3.12 (2.40)
4.38 (3.37)
4.94 (3.80)
Rated current
(A)
※1
1.94
1.63
1.40
1.30
1.22
1.15
1.10
1.00
0.90
0.80
0.74
0.66
0.59
0.54
0.50
0.46
0.42
0.38
0.34
0.31
0.28
0.26
0.23
0.22
0.19
at 1 kHz
at 7.96MHz
Measuring
frequency
※
Description of part name
CDRH62BNP-2R9N□
B Box
C
Carrier Tape
※1
Rated current: The DC current at which the inductance decreases to 75% of it's nominal value
or when
△t=40℃,
whichever is lower(Ta=20℃).
Please refer to the sales offices on our website for a representative near you
www.sumida.com
3/3
