CT1008LSCF-5R6J datasheet, PDF

Datasheet> All Categories > Passive components> inductor> CT1008LSCF-5R6J

CT1008LSCF-5R6J: DescriptionGeneral Purpose Inductor, 5.6uH, 5%, 1 Element, Ferrite-Core, SMD, 1111, CHIP, ROHS COMPLIANT; CategoryPassive components inductor; File Size310KB，1 Pages; ManufacturerCT [ Central Technologies ]; Environmental Compliance

Download Datasheet Parametric View All

CT1008LSCF-5R6J Overview

General Purpose Inductor, 5.6uH, 5%, 1 Element, Ferrite-Core, SMD, 1111, CHIP, ROHS COMPLIANT

CT1008LSCF-5R6J Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	1111
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	1111
structure	Chip
core material	FERRITE
DC Resistance	2.5 Ω
Nominal inductance(L)	5.6 µH
Inductor Applications	FILTER CHOKE
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Manufacturer's serial number	CT1008LSC
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Package height	2.1 mm
Package length	2.92 mm
Package form	SMT
Package width	2.79 mm
method of packing	TR
Minimum quality factor (at nominal inductance)	20
Maximum rated current	0.64 A
self resonant frequency	42 MHz
series	CT1008LSCF
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Matte Tin (Sn)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	7.96 MHz
Tolerance	5%
Base Number Matches	1

Preview

Download Datasheet

View All

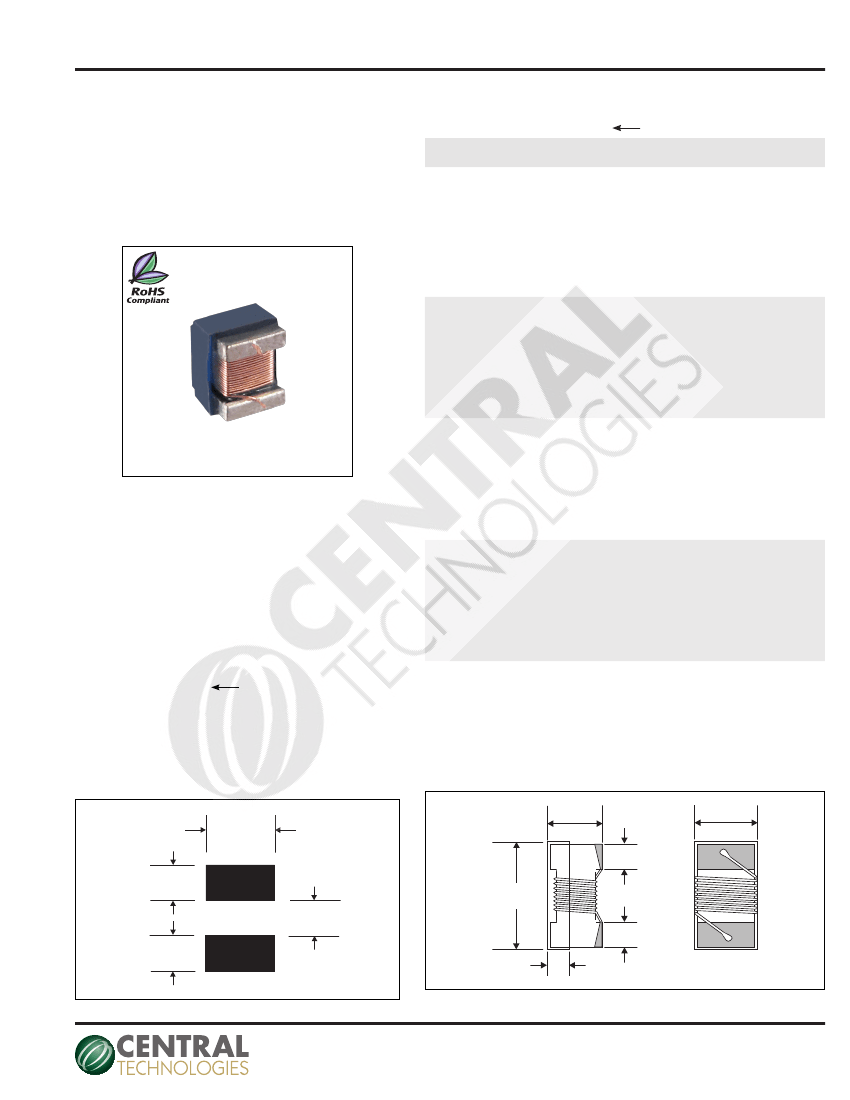

Wire-wound Chip Inductors - Open

www.ctparts.com

From 0.005 µH to 100 µH

CT1008LSCF

Series

Please specify tolerance code when ordering.

CT1008LSCF-22N_

J = ±5%, K = ±10%

Part

Number

CT1008LSCF-5N0K

CT1008LSCF-10NK

CT1008LSCF-12NK

CT1008LSCF-15NK

CT1008LSCF-18NK

CT1008LSCF-22N_

CT1008LSCF-27N_

CT1008LSCF-33N_

CT1008LSCF-39N_

CT1008LSCF-47N_

CT1008LSCF-56N_

CT1008LSCF-68N_

CT1008LSCF-82N_

CT1008LSCF-R10_

CT1008LSCF-R12_

CT1008LSCF-R15_

CT1008LSCF-R18_

CT1008LSCF-R22_

CT1008LSCF-R27_

CT1008LSCF-R33_

CT1008LSCF-R39_

CT1008LSCF-R47_

CT1008LSCF-R56_

CT1008LSCF-R68_

CT1008LSCF-R82_

CT1008LSCF-1R0_

CT1008LSCF-1R2_

CT1008LSCF-1R5_

CT1008LSCF-1R8_

CT1008LSCF-2R2_

CT1008LSCF-2R7_

CT1008LSCF-3R3_

CT1008LSCF-3R9_

CT1008LSCF-4R7_

CT1008LSCF-5R6_

CT1008LSCF-6R8_

CT1008LSCF-8R2_

CT1008LSCF-100_

CT1008LSCF-120_

CT1008LSCF-150_

CT1008LSCF-180_

CT1008LSCF-220_

CT1008LSCF-270_

CT1008LSCF-330_

CT1008LSCF-390_

CT1008LSCF-470_

CT1008LSCF-560_

CT1008LSCF-680_

CT1008LSCF-820_

CT1008LSCF-101_

Inductance

(µH)

.005

.010

.012

.015

.018

.022

.027

.033

.039

.047

.056

.068

.082

.10

.12

.15

.18

.22

.27

.33

.39

.47

.56

.68

.82

1.0

1.2

1.5

1.8

2.2

2.7

3.3

3.9

4.7

5.6

6.8

8.2

100

L Test

Freq.

(MHz)

100

25.2

7.96

2.52

0.796

Fact.

Min.

Q Test

Freq.

(MHz)

100

25.2

7.96

2.52

0.796

SRF

Min.

(MHz)

3000

2500

2400

2300

2200

2100

2000

1600

1500

1400

1300

1200

1100

800

700

550

500

450

425

400

375

350

325

300

260

245

230

182

135

105

DCR

Max.

(W)

.25

.26

.28

.30

.35

.40

.42

.45

.50

.60

.65

.75

.80

.30

.35

.40

.50

.55

.60

.65

.68

.75

.85

1.0

1.1

1.2

1.3

1.5

1.6

1.7

1.9

2.1

2.3

2.5

2.7

3.1

3.5

3.8

4.4

4.8

5.5

6.3

7.1

9.5

11.1

12.1

16.6

Rated

(mA)

2000

1800

1700

1600

1550

1500

1450

1400

1350

1300

1250

1240

1230

1220

900

850

840

830

820

810

800

790

750

740

730

700

650

640

630

600

550

430

400

360

350

330

300

270

250

200

120

SPECIFICATIONS

Not Shown at Actual Size

CHARACTERISTICS

Description:

SMD ferrite core wire-wound chip inductor.

Applications:

LC resonant circuits such as oscillator and signal

generators, impedance matching, circuit isolation, RF filters, disk

drives and computer peripherals, audio and video equipment, TV,

radio and telecommunication equipment.

Operating Temperature:

-25°C to +85°C

Inductance Tolerance:

±5% & ±10%

Testing:

Inductance and Q are tested on an HP4286A at

specified frequency.

Packaging:

Tape & Reel.

Miscellaneous:

RoHS Compliant.

Marking:

Parts are marked with color dots in nano Henries.

Example: 10µH = 10000nH

marking would be Brown, Black,

Orange(103).

Additional Information:

Additional electrical & physical

information available upon request

Samples available. See website for ordering information.

PHYSICAL DIMENSIONS

Size

inches

Max.

2.92

0.113

Max.

2.79

0.108

Max.

2.1

0.081

0.51

0.019

1.52

0.059

0.51

0.019

PAD LAYOUT

Unit: mm

(inch)

1.02

(0.04)

2.54

(0.1)

1.27

(0.05)

Overall

1.02

(0.04)

CT Magnetics reserves the right to make improvements or change specifications without notice

Manufacturer of Passive Components

800-684-5322 Inside US

949-453-1811 Outside US

REV 08.09.05
