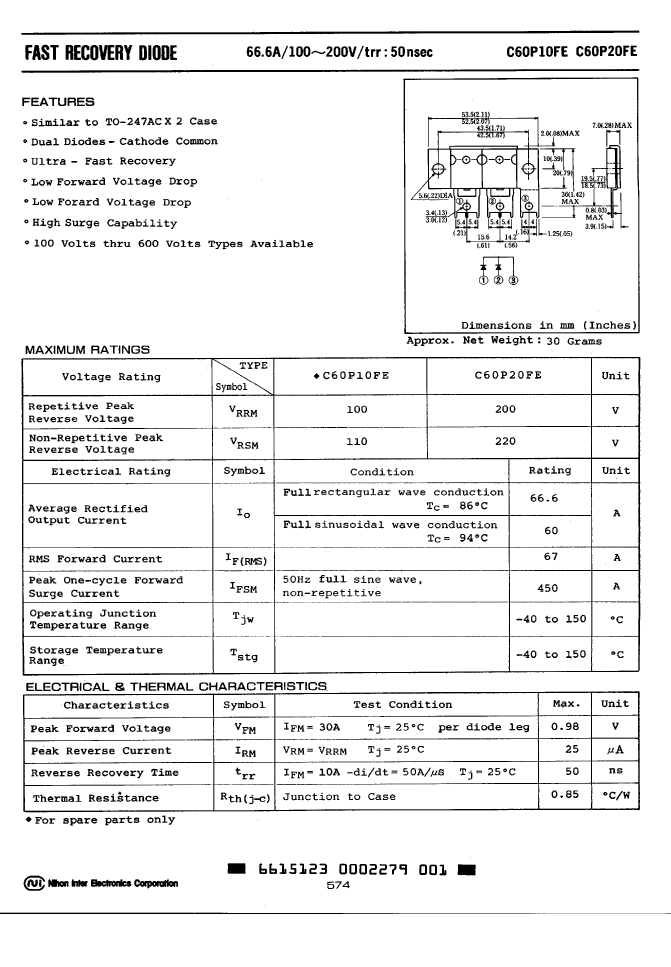

C60P20FE Overview

Rectifier Diode, 1 Phase, 2 Element, 60A, 200V V(RRM), Silicon,

Parameter Name	Attribute value
package instruction	R-XSFM-D3
Reach Compliance Code	unknown
ECCN code	EAR99
application	ULTRA FAST RECOVERY
Shell connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.98 V
JESD-30 code	R-XSFM-D3
Maximum non-repetitive peak forward current	450 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-40 °C
Maximum output current	60 A
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	200 V
Maximum reverse current	25 µA
Maximum reverse recovery time	0.05 µs
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	SINGLE
Base Number Matches	1

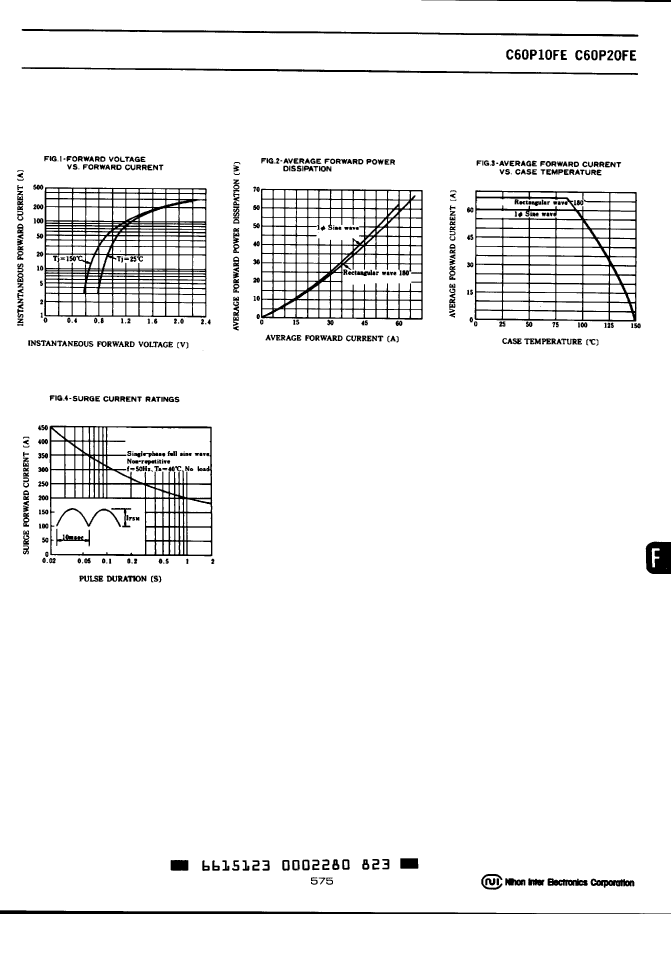

This Material Copyrighted By Its Respective Manufacturer

	C60P20FE	C60P10FE
Description	Rectifier Diode, 1 Phase, 2 Element, 60A, 200V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 60A, 100V V(RRM), Silicon, SIMILAR TO TO-247AC X 2 CASE, 3 PIN
package instruction	R-XSFM-D3	R-PSFM-X3
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
application	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY
Shell connection	CATHODE	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.98 V	0.98 V
JESD-30 code	R-XSFM-D3	R-PSFM-X3
Maximum non-repetitive peak forward current	450 A	450 A
Number of components	2	2
Phase	1	1
Number of terminals	3	3
Maximum operating temperature	150 °C	150 °C
Minimum operating temperature	-40 °C	-40 °C
Maximum output current	60 A	60 A
Package body material	UNSPECIFIED	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	200 V	100 V
Maximum reverse current	25 µA	25 µA
Maximum reverse recovery time	0.05 µs	0.05 µs
surface mount	NO	NO
Terminal form	SOLDER LUG	UNSPECIFIED
Terminal location	SINGLE	SINGLE
