REVISION BF
DO NOT
SCALE FROM
THIS PRINT
CLM-1XX-XX-XX-D-XX
No OF POSITIONS / ROW
-02 THRU -50
LEAD STYLE SPEC
-02: SURFACE MOUNT
(USE C-117-01-X)
PLATING SPECIFICATION
-F: 3µ" FLASH SELECTIVE GOLD IN CONTACT
AREA MATTE TIN ON TAIL
(PRE-PLATED CONTACT)
-L: 10µ" LIGHT SELECTIVE GOLD IN CONTACT
AREA MATTE TIN ON TAIL
(PRE-PLATED CONTACT)
-G: 10µ" GOLD IN CONTACT AREA 3µ" ON TAIL
(POST-PLATED CONTACT)
-H: 30µ" HEAVY GOLD IN CONTACT AREA
3µ" ON TAIL
(POST-PLATED CONTACT)
-LM: 10µ" LIGHT SELECTIVE GOLD IN CONTACT
AREA MATTE TIN ON TAIL
(PRE-PLATED CONTACT)
-FM: 3µ" FLASH SELECTIVE GOLD IN CONTACT
AREA MATTE TIN ON TAIL
(PRE-PLATED CONTACT)
.1000 2.540
REF
C-117-01-X
OPTION
-P: PICK & PLACE PAD
(AVAILABLE ON POS 7 THRU 50 ONLY)
(SEE FIG 3, SHT 2)(USE LMP-04)
-TR: TAPE & REEL
-BE: BOTTOM ENTRY ONLY
(SEE FIG 2)(USE CLM-XX-DBE-XX)
-PA: PICK & PLACE PAD W/ ALIGNMENT PINS
(SEE FIG 4, SHT 2)
-A: ALIGNMENT PIN (USE CLM-XX-D-XX)
(AVAILABLE ON POS 3 THRU 50 ONLY)
(SEE FIG 5, SHT 2)
-K: POLYIMIDE FILM PAD
(AVAILABLE ON POS 7 THRU 50 ONLY)
(.005 [.13] THICKNESS)(SEE FIG 6, SHT 2)
(USE K-DOT-.138-.250-.005)
BODY SPEC
-D: DOUBLE ROW
(USE CLM-XX-D)
FIG 2
(SAME AS FIG 1 EXCEPT INSULATOR)
C
(No OF POS. X .03937[1.0000] + .0125[.318]) .008
(SEE NOTE 3 AND 7)
(SEE NOTE 8)
C
L
.0394 1.000
C-117-01-X
.0110 0.279 x .0050[.127] REF
No. OF POS x .03937[1.0000] - .03937[1.0000]
REF
2 MAX SWAY
(ANY DIRECTION)
"A"
.0835 2.121 REF
C
.0885 2.248
(MEASURED AT BEND)
0°±3°
C
C
SEE NOTE 9

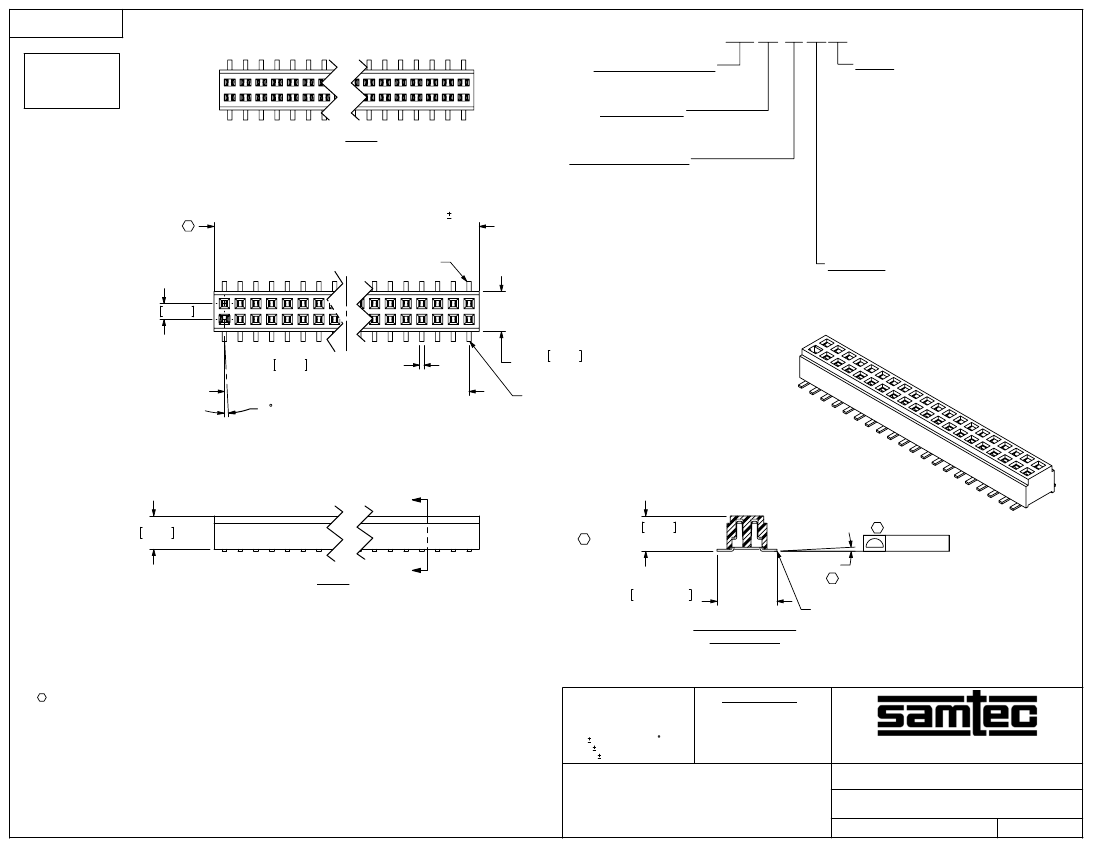

FIG 1
"A"
.150±.010 3.81±0.254
(SEE NOTE 5)
SECTION "A"-"A"
SCALE 4 : 1
BURR SIDE (SEE NOTE 5)
NOTES:
1.
C
REPRESENTS CRITICAL DIMENSION.
2. MINIMUM PUSHOUT FORCE: .5 LB.
3. WILL LOSE A POSITION FOR EVERY CUT MADE ON
A SOCKET STRIP.
4. POSITIONS -05 THROUGH -50 ARE TO BE TUBED. POSITIONS
-02 THRU -04 TO BE LAYER PACKAGED ONLY.
5. SHEAR TAILS TO DIMENSIONS SHOWN, .003 MAX SHEAR BURR.
6. PARTS TO BE SYMMETRICAL ABOUT C .
L
7. CUT FLASH TO BE .010 [.25] MAX WITH
NO FLASH ALLOWED IN HOLES OR
EXTENDING BELOW LEADS.
8. ENDWALL AFTER CUTTING: .0155±.0025 [.398±.064]
9. COPLANARITY TO BE .0040 FOR POSITIONS 2-25
& .0060 FOR POSITIONS 26-50.
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
BODY: LCP, UL 94 VO
COLOR: BLACK
TERMINAL:
PHOS BRONZE
F:\DWG\MISC\MKTG\CLM-1XX-XX-XX-D-XX-MKT.SLDDRW
LOW PROFILE 1MM x 1MM DOUBLE ROW BODY
CLM-1XX-XX-XX-D-XX
08/10/94
SHEET
1
OF
2
BY:
G. PURVIS
REVISION BF

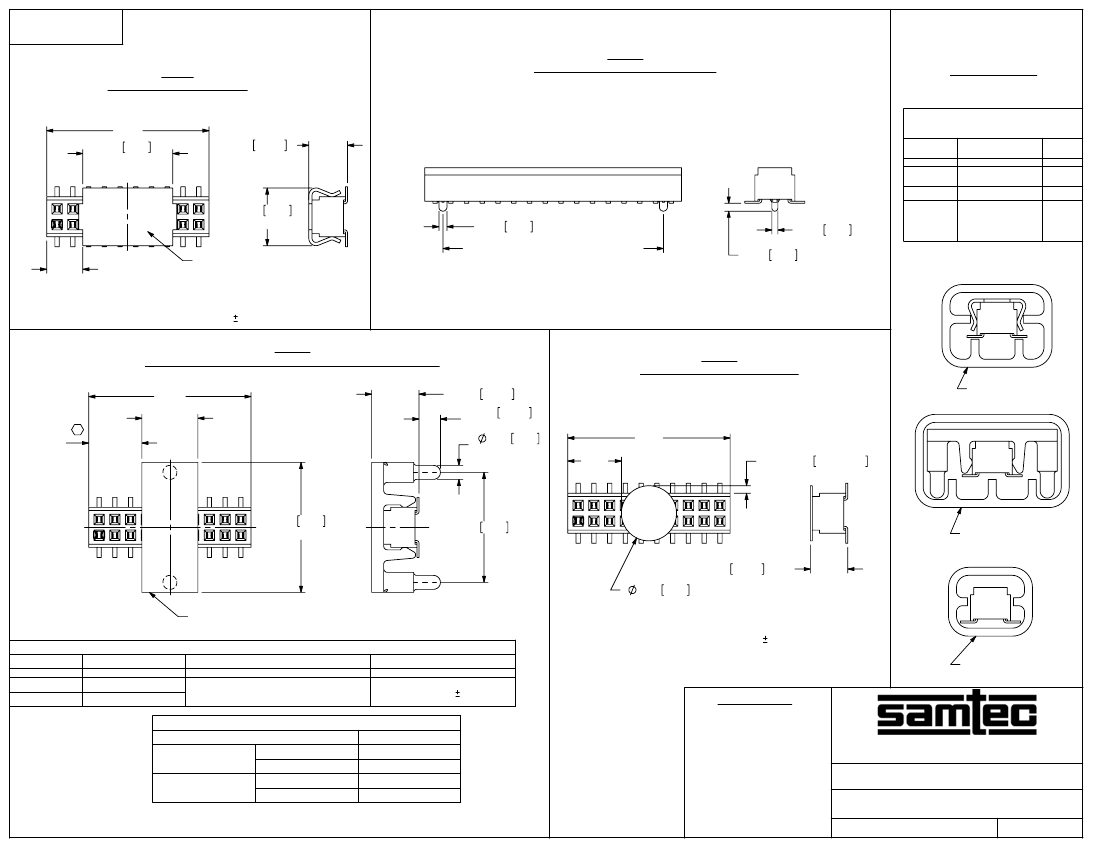

FIG 3
-P: PICK & PLACE PAD
AVAILABLE ON POSITIONS 7 THRU 50 ONLY
"N"
.225 5.72
REF
C
L
.0966 2.454
FIG 5
-A: MOLDED ALIGNMENT PIN
-PACKAGING
(SEE NOTE 4)
TABLE 2
(INCLUDES -D & -D-BE)
OPTION
-P, -A-P
-PA
TUBE
PT-CLX001-D
PT-CLP001-PA
PT-1-24-01-50
PLUG
TP-33
TP-09
TP-33
.144 3.66
REF
LMP-04
.020 0.51 REF
(No OF POS. -2) x .03937 [1.0000]
.020 0.51
.015 0.38 REF
-NONE
-A, -A-K,
-K
"Q"
NOTE: "N" = USED MEASURED DIMENSION (REF)
"Q" = {("N" - .225[5.72]) / 2} .020[.51]
FIG 4
-PA: PICK & PLACE PAD WITH ALIGNMENT PINS
"M"
C
.1185 3.010
.0535 1.359
REF
.035 0.89
(TYP)
FIG 6
-K: POLYAMIDE FILM PAD
AVAILABLE ON POSITIONS 7 THRU 50 ONLY
PT-CLX001-D
"A"
C
L
"P"
"R"
"S"
.019±.010 0.48±0.25
C
L
.325 8.26
REF
C
L
.275 6.99
PT-CLP001-PA
.0935 2.375 REF
.138 3.50
PPP-39-X-X-XX
TABLE 1
"M"
USED MEASURED DIMENSION(REF)
TABLE 3
4-14
16-50
5-15
17-49
NOTE: "R" = USED MEASURED DIMENSION (REF)
"S" = {("R" - .138[3.50]) / 2} .020[.51]
"P"
{("M" - "A") / 2} .010[.25]
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
POS / ROW
4-15
16-50
"A"
.140[3.58] REF
.280[7.11] REF
PT-1-24-01-50
POSITIONS
EVEN
ODD
PAD
PPP-39-E-4-15
PPP-39-E-16-50
PPP-39-O-4-15
PPP-39-0-16-50
F:\DWG\MISC\MKTG\CLM-1XX-XX-XX-D-XX-MKT.SLDDRW
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 4:1
LOW PROFILE 1MM x 1MM DOUBLE ROW BODY
CLM-1XX-XX-XX-D-XX
08/10/94
SHEET
2
OF
2
BY:
G. PURVIS
