CFF2307-0102 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> CFF2307-0102

CFF2307-0102: DescriptionCard Edge Connector, 7 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal,; CategoryThe connector The connector; File Size79KB，2 Pages; ManufacturerSMK; Websitehttps://www.smk.co.jp/

Download Datasheet Parametric View All

CFF2307-0102 Overview

Card Edge Connector, 7 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal,

CFF2307-0102 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	LIF
Connector type	FFC/FPC CONNECTOR
Contact completed and terminated	TIN LEAD
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	7
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

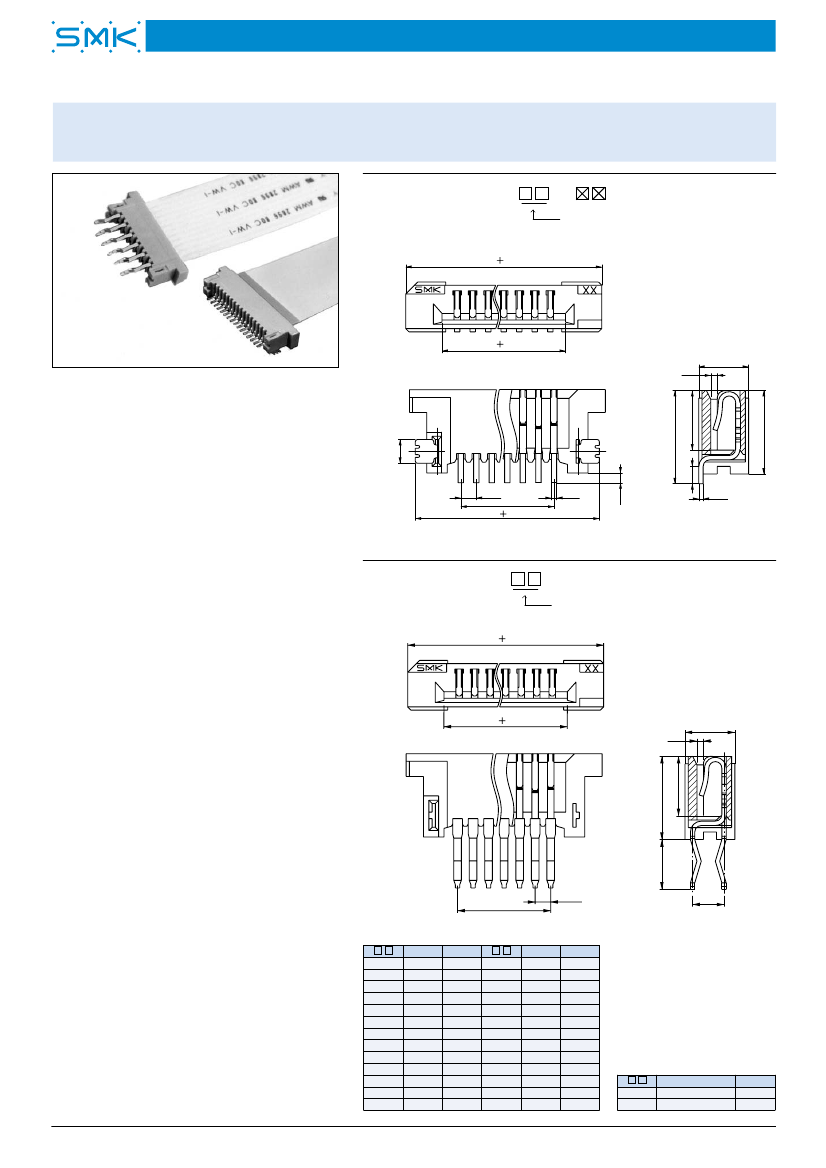

FFC Connector

FC-10

Series

1.0mm Spacing (SMT & DIP Type)

SMT Type

CFF23

-01

No. of Pins

極数

6.6

2.1

3.2

0.4

6.1

3.9(Inserted size)

Features

1. FC-10 series are FFC connectors featuring pins

at 1.0mm spacing.

2. Insertion possible with minimal force due to LIF

structure employed.

3. Choice of versions available, such as SMT and

dip types, and lower or upper contact type.

1.5

Specifications

1. Rating : 0.5A 50V AC/DC max.

2. Contact Resistance : 30mΩ max.

3. Insulation Resistance : 1000MΩ min. at 500V DC

4. Withstanding Voltage : 500V AC for one minute

5. Operating Temperature Range : –25˚C to +70˚C

A 6.0

DIP Type

CFF61

-0101

No. of Pins 極数

Materials and Plating

Housing : Polyphenylene Sulfide (Natural Color)

94V-0

Contact : Phosphor Bronze Tin-lead Plating

6.6

Note

Please contact our local sales agent for supply

on embossed tape.

2.1

0.4

5.5

3.9(Inserted size)

0.6

1.0

0.35

1.3

0.25

3.2

■ 特長

1. FC-10シリーズは、1.0mmピッチFFCコネクタです。

2. LIF構造のため、½操½で挿入できます。

3. SMTタイプ、DIPタイプ、上接点、下接点と各種

レパートリーを取揃えております。

■ 仕様

1. 定格電圧電流

2. 接触抵抗

3. 絶縁抵抗

4. 耐電圧

5. ½用温度範囲

AC／DC 50V 0.5A以下

30mΩ以下

DC500V 1000MΩ以上

AC500V 1分間

−25℃∼＋70℃

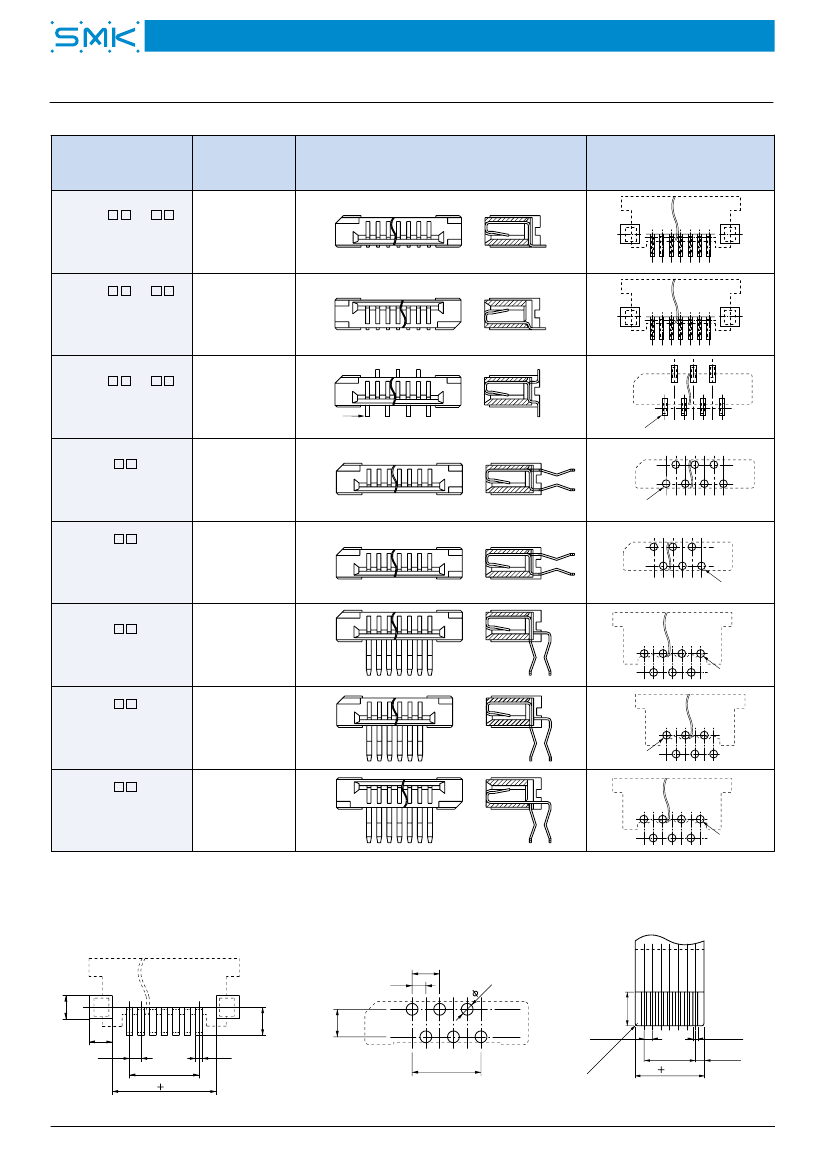

1.0

3.3

2.0

No. of Pins

04.0

05.0

06.0

07.0

08.0

09.0

10.0

11.0

12.0

13.0

14.0

15.0

16.0

No. of Pins

17.0

18.0

19.0

20.0

21.0

22.0

23.0

24.0

25.0

26.0

27.0

28.0

29.0

■ 材質・表面処理

ハウジング

コンタクト

ポリフェニレンサルファイド

原色 94V-0

リン青銅半田めっき

■ 特記

エンボスの有無については別途ご相談下さい。

××

Packing Style pcs/reel

Embossed Taping

Pack in Bulk

1000

―

5.5
