CJ3150-59: DescriptionCABLE TERMINATED, FEMALE, BNC, TRIAXIAL CONNECTOR, CRIMP, JACK; CategoryThe connector The connector; File Size67KB，1 Pages; ManufacturerVertiv

Download Datasheet Parametric View All

CJ3150-59 Overview

CABLE TERMINATED, FEMALE, BNC, TRIAXIAL CONNECTOR, CRIMP, JACK

CJ3150-59 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STANDARD: MIL-C-49142
Body/casing type	JACK
Connector type	RF TRIAXIAL-BNC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	YES
Manufacturer's serial number	3150
Installation method	STRAIGHT
Installation type	CABLE
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP
Base Number Matches	1

Preview

Download Datasheet

View All

15

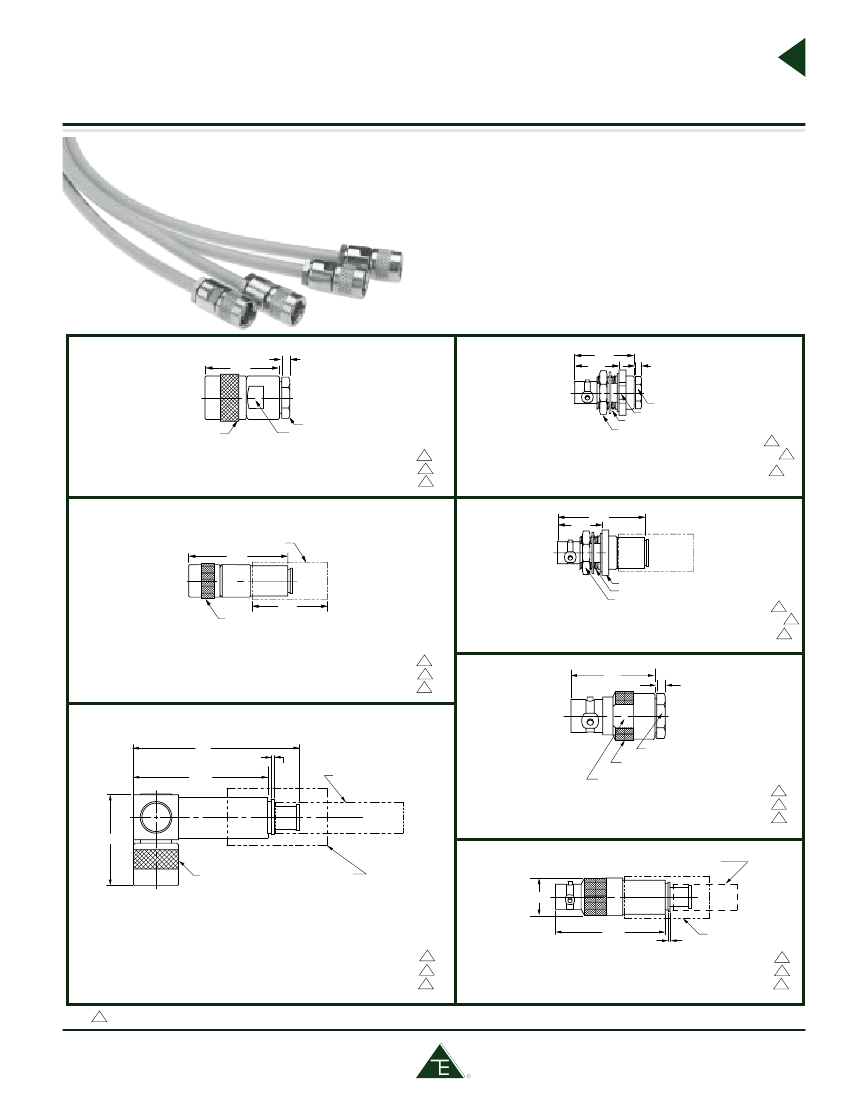

Subminiature jacks & plugs 150/3150 series trs/ttm

Subminiature Jacks & Plugs...

Subminiature concentric twinax/triax connectors increase

packing density up to 246%. Designed for high density

applications where digital, video pair, or baseband "noise

free guarded" circuits are required. The 3-lug, 4-lug, and

threaded versions improve mechanical stability and pro-

vide "error-free" redundant data bus capability. The wrench

crimp version accommodate cables with other jacket diam-

eters up to .215" and the tool crimp versions up to .250".

PL155-29 Shown

BJ159-29 Shown

.080

.748

.790

.590

.080

.460 DIA MAX

.375 HEX NUT

.375 WRENCH FLATS

.375 HEX NUT

.562 HEX

.4375-28UNEF-2A

.500 HEX NUT

Cable Plug

Wrench Crimp

3-lug

4-lug

Threaded

PL155-

PL155FL-

PL3155-

1

Bulkhead Jack

3-lug

Rear mount, Wrench Crimp

4-lug

Threaded

Mounting Hole:

D4.125

1.164

.590

BJ159-

1

BJ159FL-

BJ3159-

1

PL155AC-207 Shown

STRAIN RELIEF

,,,

1.322

STRAIN

RELIEF

.600 DIA

.4375-28UNEF-2A

.500 HEX

1.00

.484 DIA MAX OVER KNURL

Bulkhead Jack

Rear mount, Tool Crimp

Mounting Hole: D4.125

3-lug

4-lug

Threaded

BJ159AC-

1

BJ159ACFL-

1

BJ3159AC-

1

Cable Plug

Tool Crimp

3-lug

4-lug

Threaded

PL155AC-

PL155ACFL-

PL3155AC-

1

CJ150-29 Shown

.790

,,,,

.080

PLR3155AC-201 Shown

1.77

MAX

.030

1.317

.375 HEX NUT

SHRINKABLE

SEALING SLEEVE

(LONG)

.375 WRENCH FLATS

.484 DIA MAX

Cable Jack

Wrench Crimp

.933

CJ150AC-207 Shown

.484 DIA MAX

OVER KNURL

CLEAR, 175°C

SHRINKABLE

STRAIN RELIEF

3-lug

4-lug

Threaded

CJ150-

CJ150FL-

CJ3150-

1

SHRINKABLE SEALING SLEEVE (LONG)

.34

Right Angle

Cable Plug

Tool Crimp

3-lug

4-lug

Threaded

1

,,,,

1.289

.030

SHRINKABLE

STRAIN RELIEF

PLR155AC-

PLR155ACFL-

PLR3155AC-

1

Cable Jack

Tool Crimp

3-lug

4-lug

Threaded

CJ150AC-

CJ150ACFL-

CJ3150AC-

1

- Refers to Cable Group Table see pages 68-88. "D" mounting holes see page 45.
