NBXDBB017 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> The embedded processor and controller> NBXDBB017

NBXDBB017: Description312.5 MHz, OTHER CLOCK GENERATOR, CDSO6; Categorysemiconductor The embedded processor and controller; File Size128KB，8 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn

Download Datasheet Parametric Compare View All

NBXDBB017 Overview

312.5 MHz, OTHER CLOCK GENERATOR, CDSO6

NBXDBB017 Parametric

Parameter Name	Attribute value
Number of functions	1
Number of terminals	6
Maximum operating temperature	85 Cel
Minimum operating temperature	-40 Cel
Maximum supply/operating voltage	3.63 V
Minimum supply/operating voltage	2.97 V
Rated supply voltage	3.3 V
Processing package description	7 × 5 MM, 2.54 MM PITCH, ROHS COMPLIANT, HERMETIC SEALED, 陶瓷, LCC-6
state	ACTIVE
packaging shape	Rectangle
Package Size	SMALL OUTLINE
surface mount	Yes
Terminal form	NO
Terminal spacing	2.54 mm
Terminal location	pair
Packaging Materials	Ceramic, Metal-SEALED COFIRED
Temperature level	INDUSTRIAL
Microprocessor type	Other clock generators
Maximum FCLK output frequency	312 MHz

Preview

Download Datasheet

View All

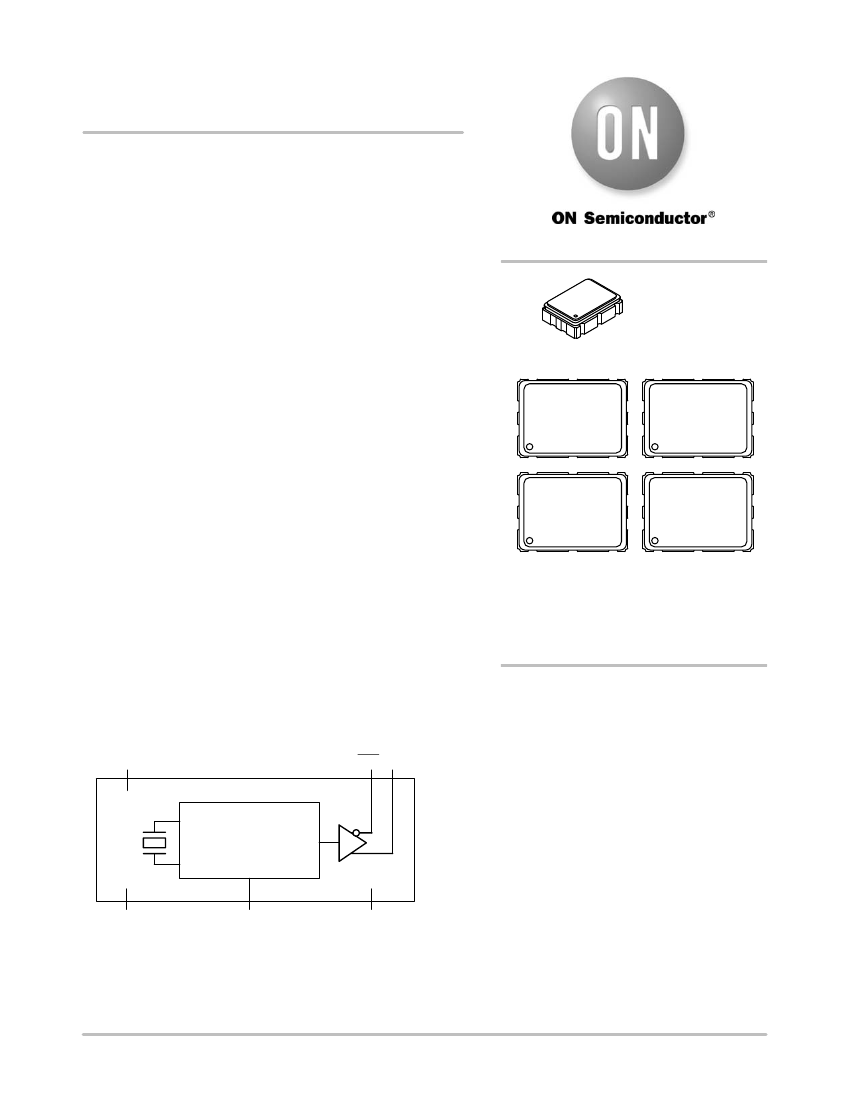

NBXDBB017, NBXDBA017,

NBXHBA017, NBXSBA017

3.3 V, 156.25 MHz /

312.5 MHz LVPECL Clock

Oscillator

The single and dual frequency crystal oscillator (XO) is designed to

meet today’s requirements for 3.3 V LVPECL clock generation

applications. The device uses a high Q fundamental crystal and Phase

Lock Loop (PLL) multiplier to provide selectable 156.25 MHz or

312.5 MHz, ultra low jitter and phase noise LVPECL differential

output.

This device is a member of ON Semiconductor’s PureEdget clock

family that provides accurate and precision clock solutions.

Available in 5 mm x 7 mm SMD (CLCC) package on 16 mm tape

and reel in quantities of 1,000. Frequency stability options available as

either 50 PPM NBXDBA017, NBXSBA017, NBXHBA017

(Industrial Temperature Range) or 20 PPM NBXDBB017

(Commercial Temperature Range).

Features

http://onsemi.com

6 PIN CLCC

LN SUFFIX

CASE 848AB

MARKING DIAGRAMS

NBXDBA017

156.25/312.50

AAWLYYWWG

NBXDBB017

156.25/312.50

AAWLYYWWG

•

LVPECL Differential Output

Uses High Q Fundamental Mode Crystal and PLL Multiplier

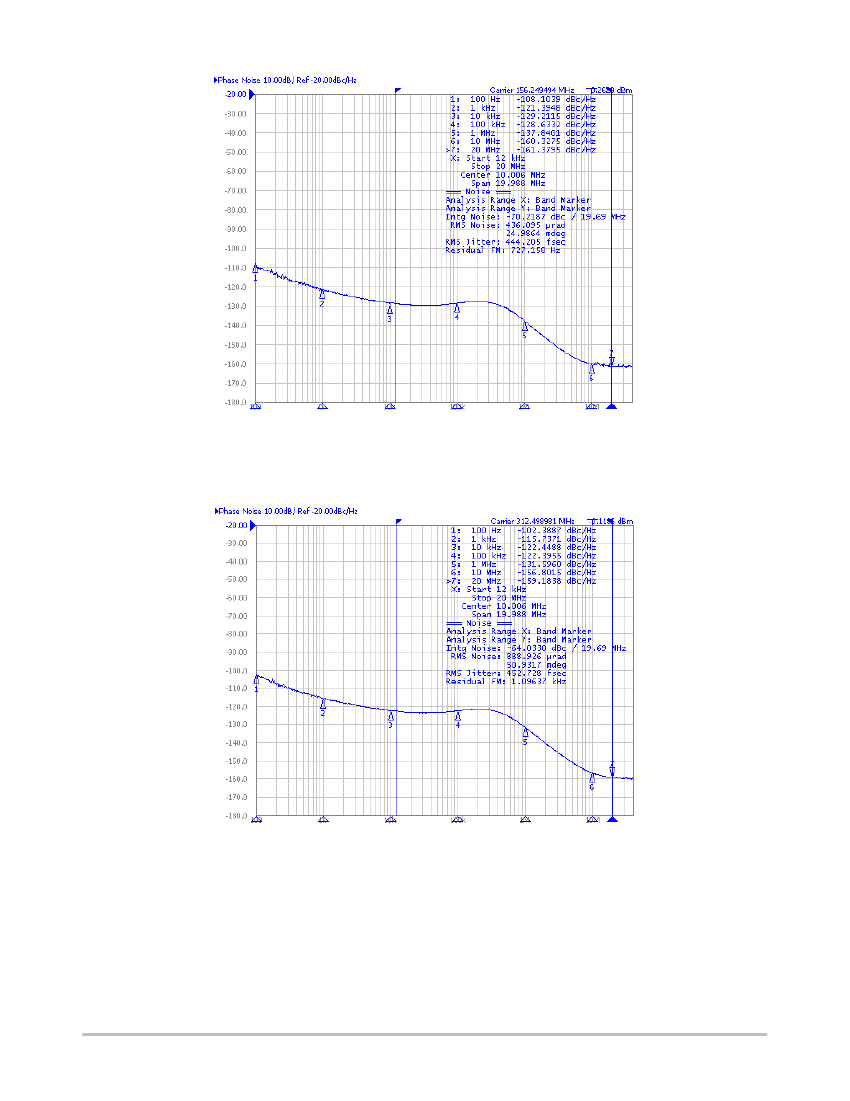

Ultra Low Jitter and Phase Noise

−

0.4 ps (12 kHz

−

20 MHz)

Selectable Output Frequency

−

156.25 MHz (default) / 312.5 MHz

Hermetically Sealed Ceramic SMD Package

RoHS Compliant

Operating Range 3.3 V

±10%

Total Frequency Stability

−

±20

PPM or

±50

PPM

This is a Pb−Free Device

NBXSBA017

312.5

AAWLYYWWG

NBXHBA017

156.25

AAWLYYWWG

156.25/312.5

= Output Frequency (MHz)

= Assembly Location

= Wafer Lot

= Year

= Work Week

= Pb−Free Package

Applications

•

Networking

•

10 Gigabit Ethernet

CLK CLK

5 4

ORDERING INFORMATION

See detailed ordering and shipping information in the package

dimensions section on page 7 of this data sheet.

Crystal

PLL

Clock

Multiplier

FSEL/NC*

GND

Figure 1. Simplified Logic Diagram

* NBXSBA017 and NBXHBA017 only

Semiconductor Components Industries, LLC, 2009

October, 2009

−

Rev. 3

Publication Order Number:

NBXDBB017/D

NBXDBB017 Related Products

	NBXDBB017	NBXDBA017	NBXHBA017	NBXSBA017
Description	312.5 MHz, OTHER CLOCK GENERATOR, CDSO6	312.5 MHz, OTHER CLOCK GENERATOR, CDSO6	312.5 MHz, OTHER CLOCK GENERATOR, CDSO6	312.5 MHz, OTHER CLOCK GENERATOR, CDSO6
Number of functions	1	1	1	1
Number of terminals	6	6	6	6
Maximum operating temperature	85 Cel	85 Cel	85 Cel	85 Cel
Minimum operating temperature	-40 Cel	-40 Cel	-40 Cel	-40 Cel
Maximum supply/operating voltage	3.63 V	3.63 V	3.63 V	3.63 V
Minimum supply/operating voltage	2.97 V	2.97 V	2.97 V	2.97 V
Rated supply voltage	3.3 V	3.3 V	3.3 V	3.3 V
Processing package description	7 × 5 MM, 2.54 MM PITCH, ROHS COMPLIANT, HERMETIC SEALED, 陶瓷, LCC-6	7 × 5 MM, 2.54 MM PITCH, ROHS COMPLIANT, HERMETIC SEALED, 陶瓷, LCC-6	7 × 5 MM, 2.54 MM PITCH, ROHS COMPLIANT, HERMETIC SEALED, 陶瓷, LCC-6	7 × 5 MM, 2.54 MM PITCH, ROHS COMPLIANT, HERMETIC SEALED, 陶瓷, LCC-6
state	ACTIVE	ACTIVE	ACTIVE	ACTIVE
packaging shape	Rectangle	Rectangle	Rectangle	Rectangle
Package Size	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
surface mount	Yes	Yes	Yes	Yes
Terminal form	NO	NO	NO	NO
Terminal spacing	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	pair	pair	pair	pair
Packaging Materials	Ceramic, Metal-SEALED COFIRED	Ceramic, Metal-SEALED COFIRED	Ceramic, Metal-SEALED COFIRED	Ceramic, Metal-SEALED COFIRED
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Microprocessor type	Other clock generators	Other clock generators	Other clock generators	Other clock generators
Maximum FCLK output frequency	312 MHz	312 MHz	312 MHz	312 MHz
