Preset counters electronic
2 presets, meter counters PTB approved
Display LED, 8-digits, programmable

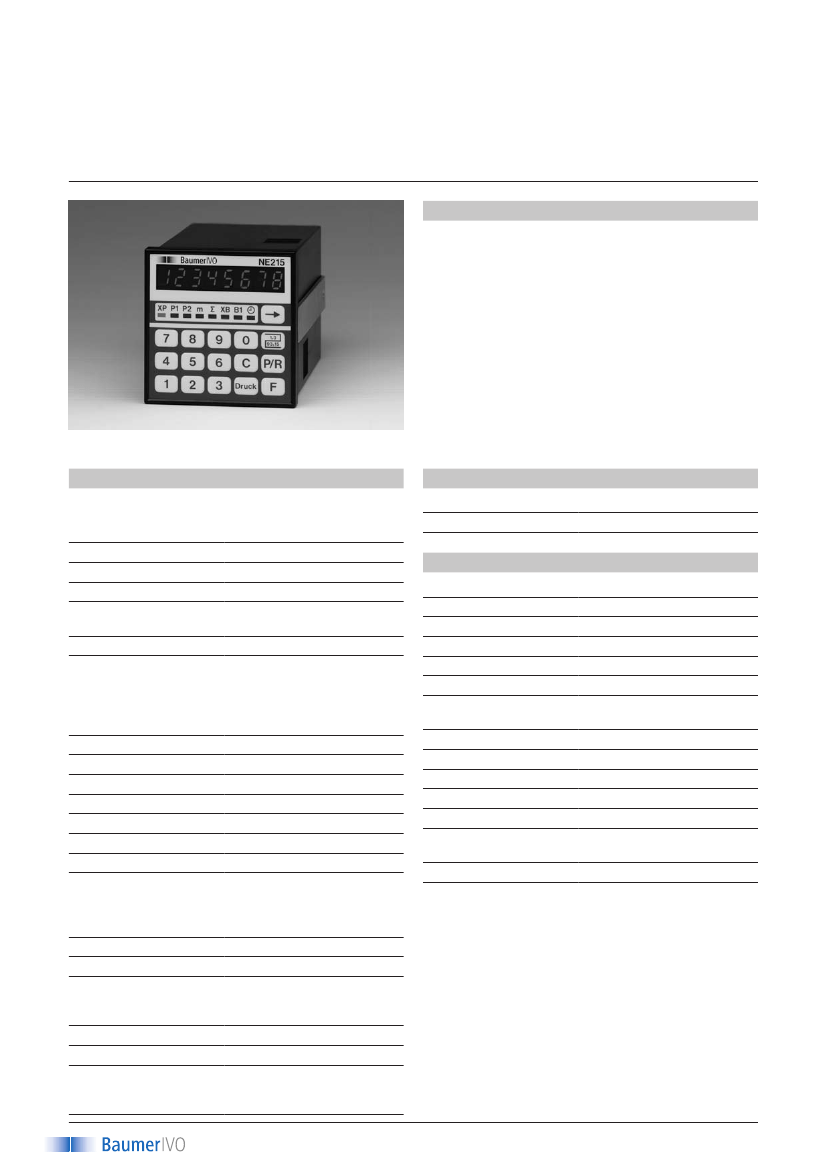

NE215
Features
– PTB Meter counter with two presets
– Display 8-digits
– Batch counter, totalizer, hour conter
– Measurements in cm and mm
– Connection: PTB encoder
– Batch counter with preset and multiplier
– Interface RS232 or RS422/RS485
NE215 - PTB Preset counter
Technical data - electrical ratings
Voltage supply
85...265 VAC (50/60 Hz)
24/48 VAC ±10 % (50/60 Hz)
24 VDC ±10 %
7 VA, 6 W
12...26 VDC / max. 80 mA
LED, 7-segment display
6-digits (totalizer)
8-digits (preset counter)
7.6 mm
Preset counter
Main counter with 2 presets
Batch counter with 1 preset
Totalizer
Hour counter
0.0001...9999.99
1...999
A 90° B phase evaluation
Approx. 10 kHz
Step preset
>10 years in EEPROM
Button, electric or automatic
Potential-free change-over
contact for main counter
Normally open/closed potential-
free for B1
0.01...99.99 s
RS232, RS485
Protection class II
Overvoltage category II
Pollution degree 2
DIN EN 61000-6-3
DIN EN 61000-6-2
Scaling factor
Sensor logic
Printer trigger
1
www.baumerivo.com
Technical data - electrical ratings
PTB approval
Approvals
1.3 / 93.15
UL/cUL, CE conform
Power consumption
Sensor supply
Display
Number of digits
Digit height
Function
Technical data - mechanical design
Operating temperature
Storing temperature
Relative humidity
E-connection
Core cross-section
Protection DIN EN 60529
Operation / keypad
Housing type
Dimensions W x H x L
Installation depth
Mounting
Cutout dimensions
Materials
Weight approx.
0...+50 °C
-20...+70 °C
80 % non-condensing
Plug-in screw terminals
1.5 mm²
IP 65 face with seal
10 figure keypad with 5 function
keys
Built-in housing
105 mm
Clip frame
68 x 68 mm (+0.7)
Housing: Makrolon 6485 (PC)
Keypad: Polyester
450 g (AC), 320 g (DC)
Subject to modification in technic and design. Errors and omissions excepted.
30/10/2008
Scaling factor
Multitplier / batch counter
Count mode
Counting frequency
Operating mode
Data memory
Reset
Outputs relay
72 x 72 x 105 mm
Output holding time
Interfaces
Standard
DIN EN 61010-1
Emitted interference
Interference immunity
Programmable
parameters
2 presets, meter counters PTB approved
Display LED, 8-digits, programmable
Preset counters electronic
NE215
Connection diagram
22
21
20
19 18
17
16 15
14
13
12
Block circuit diagram
Voltage
supply
-
+
B1 counter
2
3
Totalizer
Sensor
supply
-
19
20
+
T,R+
NPN Br. 18-20
PNP Br. 18-19
Scaling on
B1-reset
T,R-
+24V 0V
Sensor
supply
XP-reset
B
A
Count
A
B
XP-reset
12
13
14
15
A 90° B
Count
Output
4
Main counter with
2 presets
and scaling factor
5
6
7
8
9
Batch counter as
preselection counter
or tachometer with
1 preset
multiplier
Operating time meter
P2
P1
RS485
max. 265 V
terminal - terminal
- terminal
Scaling on
11
10
9
8
7
6
5
4
3
2
1
Supply voltage
B1-counter
B1-reset
Coding for
input logic
NPN Br. 18-20
PNP Br. 18-19
T,R-
T,R+
16
17
10
11
B1
B1
P2
Output
P1
18
26 25
24
23
21
22
Interface
RS485
GND
RxD
TxD
TxD
RS232
RxD
GND
23
25
26
Interface
RS232
Trigger level
Optocoupler inputs
Control inputs
Count input
Trigger current
Switch-off current
Input resistance
Reset input
Switch-off current
Input resistance
Relay outputs
Switching voltage max.
Switching current max.
Switching capacity max.
Relay responding time
<0.5 mA
3.3 kΩ
Output circuit
250 VAC / 110 VDC
1A
150 VA / 30 W
5 ms
Subject to modification in technic and design. Errors and omissions excepted.
30/10/2008
Input circuit
PNP- / NPN-logic
9...16 mA
<0.5 mA
1.65 kΩ
5...8 mA
Trigger current
Electronical outputs
Output circuit
PNP-switching transistor Open collector
Switching voltage
Switching current max.
24 VDC ±20 %
10 mA (AC)
50 mA (DC)
35 V
50 mA
NPN-switching transistor Open collector
Switching voltage max.
Switching current max.
2
www.baumerivo.com
Preset counters electronic
2 presets, meter counters PTB approved
Display LED, 8-digits, programmable
NE215
Part number
NE215.
1
AX0
Display
In cm, 9999.99
50 pulses/rev.
w/o interface/RS232
In mm, 999.999
500 pulses/rev.
w/o interface/RS232
In cm, 9999.99
50 pulses/rev.
at RS232/RS485
In cm, 999.999
500 pulses/rev.
at RS232/RS485
5
6
7
8
Voltage supply
1
24 / 48 VAC
2
85...265 VAC
3
24 VDC
Outputs
1
Relay outputs, B1 normally closed
Interface
0
Without interface
1
RS232
2
RS232/RS485
Dimensions
108
72
105
Subject to modification in technic and design. Errors and omissions excepted.
30/10/2008
72
67.7
18.5
1-6
7
3
www.baumerivo.com
2 presets, meter counters PTB approved
Display LED, 8-digits, programmable
Preset counters electronic
NE215
4
www.baumerivo.com
30/10/2008
Subject to modification in technic and design. Errors and omissions excepted.
Microcontroller MCU
