NJU7071/72/74
LOW INPUT OFFSET VOLTAGE C-MOS OPERATIONAL AMPLIFIER
■
GENERAL DESCRIPTION
The NJU7071,72 and 74 are single, dual and quad C-MOS
Operational Amplifiers operated on a single-power-supply and
low operating current.
The input offset voltage is lower than 2mV,and the input bias
current is as low as less than 1pA,consequently the very small
single around the ground level can be amplified.
The minimum operating voltage is 5V and the output stage
permits output signal to swing between both of the supply rails.
Furthermore, the operating current is also as low as 0.6mA
( typ. ) per circuit, therefore it can be applied especially to
battery-operated items.
■
FEATURES
●
Single-Power-Supply
●
Low Input Offset Voltage
( V
IO
=2mV max )
●
Wide Operating Voltage
( V
DD
=5~16V )
●
Wide Output Swing Range
( V
OM
≥9.98V
typ. @ V
DD
=10V )
●
Low Operating Current
( 0.6mA/circuit typ. )
●
Low Bias Current
( I
IB
=1pA typ. )
●
Internal Compensation Capacitor
●
External Offset Null Adjustment ( Only NJU7071 )
●
Package Outline
DIP/DMP/SSOP8 ( NJU7071 )
DIP/DMP8 ( NJU7072 )
DIP/DMP/SSOP14 ( NJU7074 )
●
C-MOS Technology
■

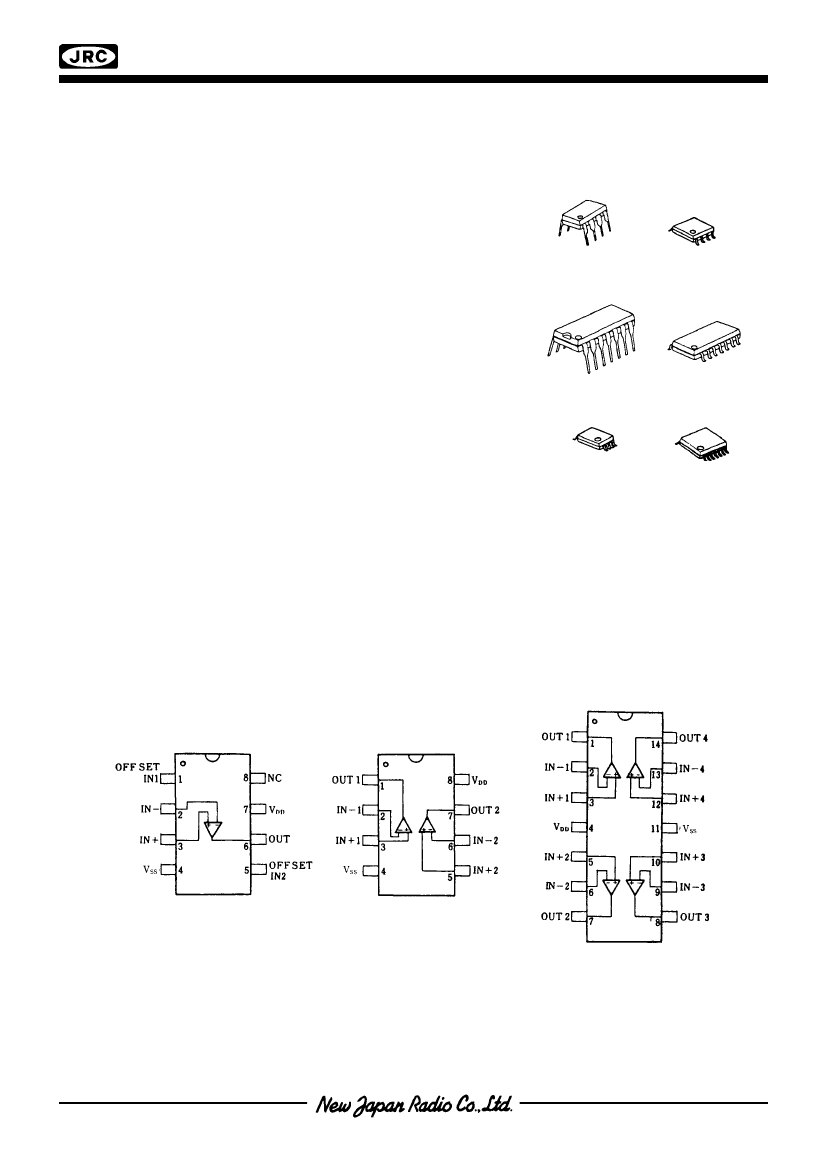

PIN CONFIGURATION
■
PACKAGE OUTLINE
NJU7071D
NJU7072D
NJU7071M
NJU7072M
NJU7074D
NJU7074M
NJU7071V
NJU7074V
NJU7071D
NJU7071M
NJU7071V
NJU7072D
NJU7072M
NJU7074D
NJU7074M
NJU7074V
Ver.2003-03-18
-1-
NJU7071/72/74
■
ABSOLUTE MAXIMUM RATINGS
( Ta=25˚C )
PARAMETER
Supply Voltage
Differential Input Voltage
Common Mode Input Voltage
Power Dissipation
SYMBOL
V
DD
V
ID
V
IC
P
D
T
opr
T
stg
RATINGS
18
± 18 ( note1 )
-0.3~18
( DIP8 ) 500
( DIP14 ) 700
( DMP8,14 ) 300
( SSOP8 ) 250
( SSOP14 ) 300
-20~+75
-40~+125
UNIT
V
V
mA
mW
Operating Temperature Range
Storage Temperature Range
˚C
˚C
( note1 ) If the supply voltage ( V
DD
) is less than 18V, the input voltage must not over the V
DD
level though 18V is limit specified.
■
ELECTRICAL CHARACTERISTICS
( Ta=25˚C,V
DD
=10V,R
L
=∞ )
PARAMETER
Input Offset Voltage
Input Offset Current
Input Bias Current
Input Impedance
Large Signal Voltage Gain
Input Common Mode Voltage Range
Maximum Output Swing Voltage
Common Mode Rejection Ratio
Supply Voltage Rejection Ratio
Operating Current/Circuit
Slew Rate
Unity Gain Bandwidth
SYMBOL
V
IO
I
IO
I
IB
R
IN
A
V
V
ICM
V
OM
CMR
SVR
I
DD
SR
F
t
TEST CONDITION
R
S
=50Ω
MIN.
-
-
-
-
80
0~9
9.80
60
60
-
-
-
TYP.
-
1
1
1
95
-
9.98
75
75
0.6
1.1
1.0
MAX.
2
-
-
-
-
-
-
-
-
1.2
-
-
UNIT
mV
pA
pA
TΩ
dB
V
V
dB
dB
mA
V/µs
MHz
R
L
=1MΩ
A
V
=40dB,C
L
=10pF
■
OFFSET ADJUSTMENT CIRCUIT
( Only For NJU7071 )
[CAUTION]
The specifications on this databook are only
given for information , without any guarantee
as regards either mistakes or omissions. The
application circuits in this databook are
described only to show representative usages
of the product and not intended for the
guarantee or permission of any right including
the industrial rights.
Ver.2003-03-18
-3-
